Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 237
Appendix F MicroLogix 1400 Distributed Network Protocol
Data-Set Prototypes Configuration Parameters

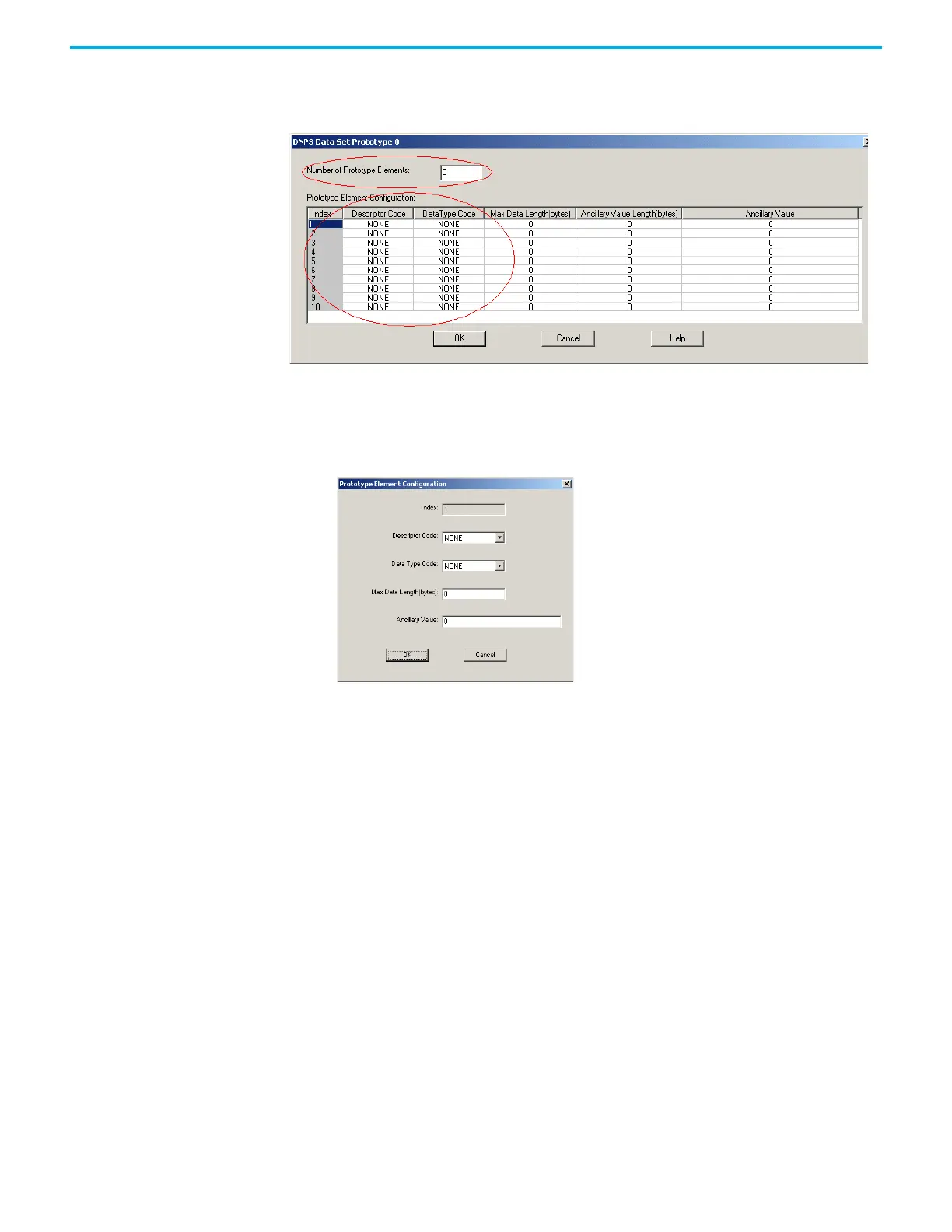

These parameters are used to construct Data-Set Prototypes object.
Number of Prototypes Elements: 0…10. This must be the same as the number
of the Prototype elements that are configured.
Prototype Element Configuration: Each Prototypes element is configured in
this configuration. Double-click an element to edit it.
Descriptor Code: UUID for element 1. NSPC/NAME/DAEL for element 2 or
higher.
Data Type Code: NONE for element 1. NONE/VSTR/UINT/INT/FLT/OSTR/
BSTR/TIME for element 2 or higher.
Max Data Length (bytes): 0 for element 1. 0…255 for element 2 or higher.
Ancillary Value: Binary Array in hexadecimal for element 1. ASCII strings for
element 2 or higher. Maximum 32 bytes.
