Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 119
Chapter 6 Configure and Start up the Kinetix 5300 Drive System
9. From the Motor Type pull-down menu, choose Rotary Induction.
10. From the motor nameplate or datasheet, enter the phase-to-phase values
for your motor.
For a motor nameplate/datasheet example, see Motor Category
on
page 212. Also, see Motor Nameplate Datasheet Entry for Custom Motor
Applications, publication 2198-AT002.
11. Click Apply.
Basic Volts/Hertz Method
1. Configure the General category and Motor category as shown in General
and Motor Categories on page 118.
2. Select the Frequency Control category.

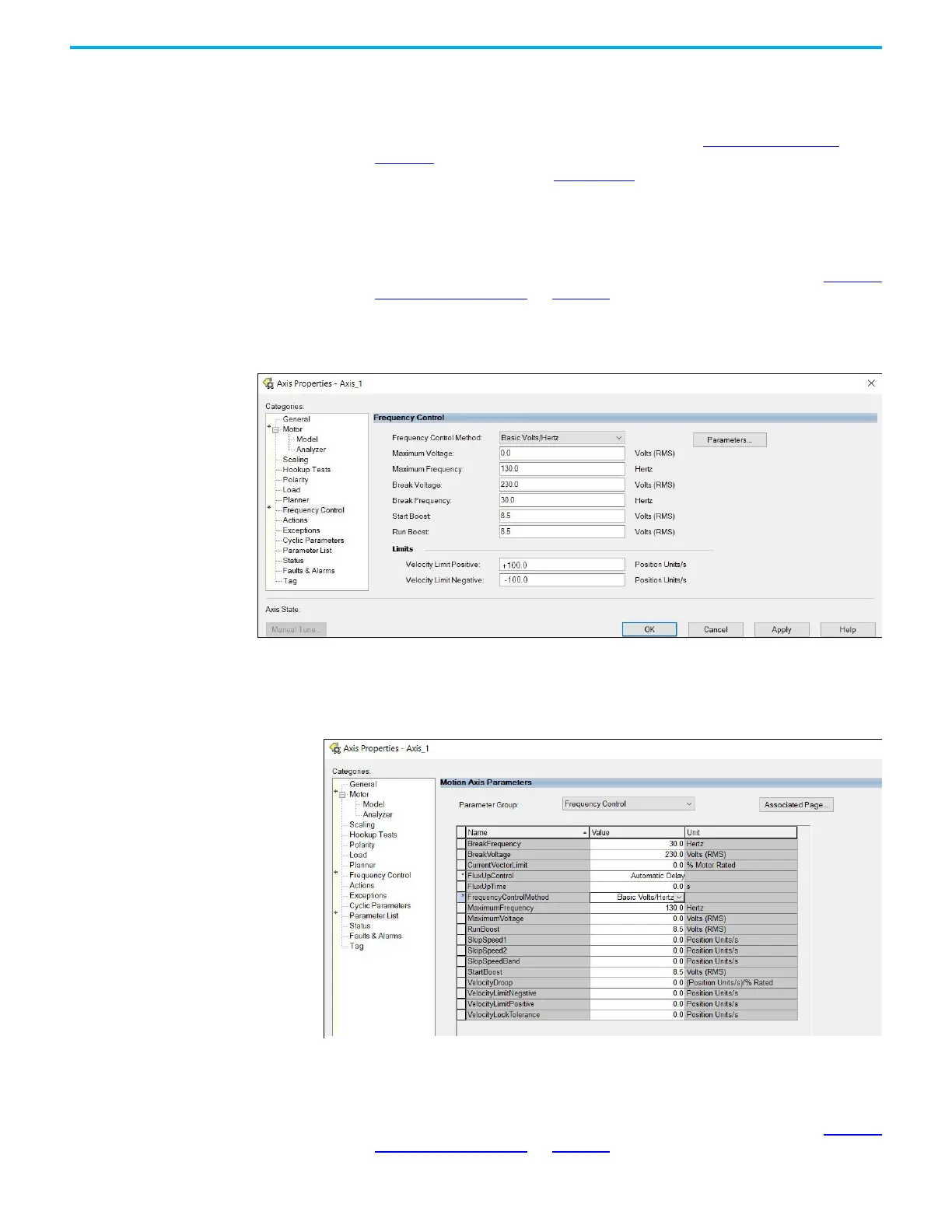

3. From the Frequency Control Method pull-down menu, select Basic Volts/
Hertz.
4. Enter the Basic Volts/Hertz attribute values appropriate for your
application.
Default values are shown.
5. Click Apply.
6. Click OK.
Sensorless Vector Method
1. Configure the General category and Motor category as shown in General
and Motor Categories on page 118.
