Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 39
Chapter 2 Plan the Kinetix 5300 Drive System Installation
External Passive Shunt Resistor
Observe these guidelines when mounting your Bulletin 2097 or Bulletin 2198
external passive-shunt resistor outside of the enclosure:
• Mount shunt resistor and wiring in the very dirty zone or in an external
shielded enclosure.
• Mount resistors in a shielded and ventilated enclosure outside of the
cabinet.
• Keep unshielded wiring as short as possible. Keep shunt wiring as flat to
the cabinet as possible.

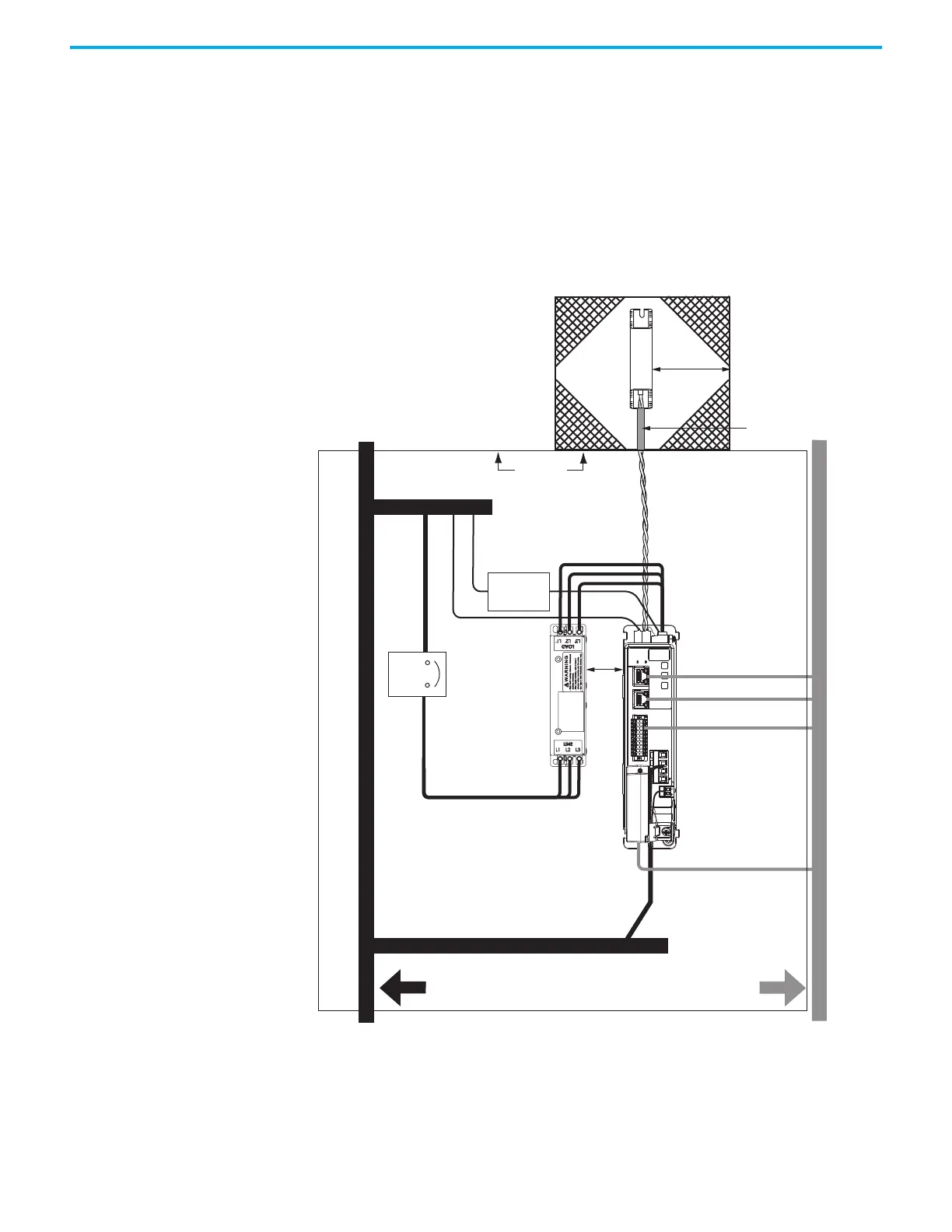

Figure 15 - External Shunt Resistor Outside the Enclosure
C
D
D
VD
D
D
C
VD
MBRK
W
V
U
1
10
1
2
MFB
D
50 mm
(1.97 in.)
Dirty Wireway
Clean Wireway
Motor Power Cables
Very Dirty Connections Segregated (not
in wireway)
Customer-supplied
Metal Enclosure
150 mm (6.0 in.)
clearance (min) on all four sides
of the shunt resistor.
Enclosure
Metal Conduit (where required
by local code)
No sensitive equipment
within
150 mm (6.0 in.).
Shunt Power Wiring Methods:
Twisted pair in conduit (1st choice).
Twisted pair, two twists per foot (min) (2nd choice).
Circuit
Protection
Route single motor cables
in shielded cable.
Route registration and communication
signals in shielded cables.
24V DC
Power Supply
AC Line Filter
(required for CE)
Hardwired Safety Cable
Motor Feedback Cable
Kinetix 5300
Servo Drive
Ethernet Cable
(shielded)
I/O Cable
To Next Page
