Chapter 5 Connect the Kinetix 5300 Drive System
Follow these steps to prepare your existing 12 and 10 AWG (series A) cables.
1. Remove a total of 325 mm (12.8 in.) of cable jacket from your existing
cable.
This exposes additional cable shield.
2. Remove all but 63.5 mm (2.5 in.) of the shield.
3. Cover 12.5 mm (0.5 in.) of the shield ends and an equal length of the
conductors with 25 mm (1 in.) of electrical tape or heat shrink.
Do the same on the other side of the cable shield. This keeps the shield
ends from fraying and holds the conductors together.
4. Cut the brake conductors back to 163 mm (6.4 in.) and trim the shield
braid at the base of the jacket.
The shield braid covering the brake conductors is not needed.
5. Remove the specified length of insulation from the end of each wire.

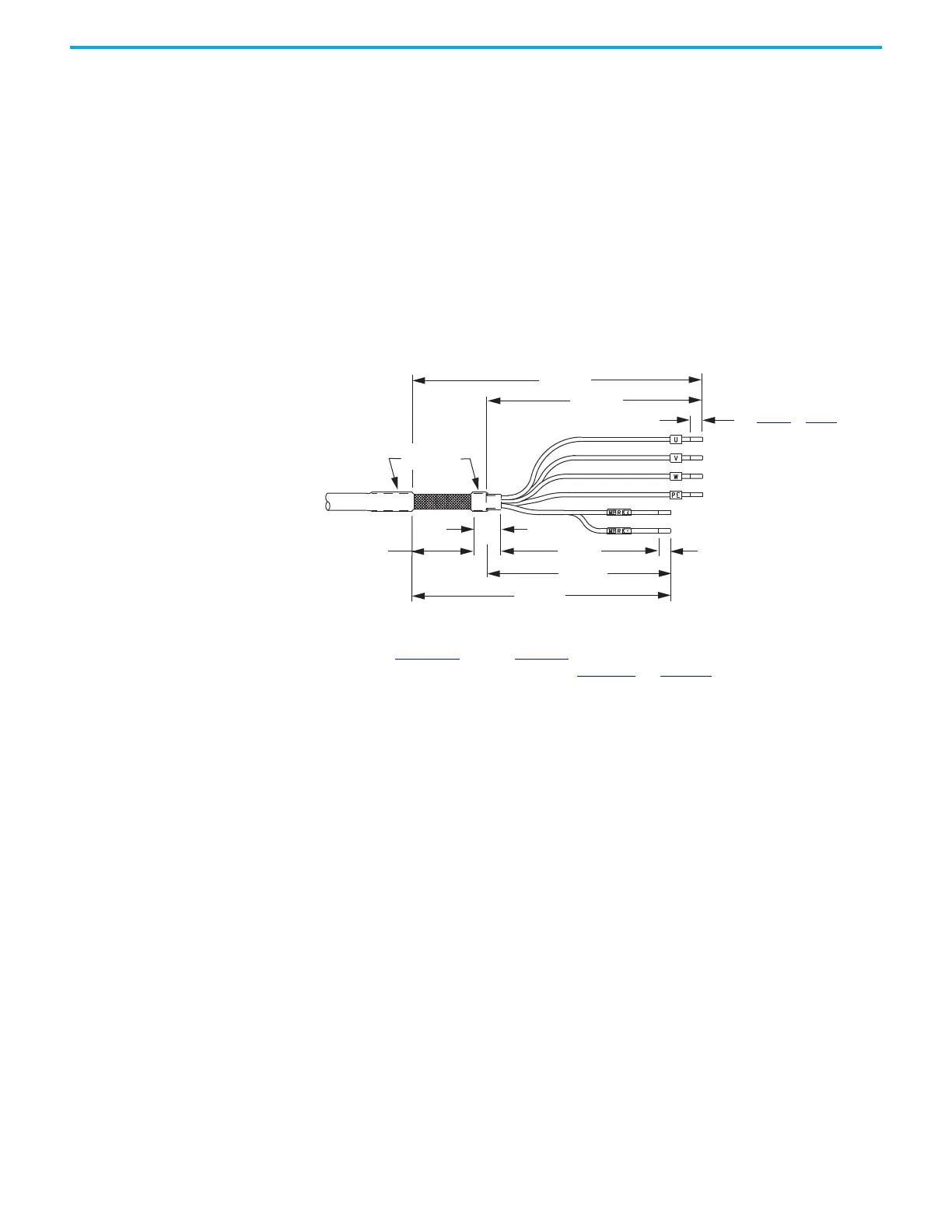

Figure 46 - Power/brake Cable (12 and 10 AWG)
(1) The overall shield braid covering the brake conductors can be removed.
Refer to Figure 48 and on page 88 for a typical installation example. For strip
lengths and torque values, refer to Table 40
on page 79.
7.0 (0.28)
51.0 (2.0)
25.0 (1.0)
221 (8.7)
284 (11.2)
325 (12.8)
262 (10.3)
155 (6.1)
Dimensions are in mm (in.)
Motor Conductors
Brake
Conductors
(1)
Electrical Tape
or Heat Shrink
See Table 40 on page 79 for strip
lengths and torque values.
To Next Page
