10 Publication 2711C-UM001C-EN-P - September 2009
Chapter 1 Overview
PanelView Component C600 and C1000 Terminals
How to Connect Browser
The terminals can be connected to a browser using either a USB port
or an Ethernet network connection. Your computer should have at
least an Intel Pentium M 1400 MHz processor, with 512 MB RAM.
You must enter the IP address of the PanelView Component terminal
into the address field of your browser. You can find the IP address on
the terminal configuration screen under Communications.

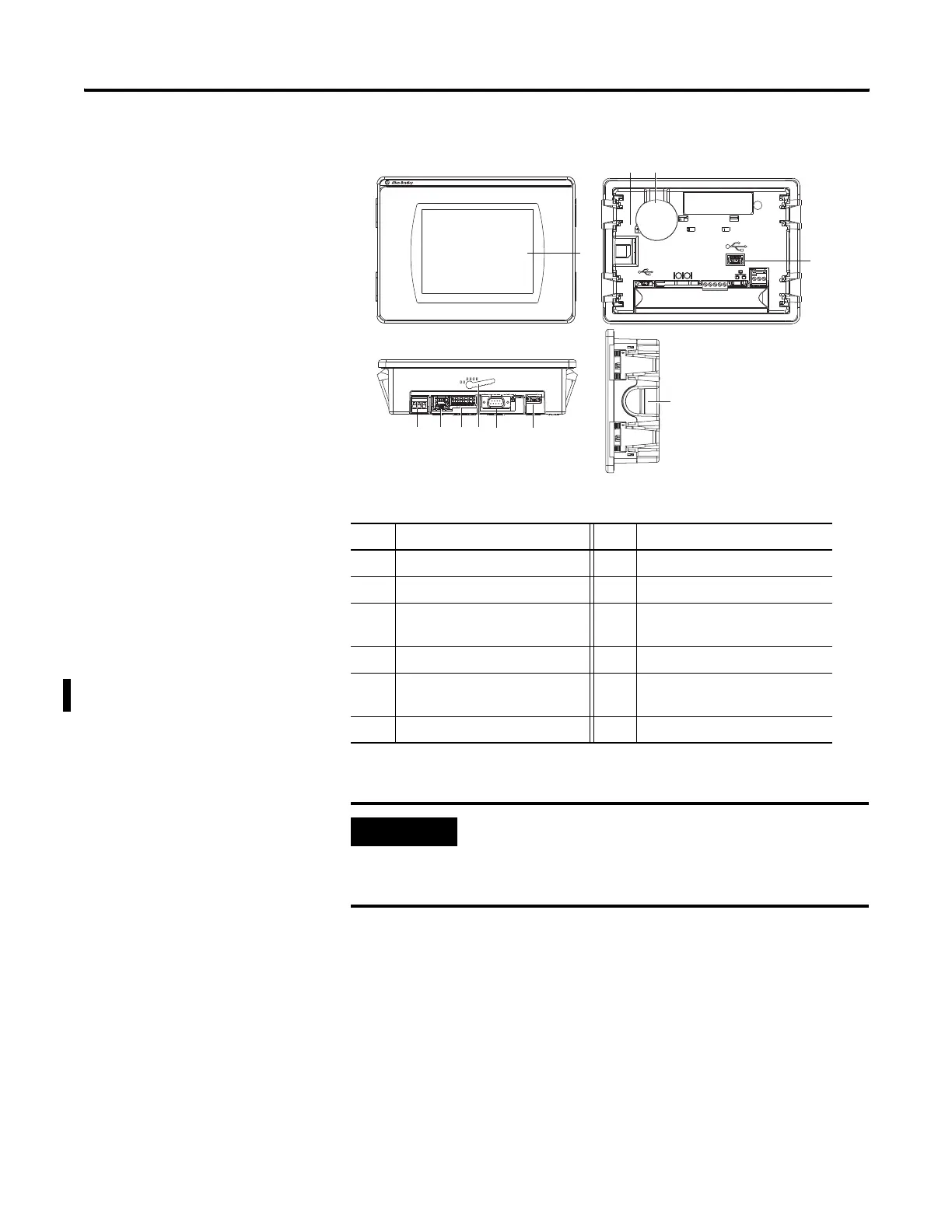

Item Description Item Description
1 Touch display 7 USB device port
2 24V DC power input 8 Diagnostic status indicator
3 10/100 MBit Ethernet port 9 Replaceable real-time clock
battery
4 RS-422 or RS-485 port 10 USB host port
5 Mounting slots (for C600 Series
C only)
11 Secure digital (SD) card slot
6 RS-232 serial port
IMPORTANT
Analog touch screens are intended for single presses at a time.
If the touch screen is pressed in two locations at the same time,
the presses are averaged as a single press in-between the two
locations.
234 6 7
8
1
11
10
9
PanelView C600
FAULT
B
61
T T- R R- S
5
(C600 Series C terminal shown)
