Publication 2711C-UM001C-EN-P - September 2009 59
Cable Connections and Communication Chapter 4
Ethernet Connection
The C600 and C1000 terminals have an Ethernet port that supports:
• communication to a controller.
• connection to a computer for application design.

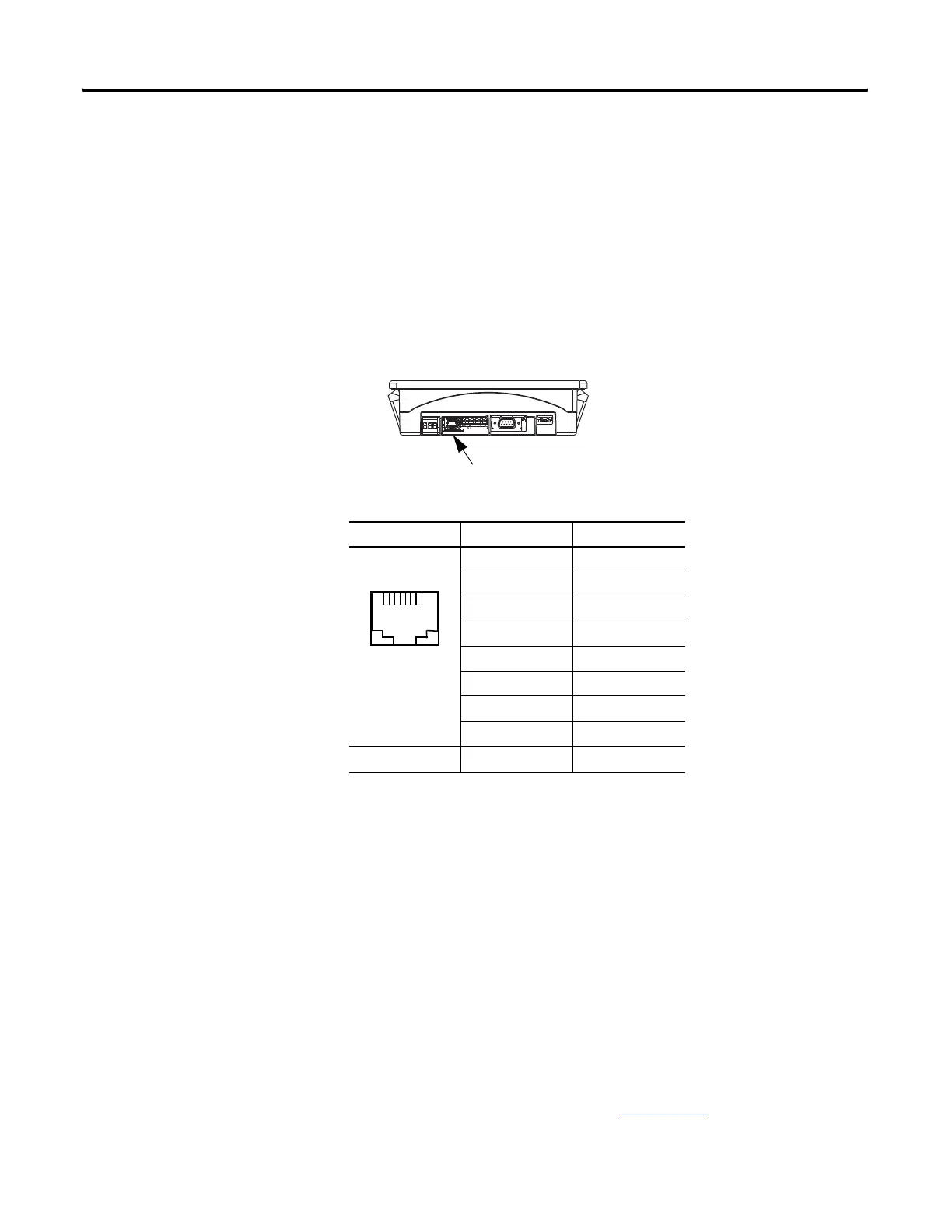

Ethernet Connector
The base-configured unit of the terminals has an RJ45,
10/100 Base-T connector for Ethernet network communication.
Ethernet Connector Pinout
Either a standard Ethernet cable or a crossover cables such as
2711P-CBL-EX04 can be used when connecting directly to a logic
controller or switch.
Cables
The PanelView Component terminals require category 5 twisted-pair
cables. The maximum cable length between the terminal’s Ethernet
port and a 10/100 Base-T port on an Ethernet hub (without repeaters
or fiber) is 100 m (328 ft). In industrial applications, keep the cable
length to a minimum.
For additional information, refer to the EtherNet/IP Media Planning
and Installation Manual, publication ENET-IN001
.
Pin Pin Pin Name
Looking into RJ45
Connector
1TD+
2TD-
3RD+
4NC
5NC
6RD-
7NC
8NC
Shield Connection Chassis Gnd
Ethernet Port
1
