194 Rockwell Automation Publication 2198-UM005C-EN-P - February 2022

Appendix B Upgrade Kinetix 5300 Drive Firmware

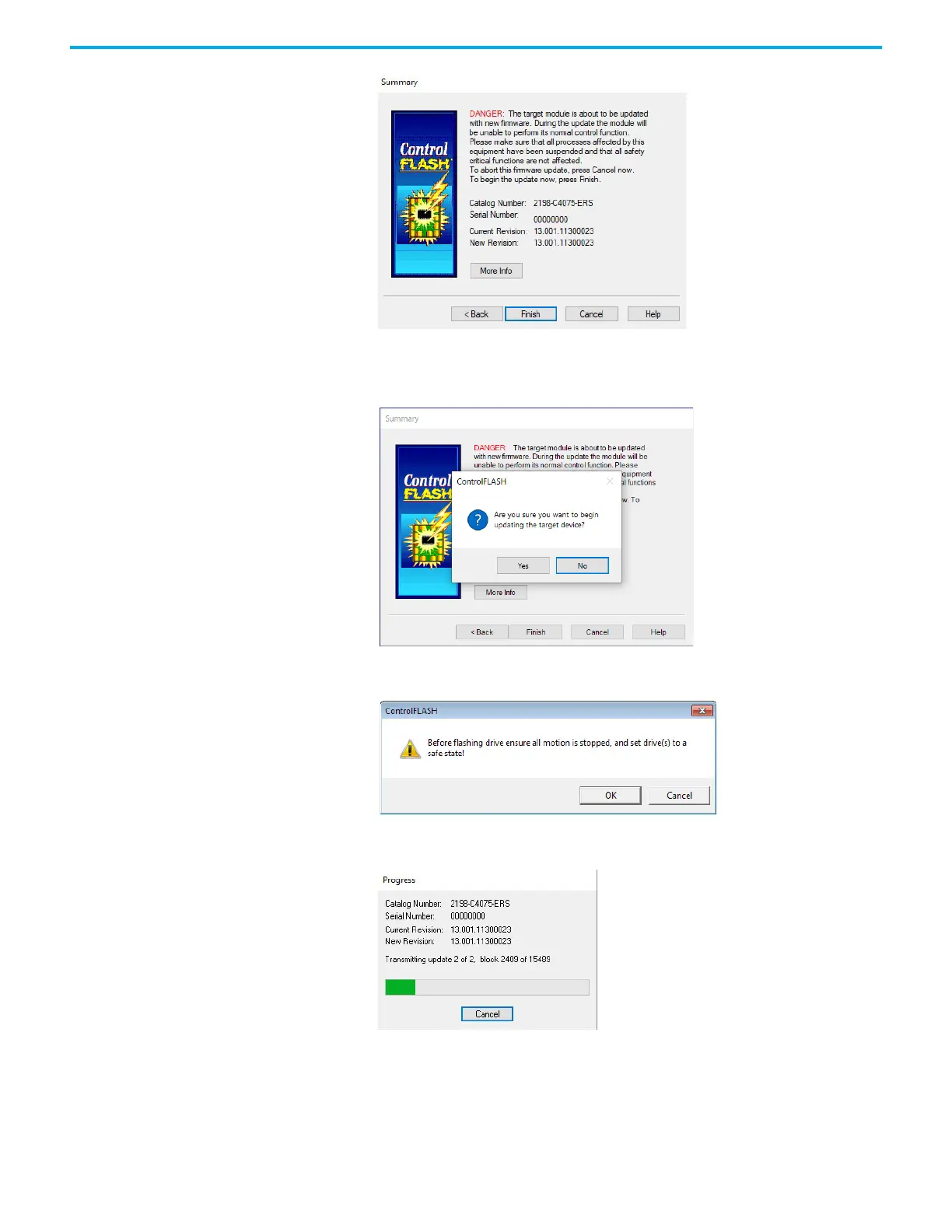

10. Confirm the device catalog number and firmware revision.

11. Click Finish.

This ControlFLASH warning dialog box appears.

12. To complete the update now, click Yes.

This ControlFLASH warning dialog box appears.

13. Acknowledge the warning and click OK.

The Progress dialog box appears and updating begins.
