Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 101
Chapter 6 Micro870 Controller Distributed Network Protocol

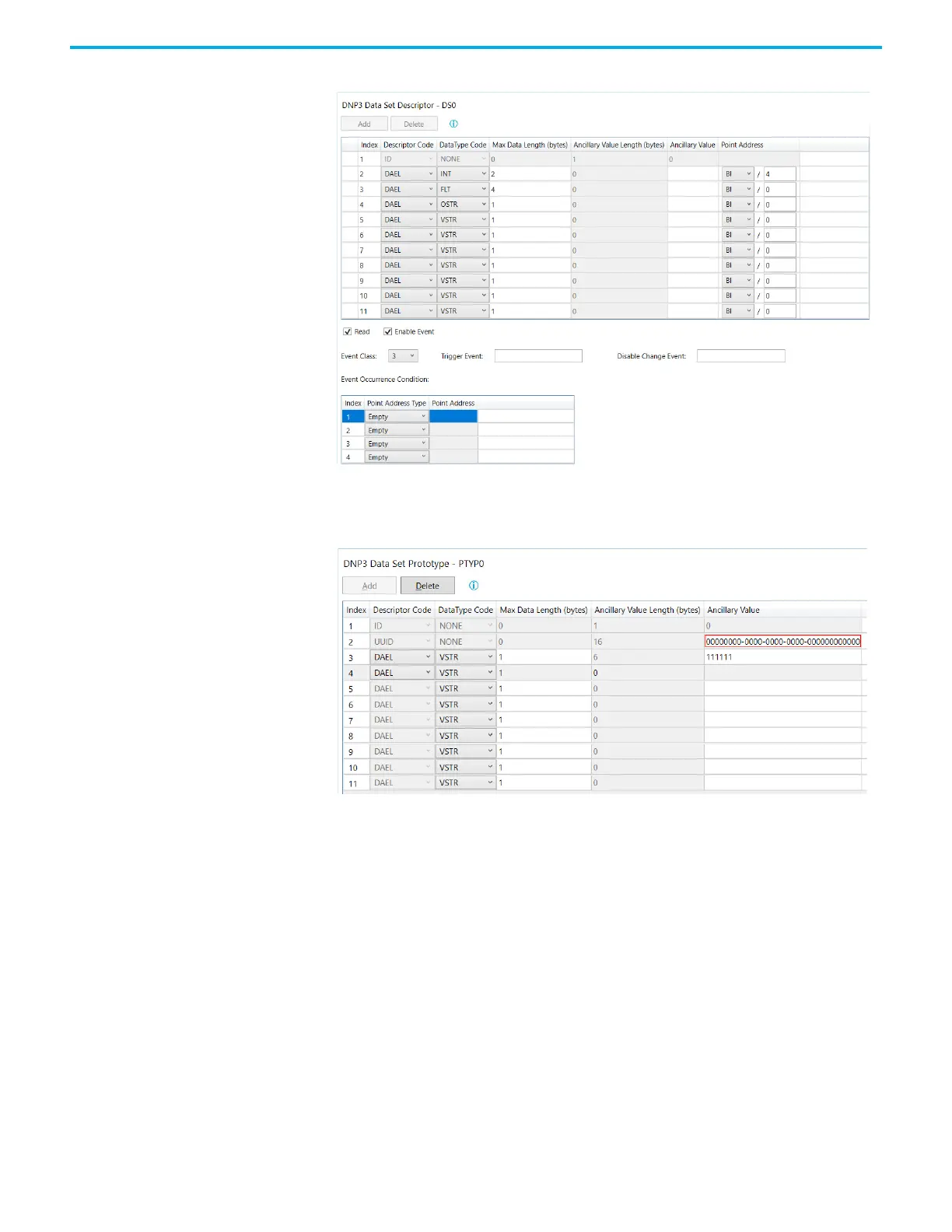

For DNP3 DSX, you can configure the controller to construct the Data Set Descriptor objects.
Data Set Prototypes Configuration Parameters
These parameters are used to construct Data Set Prototypes object.
You can add or delete the index in each PTYPx entry.
Descriptor Code: UUID for index 2. NSPC/NAME/DAEL for index 3 or higher.
Data Type Code: NONE for index 2. VSTR/UINT/INT/FLT/OSTR/BSTR/TIME for index 3 or higher.
Max Data Length (bytes): 0 for element 1. 0…255 for index 3 or higher.
Ancillary Value: Binary Array in hexadecimal for element 1. ASCII strings for index 3 or higher.
Maximum 32 bytes.
