Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 281
Appendix B Quickstarts

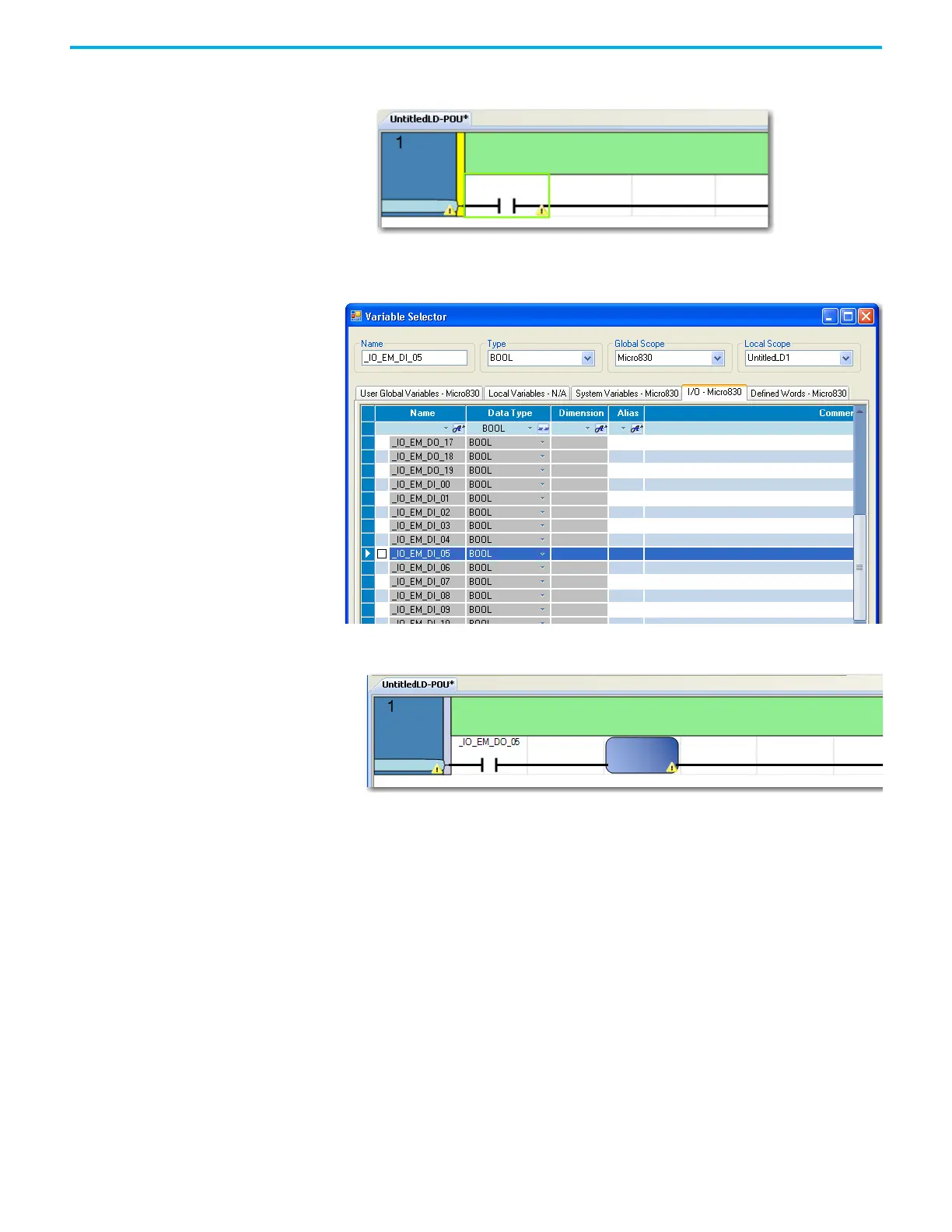

4. From the Toolbox, double-click Direct Contact to add it to the rung or drag and drop
Direct Contact onto the Rung.
5. Double-click the Direct Contact you have just added to bring up the Variable Selector
dialog. Click I/O Micro830 tab. Assign the Direct Contact to input 5 by selecting
_IO_EM_DI_05. Click OK.
6. To the right of the Direct Contact, add a function block by double-clicking function
block from the Toolbox or dragging and dropping the function block onto the rung.
