Chapter 2 Product Features

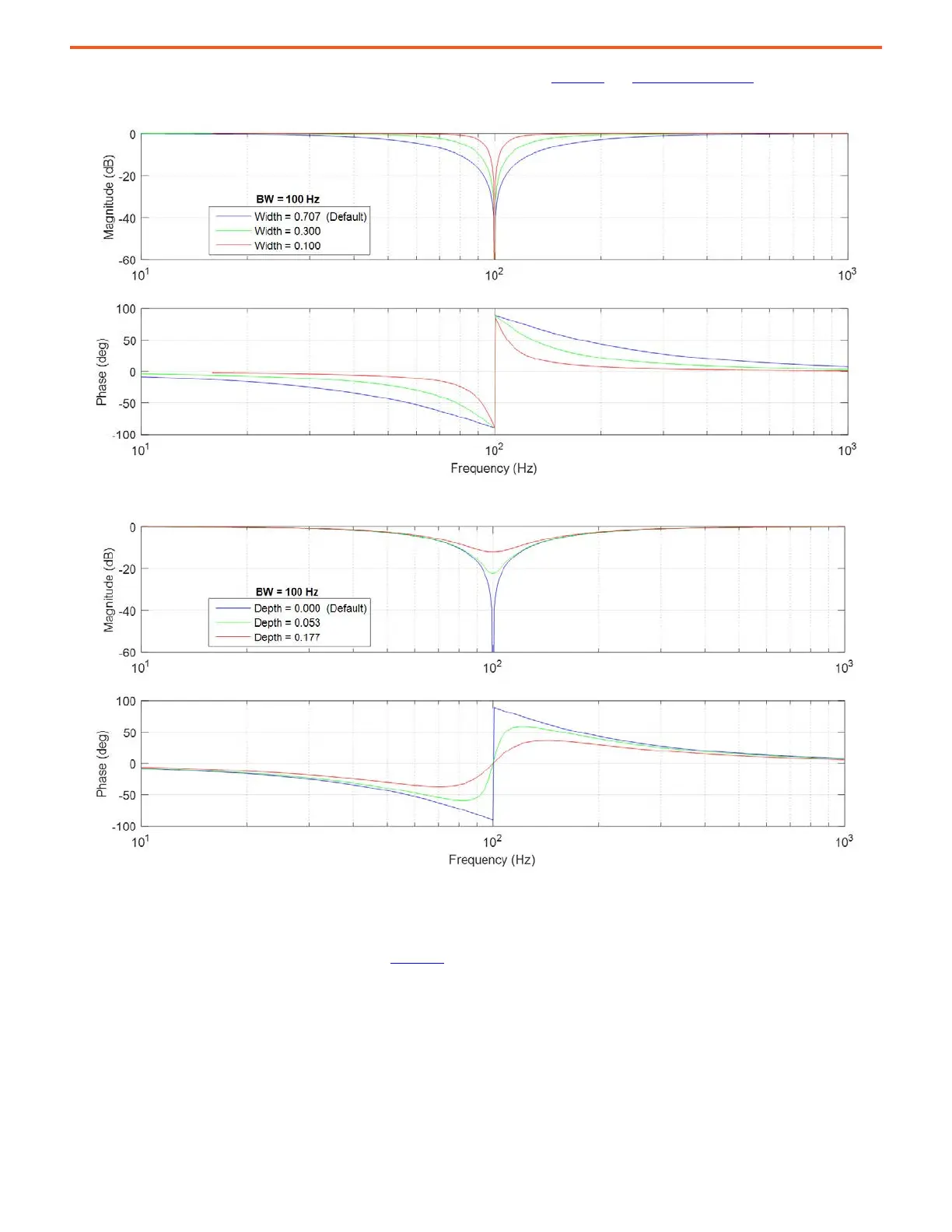

Bode plots with differing width and depth notch filter settings for K=1 are shown in Figure 47 and Figure 48 on page 48.
Figure 47 - Variable Width Notch Filter Configurations
Figure 48 - Variable Depth Notch Filter Configurations
Configured as a Second Order Low Pass Filter (K = 0)
When K = 0, the notch filter is configured to operate as a second order low-pass filter with bandwidth F and damping Z
W
. Bode plots with
differing low-pass filter settings for K = 0 are shown in Figure 49
.
