Chapter 1 Store and Load a Project By Using a
Memory Card
18 Rockwell Automation Publication 1756-PM017J-EN-P - March 2022
IMPORTANT
Make sure the SD card is unlocked if set to load
On Power Up
before using the
ControlFLASH software. Otherwise, the updated data may be overwritten by firmware on
the SD card. An error message appears. Refer to the
ControlLogix System User Manual,
publication 1756-UM001 available at
http://literature.rockwellautomation.com/idc/groups/literature/documents/um/1756-u
m001_-en-p.pdf, before updating.

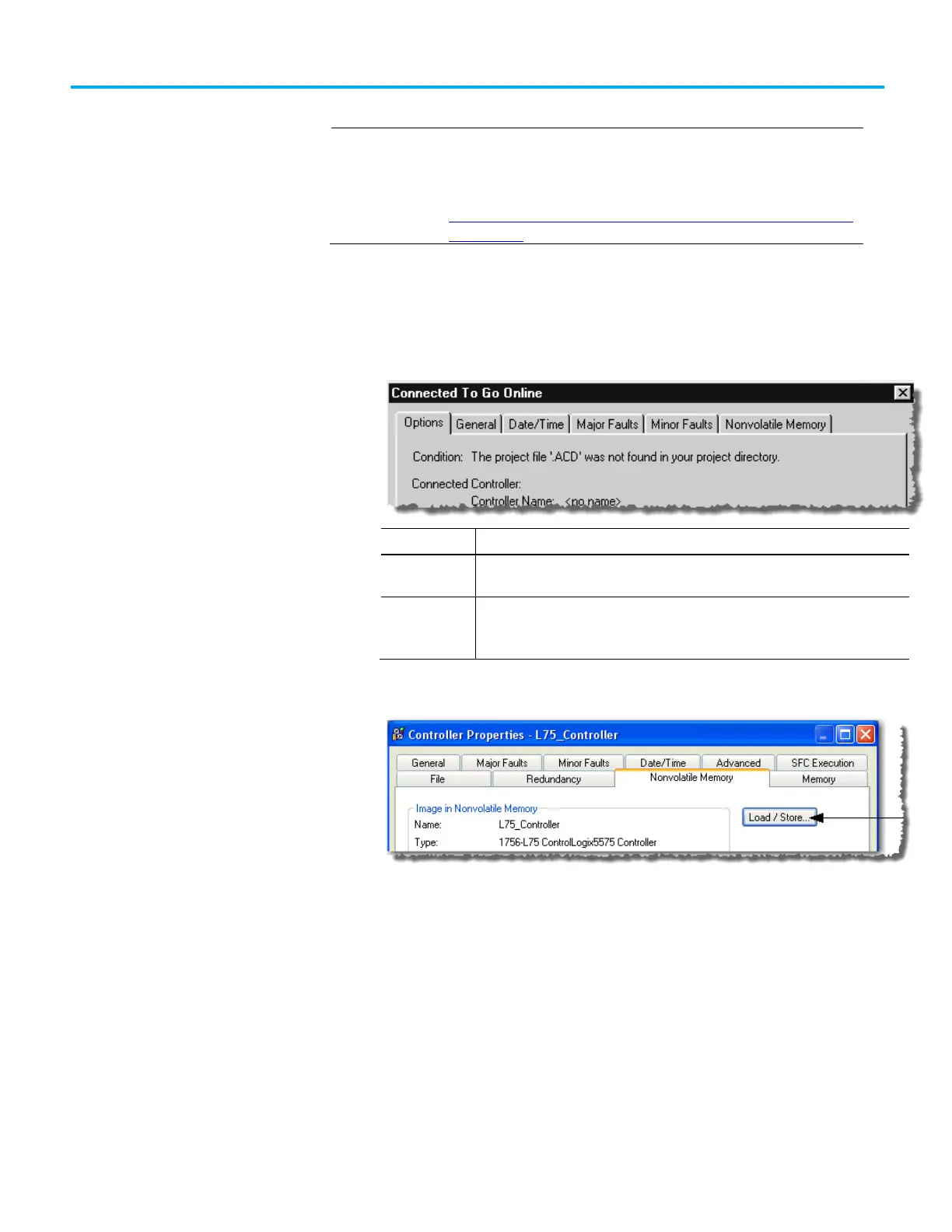

To load a project
1. Go online with the controller.
2. Did the Connected To Go Online dialog box open?
If
Then
No a. Put the controller in
Program
mode (Rem Program or Program).
b. On the
Online
toolbar, select the
Controller Properties
icon.
Yes
Put the controller in Program mode (Rem Program or Program). You can either:
• Select the
General
tab on the
Connected To Go Online
dialog box.
•
Use the keyswitch on the front of the controller.
3. On the Controller Properties dialog box, select the Nonvolatile
Memory tab.
4. Select Load/Store.
