5. After the system stops, press the “Program/Operator” button until it displays “Operator”.
The machine must be stopped before you can switch control modes. When in Operator (MANUAL) mode,
you can individually control each axis from its corresponding faceplate.
Continue to the next section.
Using the PowerFlex 525 Drive & PowerFlex 755 Drive Faceplates
The steps below also apply to both the PowerFlex 755. The faceplate screen is consistent between “PF525” and the “PF755”.

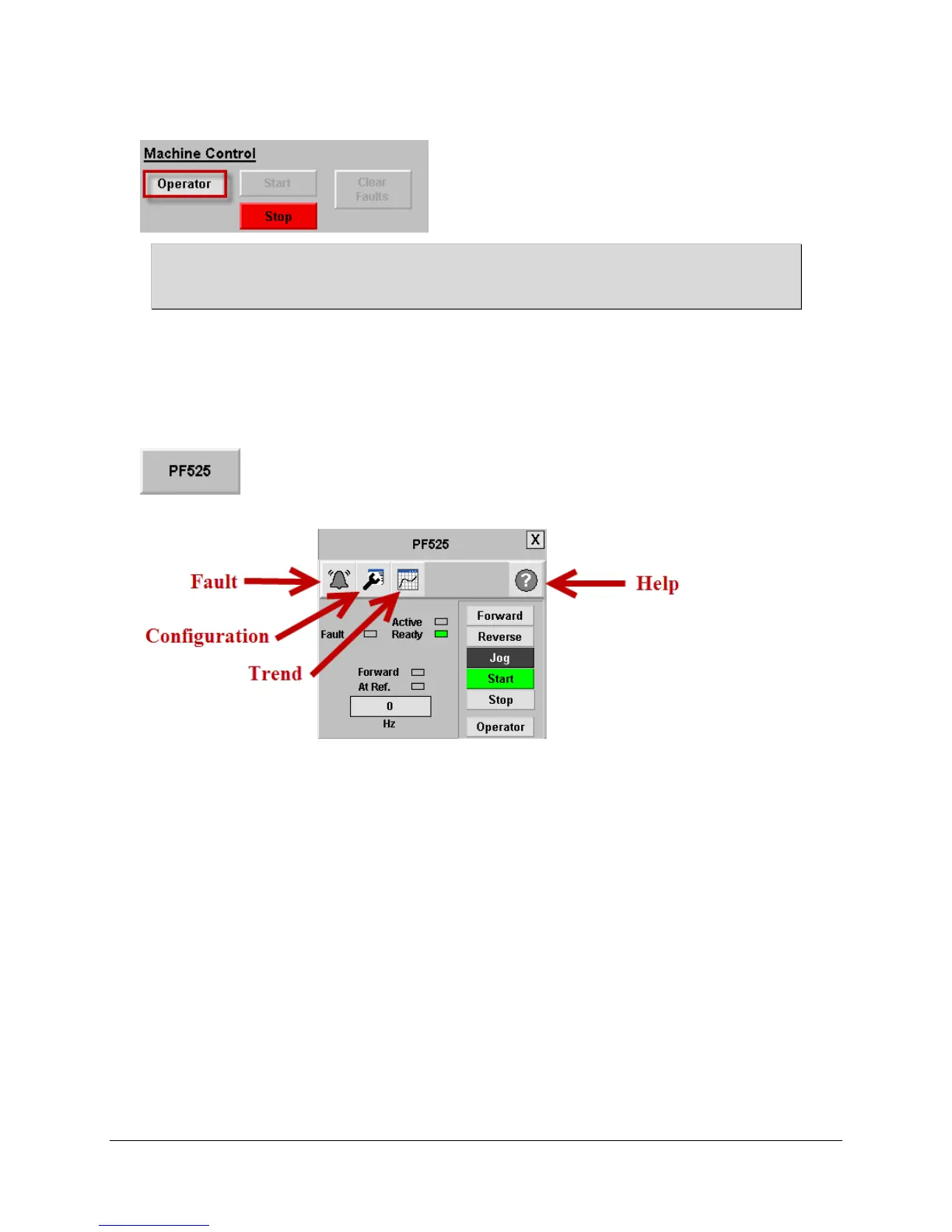

1. Press the “PF525” button from the Startup screen.
The faceplate will appear.
The PowerFlex 525 faceplate provides status information, fault information, and trending data. The faceplate also includes
the ability to manually control the drive.
