107 of 136

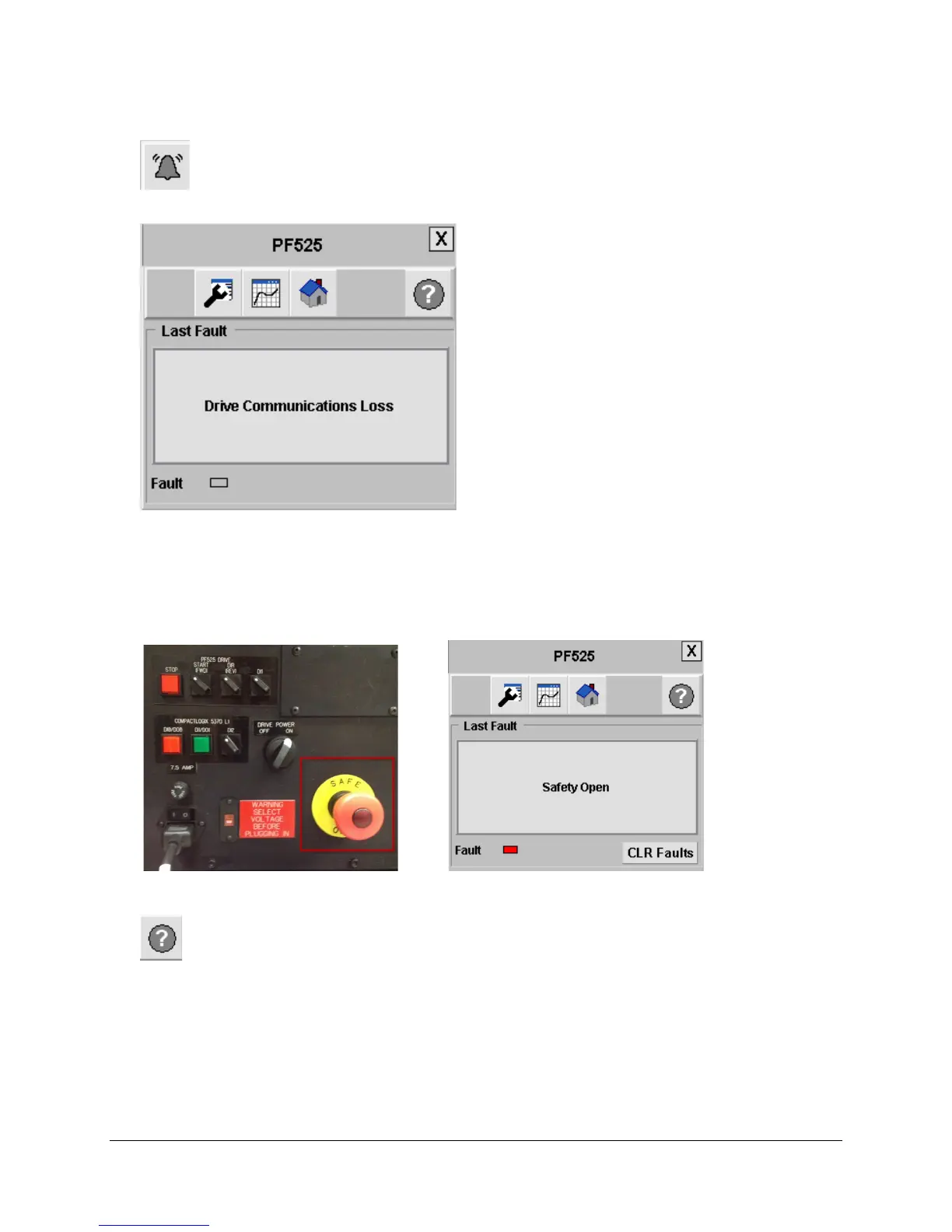

6. Press the “Faults” button.
The Faults faceplate will come up. It may look different than the screenshot below, since it will display the last fault.
If a fault condition exists, the Faults icon flashes red. This faceplate determines the fault information from the drive and
displays the fault type, code and description. When there is no active fault, the display shows the last fault condition
recorded.
7. On the demo box, push in the red “Safe Off” button to generate a fault on the drive. This will generate a
F059 – Safety Open fault.
8. Press the “Help” button for more information about the fault.
The Help screen displays the fault descriptions and actions.
