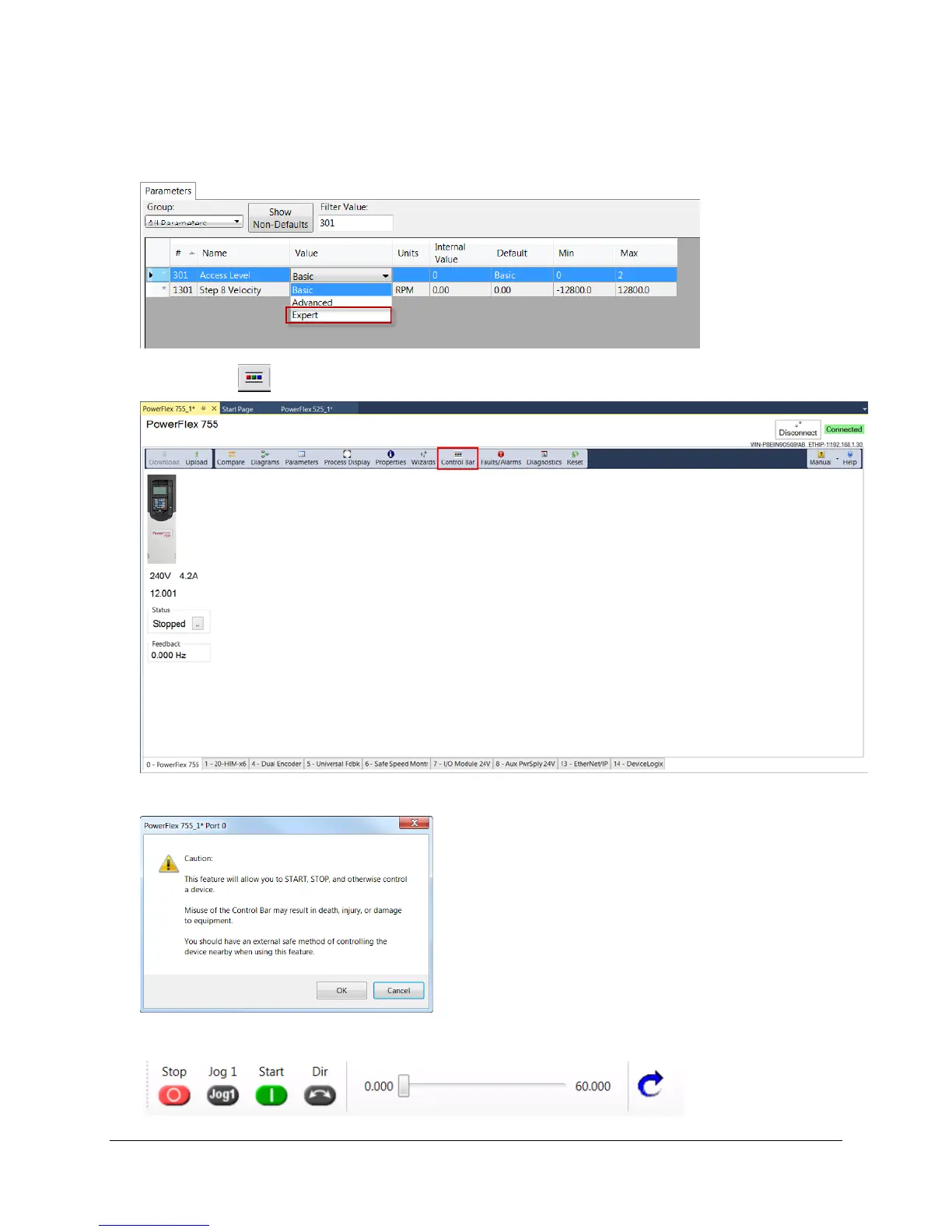

Using the Control Bar Tool
45. Change Parameter 301 [Access Level] to Expert to allow all of the parameters to be visible.
46. Click on the button in the tool bar at the top of the window.
47. Read the Caution Advisory window and click OK.
48. Use the buttons on the left-hand side of the control bar to start, stop, jog, and control the direction of the drive.
