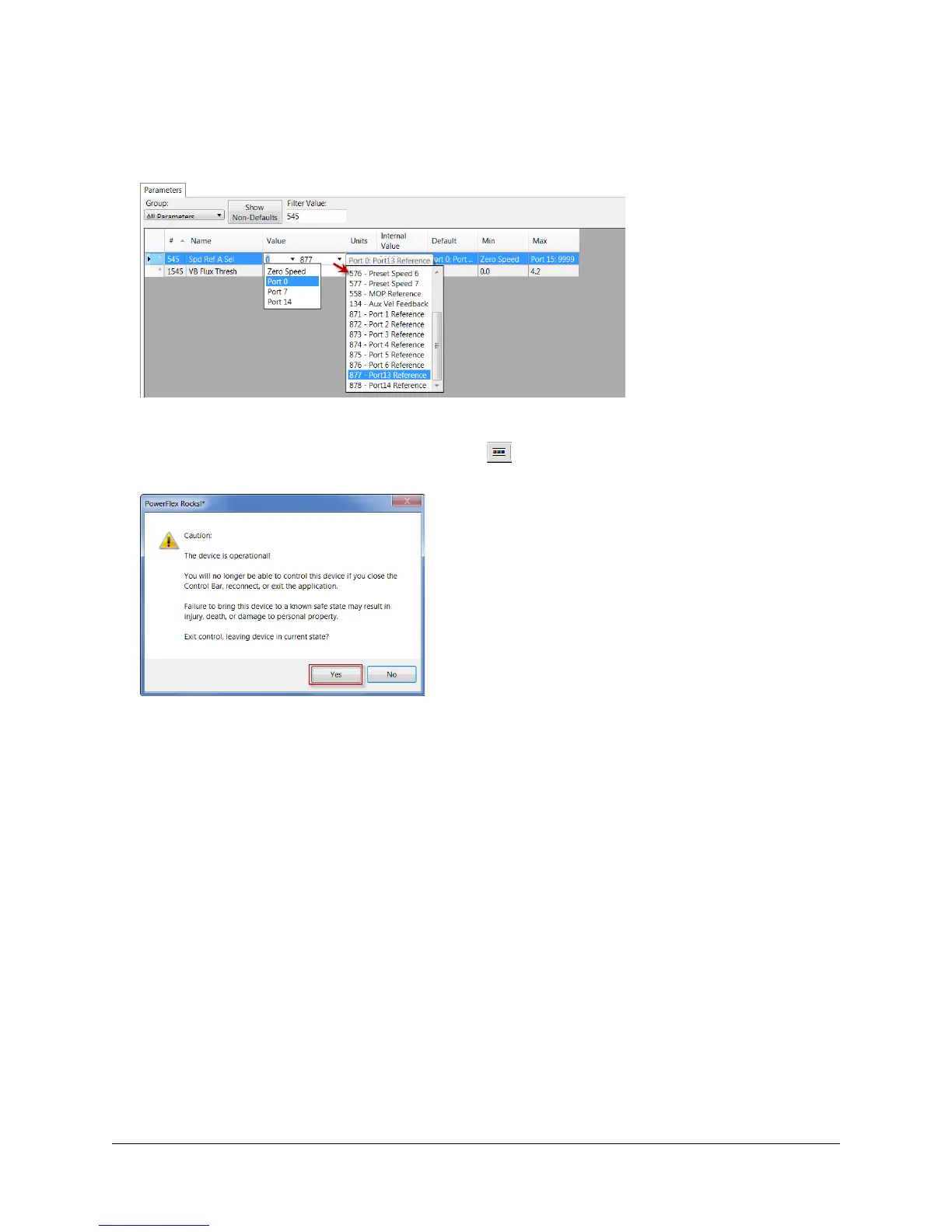

The speed reference was selected earlier to be Port 7 [I/O Module 24V] Parameter 50 [Anlg In0]. To allow the control bar to
have control of the speed reference, change Port 0 Parameter 545 [Sped Ref A Sel] while the drive is not running. Stop the
drive, and change it to Port 0 Parameter 877 [Port 13 Reference].
Start the drive again and use the slider on the right-hand side to control the speed reference.
49. Stop the drive and turn off the control bar by clicking the button again. Observe the Caution Advisory window and
click Yes.
