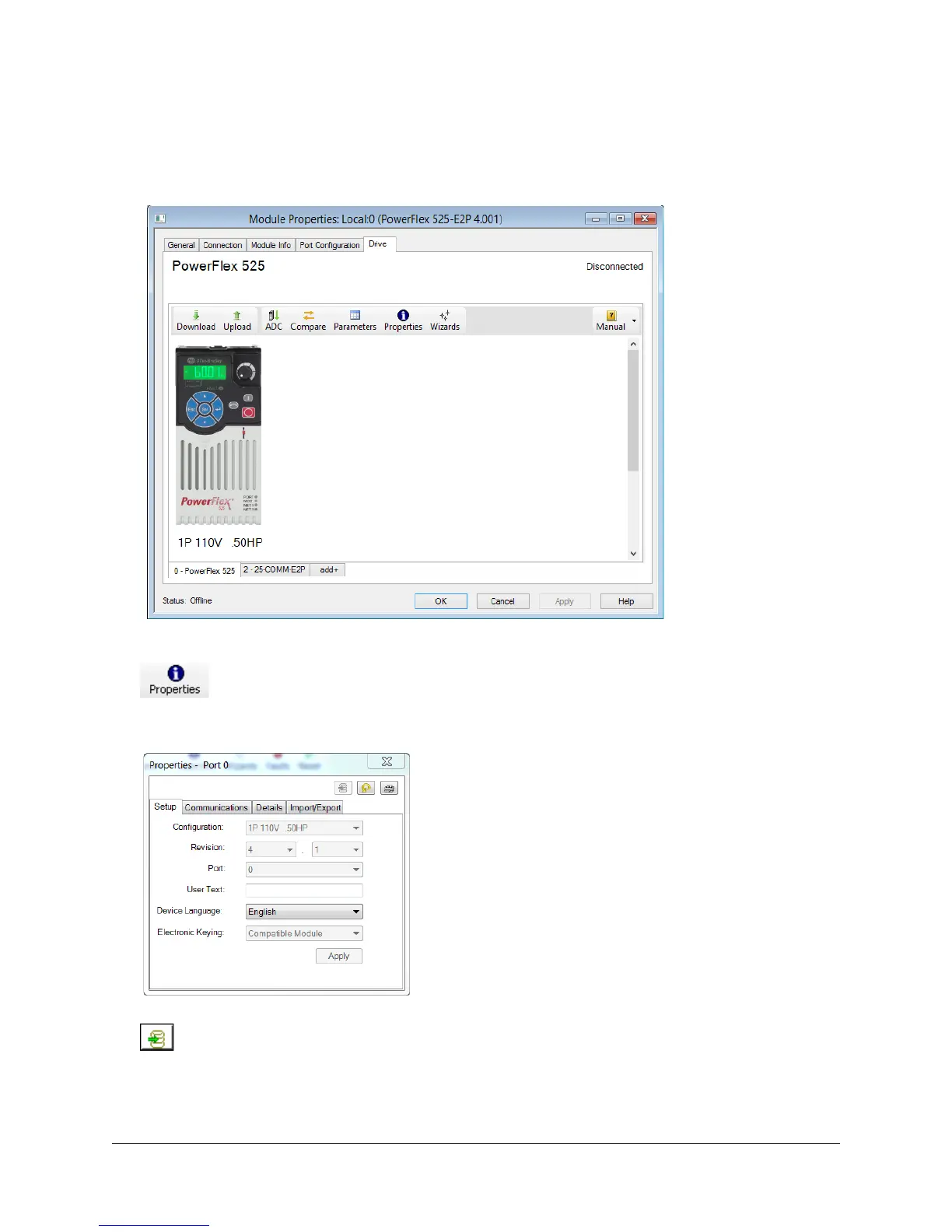

The Add-On Profile for the PowerFlex 525 drive in the Logix Designer software provides a common look-and-feel to the
Connected Components Workbench software. This provides the same ability to upload, download, view, and compare drive
parameters, as well as access the Wizards. One additional feature in Logix Designer is for setting up Automatic Device
Configuration (ADC) the drive.
6. Click on the “Properties” button.
This opens the Properties window to the Setup tab, which shows some basic drive information including Configuration,
Revision, Device Language and Electronic Keying.
The buttons in the top right corner of the window have very useful functions, as listed below.
= Creates device database from online drive to add new revisions and configurations
