13

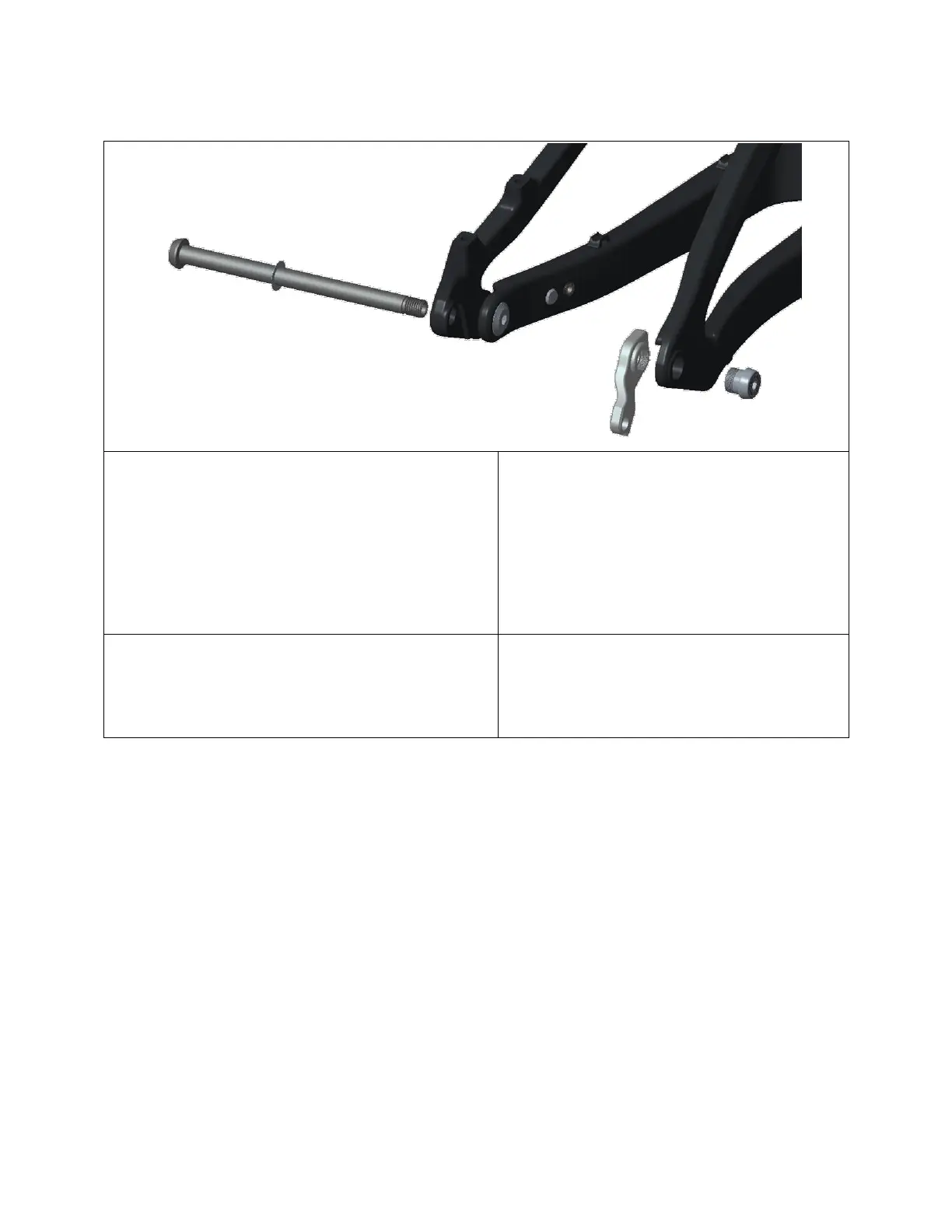

4) Rear Axle & Rear Derailleur Hanger
1) Apply Loctite 243 (blue) to Axle Nut
(3227001) threads.
Note: Axle Nut and derailleur hanger are
left hand (reverse) threaded! Turn
counter-clockwise to tighten.
2) Pass Axle Nut through seat stay,
and thread into derailleur hanger.
Note: Select the correct rear
derailleur hanger, either Shimano
Direct Mount (3227002) or Standard
Mount (1097132).
Torque to 20 Nm.
3) Grease Rear Axle (3227009) body and
threads.
4) Pass Rear Axle through Stainless
Steel Washer (3227006), seat stay,
hub, and thread into Axle Nut.
With hub installed, torque to 10 Nm.
