5.2 Head Tube Port Cable Routing
Colour Coding:
Green – 5mm Hose (hydraulic lines or smaller)
Blue – 4mm Housing (mechanical shift cable housing or smaller)
Red – 3mm Cable (electronic cables or smaller)
Note: Use a zap-strap to affix cables before installing port, as shown.

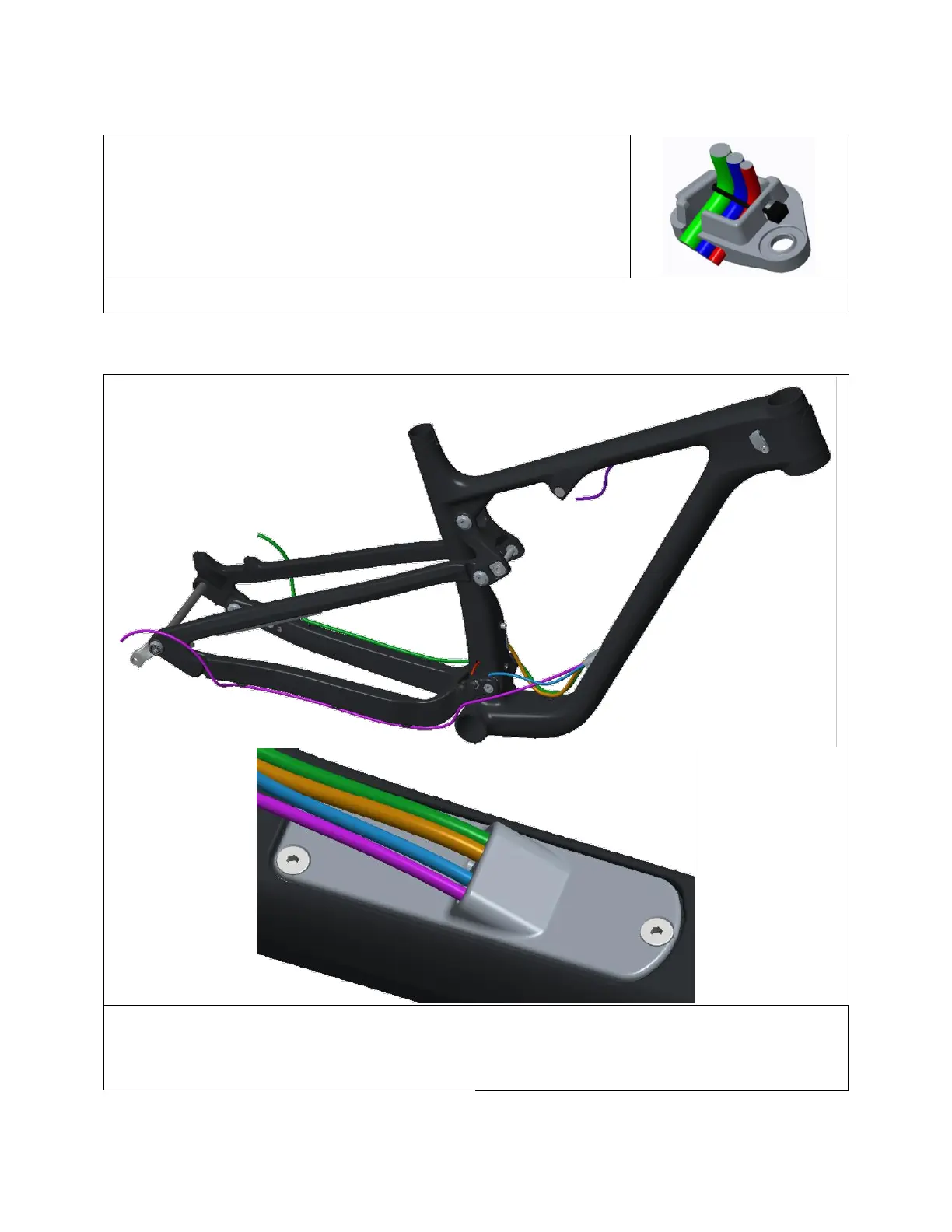

5.3 Frame Cable Routing
Colour Coding:
Green – Brake Hose
Orange – Internal Dropper Post Hose
Purple – Shock Remote
Blue – Side Swing Front Derailleur Cable
Red – Di2 Front Derailleur Cable
Pink – Rear Derailleur Cable
