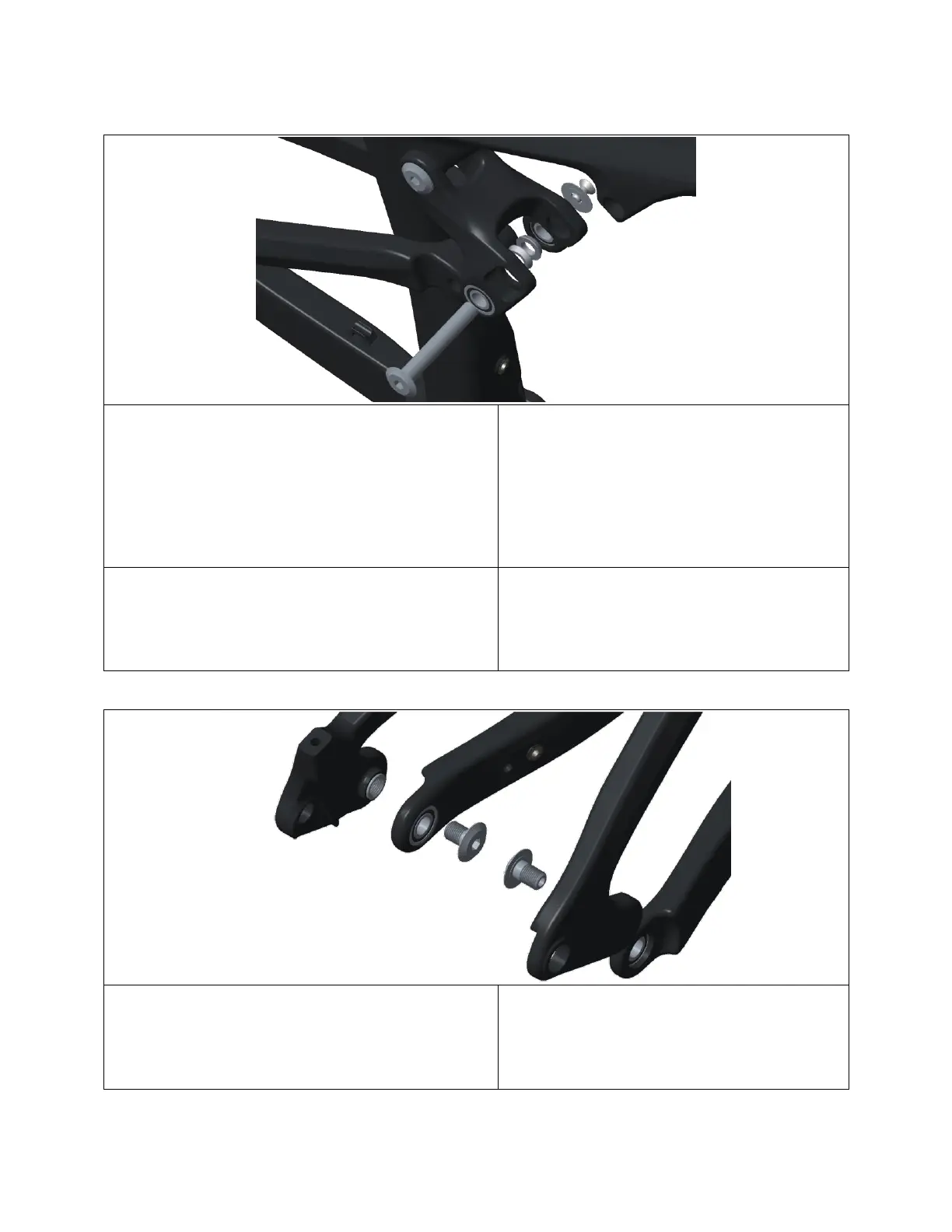

2.3 Seat Stay Installation
1) Grease outside of TL-SS Pivot Bolt
(1807048), small faces of 6900 Bearing
Spacers (1807044), and small inner face
of 6900 Bearing Cap (1807043).
Apply Loctite 243 (blue) to M6-1.0 x
12mm SS Screw (180566-012 FBY)
threads.
2) Insert 6900 Bearing Spacers so that
small faces contact the inboard
inner races of the top link bearings.
3) Slide seat stay around the seat tube, and
into top link. Install TL-SS Pivot Bolt.
4) Pass M6-1.0 x 12mm SS Screw
through 6900 Bearing Cap, and
thread into TL-SS Pivot Bolt.
Torque to 8 Nm.
5) Apply Loctite 243 (blue) to inside of
threaded seat stay inserts.
6) Pass Dropout Pivot Screws
(1807046) through chain stay
bearings, and thread into seat stay.
Torque to 17 Nm.
