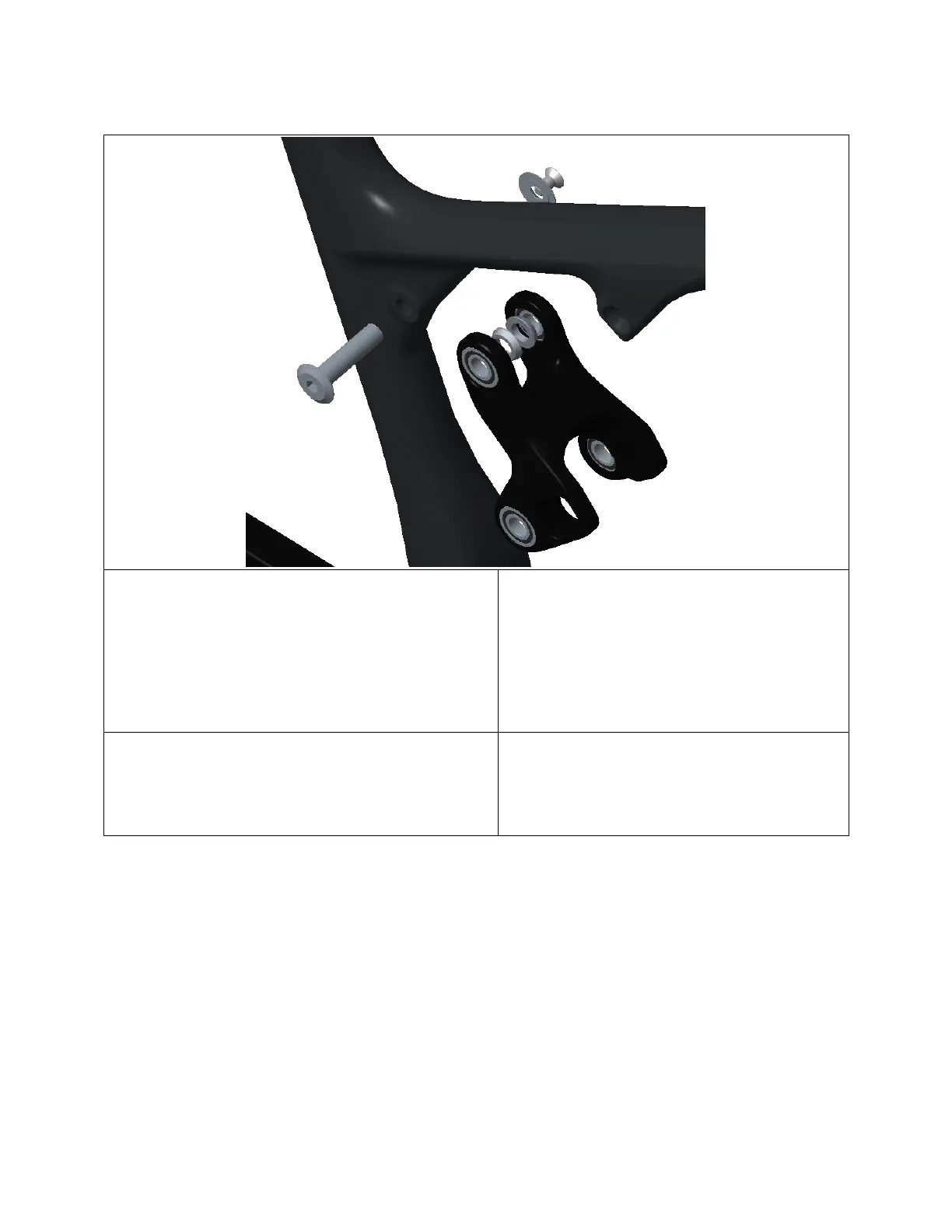

2.2 Top Link Installation
1) Grease outside of TL-FT Pivot Bolt
(1807047), small faces of 6900 Bearing
Spacers (1807044), and small inner face
of 6900 Bearing Cap (1807043).
Apply Loctite 243 (blue) to M6-1.0 x
12mm SS Screw (180566-012 FBY)
threads.
2) Insert 6900 Bearing Spacers so that
small faces contact the inboard
inner races of the top link bearings.
3) Slide top link and 6900 Bearing Spacers
over front triangle. Install TL-FT Pivot Bolt.
4) Pass M6-1.0 x 12mm SS Screw
through 6900 Bearing Cap, and
thread into TL-FT Pivot Bolt.
Torque to 8 Nm.
