Suspension Pivot Torque Guide
Note: All Torque values are +/-- 10%
Description
Part #
Location
Tool
Torque
Notes
kg-cm
Nm
lb-in
A
Shock
Bolts &
Screws
1807049 &
180566-016 FBY
Top Link
5mm &
4mm Hex
Keys
80
8
70
Torque only with
correct shock and
hardware installed.
Apply grease to
shock bolts, and
Loctite 243 (blue) to
screw threads.
1807062 &
180566-016 FBY
Front
Triangle
Two 4mm
Hex Keys
B
Top Link
Bolts &
Screws
1807047 &
180566-012 FBY
FT-TL
Pivot
6mm &
4mm Hex
Key
80
8
70
Apply grease to
pivot bolts, and
Loctite 243 (blue) to
screw threads.
1807048 &
180566-012 FBY
SS-TL
Pivot
C
Dropout
Pivot
Screws
1807046
Dropouts
6mm Hex
Key
175
17
152
Apply Loctite 243 to
female seat stay
threads.
D
Main
Pivot
Bolt
1807045
Main
Pivot
6mm Hex
Key
175
17
152
Apply grease to
inner bearing races
and Loctite 243 to
female chain stay
threads.

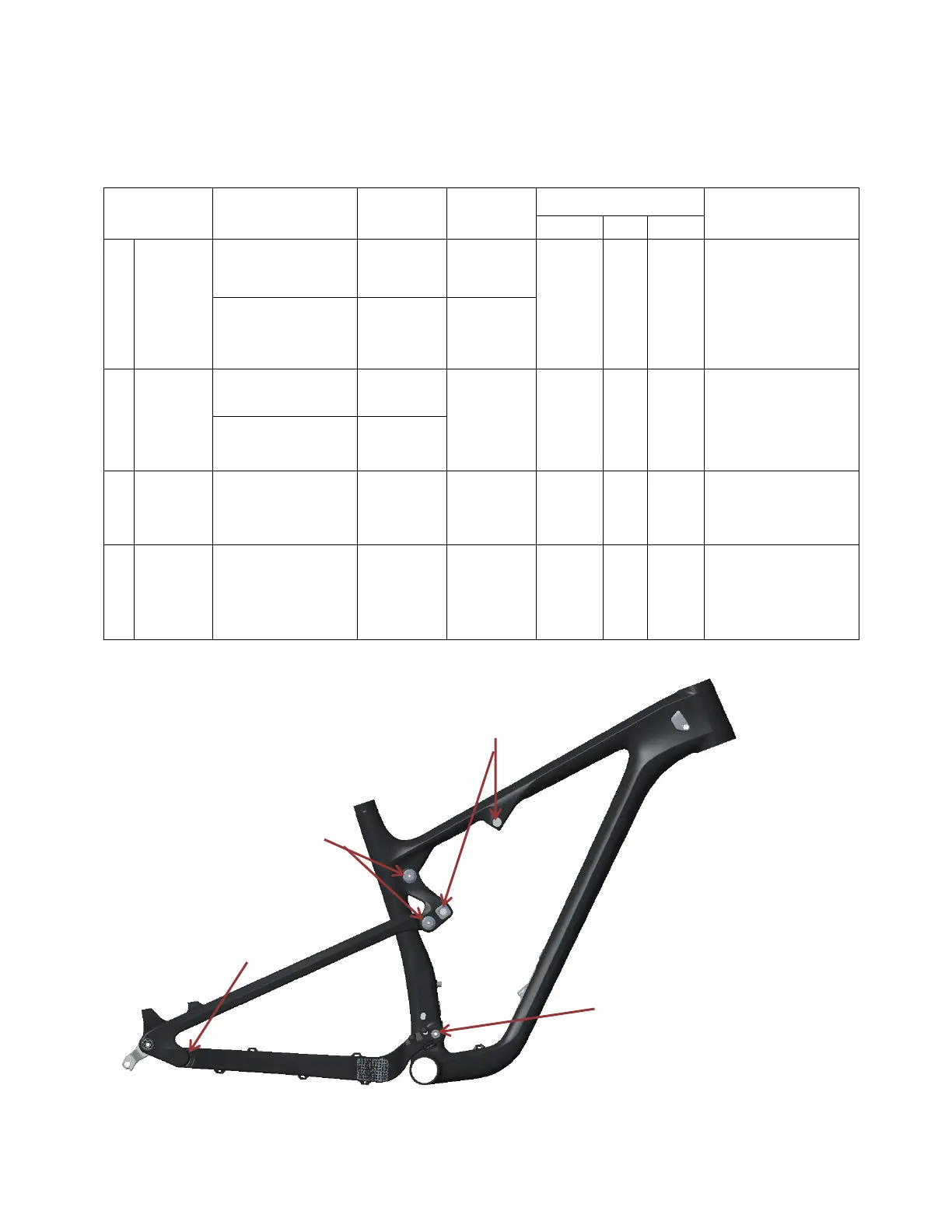

A
B
C
D
