11 Travel acquisition
For the system to function correctly, the barrier travel must be acquired by the controller.
11.1 Before starting:
IMPORTANT: Select the length of the boom with the parameter $.
It is very important that this parameter is selected correctly. An incorrect setting may cause severe damage
or injury.

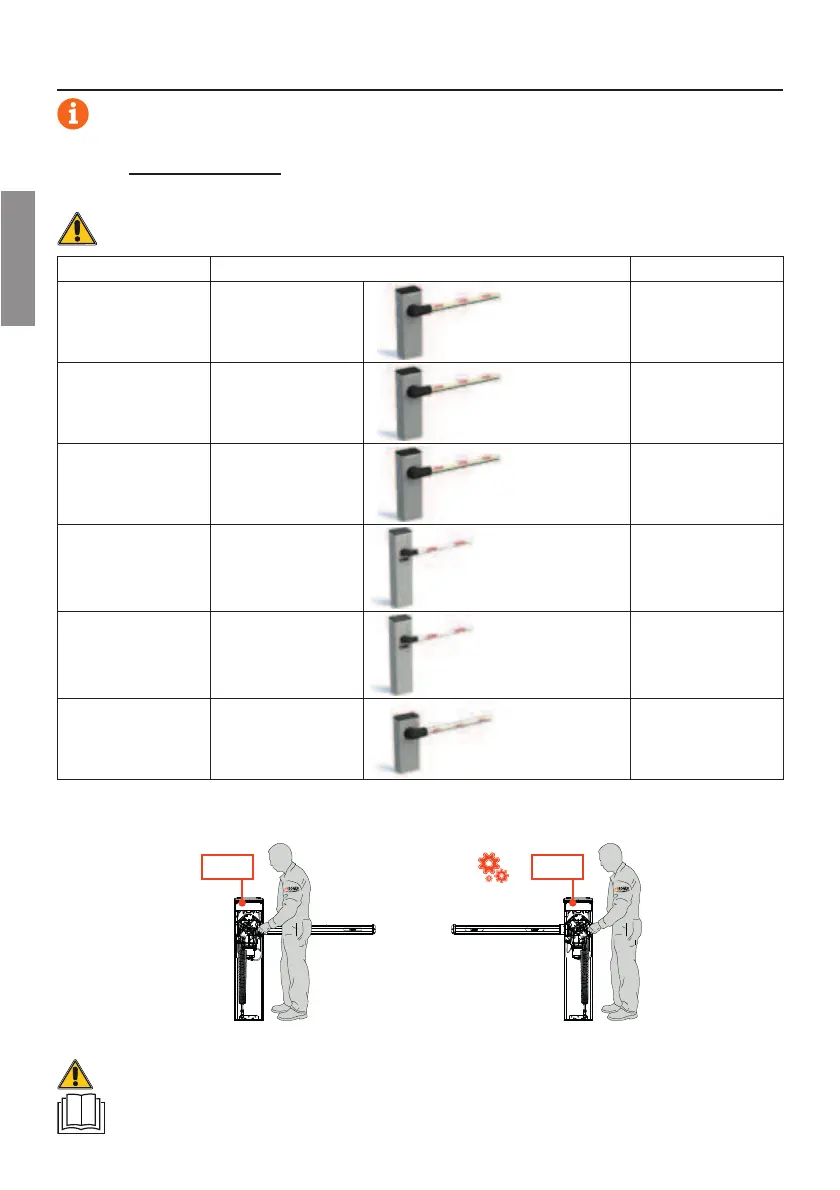

SELECTION MODEL BOOM
D
AG/004
KB/004
BI/004HP
up to 3 m
D
AG/004
KB/004
BI/004HP
from 3 m
to 4,5 m
D
AG/006
KB/006
BI/006
from 4,5
to 6 m
D
BI/004
up to 3 m
D
BI/004
from 3 m to 4 m
$
BI/008
up to 8 m
1. Select the position of the barrier in relation to the gate, using parameter . The factory setting of the parameter is
with the barrier installed on the right () and the boom opening/closure gate on the left (seen from the inspection
hatch side).
IMPOSTAZIONE DI FABBRICA
FACTORY SETTING
If the installation position is changed from the right to the left, the position of the spring(s) must also be
changed.
For the correct installation, refer to the barrier installation manual.
