Roland E-50 - Page 7

E-50
Aug. 2006
9
8

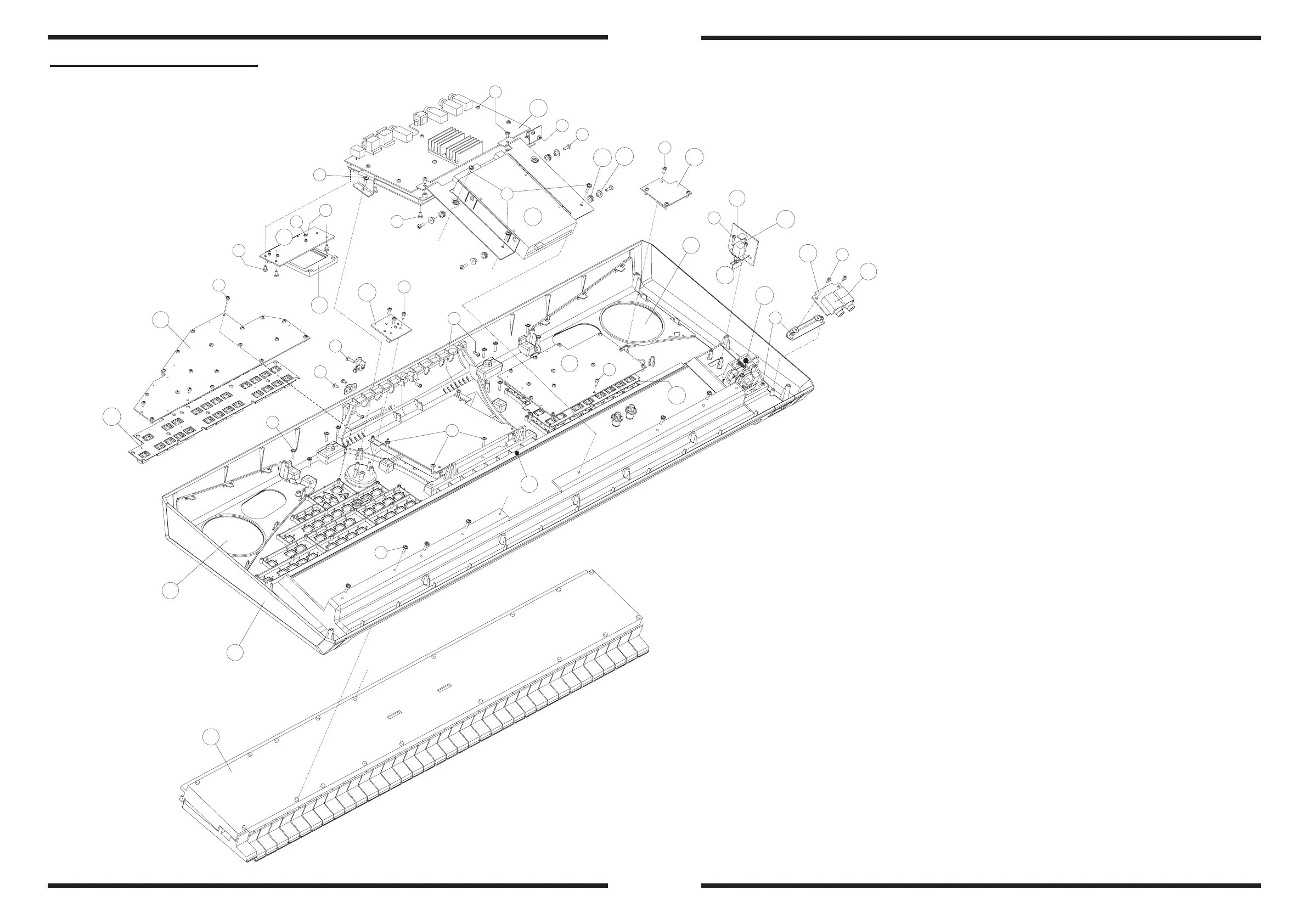

EXPLODED VIEW TOP
*
*
No.
Screw
Part No.
17
18
19
20
21
22
23
A
B
C
D
E
F
G
H
5
1
6
2
7
3
8
4
9
10
11
12
13
14
15
16
7778111000 POWER SWITCH PCB ASSY E-50/E-60
3249559701 SWITCH CAP
13449252 JACK SOCKET YKB 21-5006
J3129101 SWITCH SDKLA11000
K3278112 PITCH BENDER SW + CABLE (36)+1C.
22265242 RUBBER GUIDE BUSHING
22165134 BRASS BUSHING
K2248197 AD. FELT (WHITE) MM.860X7 TH.1.5
J2289126 SELF TAP.SCREW 2.9X 8 TCTCPRBZ
40342345 W SEMS W/WASHER M2*10 BZC
J2289193 SELF LOCK.SCREW M3X6 TC TC H.6
J2289101 SELF TAP.SCREW 2.9X 6 TC TC
J2289287 SCREW 2.9X13 TC PR BZ TFR H.7 HILO
J2289108 SELF LOCK.SCREW M3X10 TCTC H.6
J2289160 SELF TAP.SCREW 2.9X13 TCTCPR BR
J2289102 SELF TAP.SCREW 2.9X10 TC TC
J2589110 61-KEY TP/7BA+C(DR) KEYBOARD 65074700
7778203000 SILK.+VARN. TOP CABINET E-50
K2278105 LEFT SPEAKER GRILL E-50/E-60
K2278104 RIGHT SPEAKER GRILL E-50/E-60
7778105000 RIGHT CONTROL PCB ASSY E-50/E-60
02900867 CARD EJECTOR SCAB1A5600
7778202000 LEFT CONTROL PCB ASSY E-50
7778109000 CARD PROTECT PCB ASSY E-50/E-60
J240910801 FLOPPY DISK DRIVER ALPS DF354H148G
K2478440 42-BUTTON GROUP (RIGHT COND.PAD) E50/60
7778103000 AUDIO PCB ASSY E-50/E-60
7778112000 VOLUME PCB ASSY E-50/E-60
7778108000 ENCODER ASSY E-50/E-60
7778110000 HEADPHONES PCB ASSY E-50/E-60
K2478441 36-BUTTON GROUP (LEFT CONDUCT.PAD)E50/60
