Roland E-50 - Exploded View Bottom

Aug. 2006
12

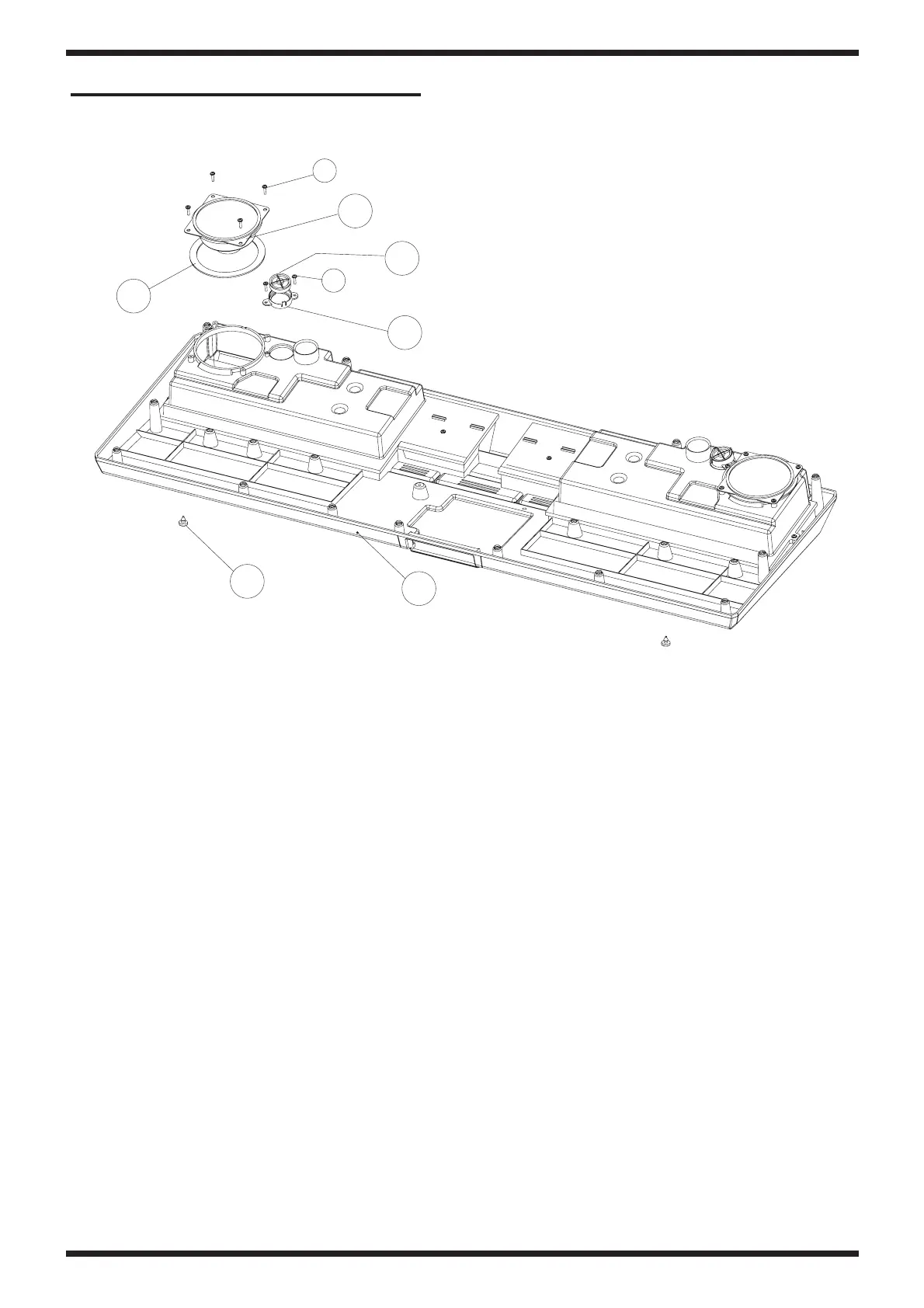

EXPLODED VIEW BOTTOM
No.
Screw
Part No.
A
5
1
6
2
3
4
J2289287 SCREW 2.9X13 TC PR BZ TFR H.7 HILO
K2418130 WOOFER SPEAKER 4 OHM Z001401
K2228103 SPEAKER GASKET 108/88 TH.2
K2018131 SOUNDPROOFED BOTTOM CBNT+BOX E-50
K2358105 PRESSURE RUBBER FOOT
K1188130 TWEETER SUPPORT EM2000/EG101
K2418131 TWEETER SPEAKER 4 OHM E-50/E-60
Description
5
4
3
1
2
6
A
A
