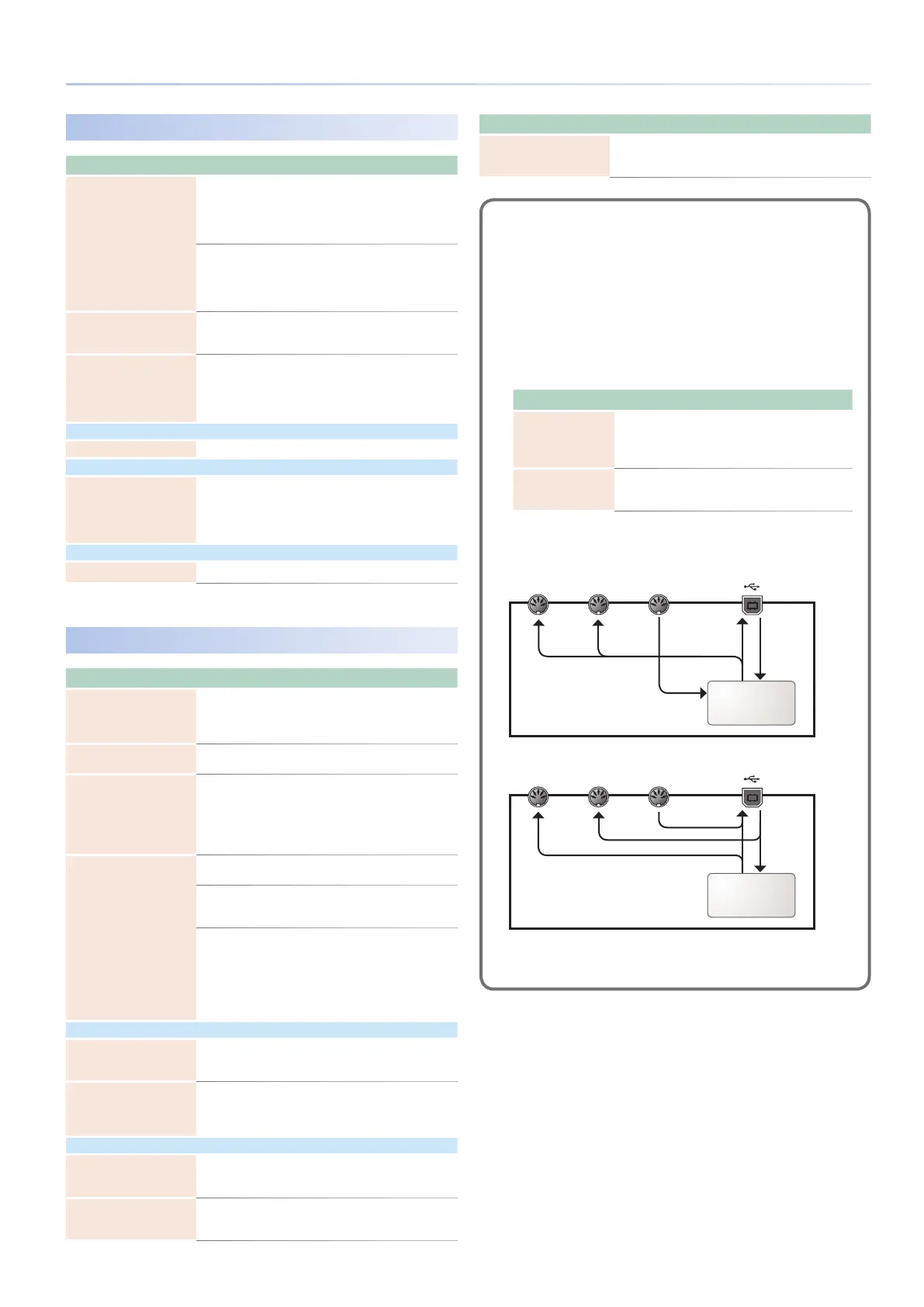

115
Settings for the Entire FANTOM
USB Audio Settings (USB AUDIO)
Parameter Value Explanation
USB Audio Mix/Parallel
MIX
All audio signals output from the
FANTOM are mixed to channels
1–2. This is convenient for stereo
recording. Other channels are output
according to their settings.
PARALLEL
The audio signals output from the
FANTOM are output individually
from all channels. This is convenient
for simultaneous multi-channel
recording.
USB Audio In/Out Select IN, OUT
Specifies whether the [USB AUDIO]
slider adjusts the USB audio input
level (IN) or output level (OUT).
USB Audio Input Switch OFF, ON
Specifies whether audio from a
computer or other device connected
to the USB COMPUTER port is input
to the FANTOM (ON) or is not input
(OFF).
Input
USB Audio Input Level 0–127 Adjusts the USB audio input level.
Output Level
USB Audio Output Switch OFF, ON
Specifies whether audio from the
FANTOM is output to a computer or
other device connected to the USB
COMPUTER port (ON) or is not output
(OFF).
Output Source
USB Audio Output Level 0–127 Adjusts the USB audio output level.
MIDI Settings (MIDI)
Parameter Value Explanation
Device ID 17–32
When transmitting and receiving
system exclusive messages, the device
ID numbers of both devices must
match.
Scene Control Channel 1–16, OFF
Specifies the MIDI channel for
controlling the scene.
USB-MIDI Thru OFF, ON
Specifies whether MIDI messages
received via the USB COMPUTER
port/MIDI IN connector will be
re-transmitted from the MIDI OUT 2
connector/USB COMPUTER port (ON)
or not be re-transmitted (OFF).
MIDI OUT2 Port Mode
Selects the function of the FANTOM’s MIDI THRU/OUT
2 connector.
OUT
Operates as a MIDI OUT connector,
transmitting keyboard and controller
messages to an external MIDI device.
THRU
Operates as a MIDI THRU connector,
from which MIDI messages received
at the MIDI IN connector are
retransmitted without change to an
external device. Performance data
from the FANTOM will no longer be
transmitted from this connector.
Transmit
Transmit Active Sensing OFF, ON
Specifies whether active sensing
messages will be transmitted (ON) or
not be transmitted (OFF).
Transmit Edit Data OFF, ON
Specifies whether changes in the
scene settings are transmitted as
system exclusive messages (ON) or
not transmitted (OFF).
Receive
Receive Program Change OFF, ON
Specifies whether program change
messages will be received (ON) or not
be received (OFF).
Receive Bank Select OFF, ON
Specifies whether bank select
messages will be received (ON) or not
be received (OFF).
Parameter Value Explanation
Receive Exclusive OFF, ON
Specifies whether system exclusive
messages will be received (ON) or not
be received (OFF).
What is a MIDI?
MIDI (Musical Instrument Digital Interface) is a standard specification
that allows musical data to be transferred between electronic musical
instruments and computers. If a MIDI cable is connected between
devices equipped with MIDI connectors, you’ll be able to play multiple
devices from a single MIDI keyboard, perform ensembles using multiple
MIDI instruments, program the settings to change automatically as the
song progresses, and more.
About MIDI connectors
The FANTOM is equipped with the following two types of MIDI
connectors, each of which has the following role.
Connector Explanation
MIDI IN connector
This connector receives MIDI messages that are
sent from an external MIDI device.
When the FA receives MIDI messages, it can
respond by playing notes, switching sounds, etc.
MIDI OUT
connector
This connector transmits MIDI messages to an
external MIDI device. Use it when you want to
control an external MIDI device.
MIDI signal flow
USB IN
USB IN
MIDI IN
MIDI IN
USB OUT
USB OUT
MIDI OUT1
MIDI OUT1
MIDI OUT2
MIDI OUT2
USB-MIDI Thru=OFF
FANTOM
FANTOM
USB-MIDI Thru=ON
Sound
Generator
Section
Sound
Generator
Section
To Next Page
