Roland FANTOM Series User Manual

58

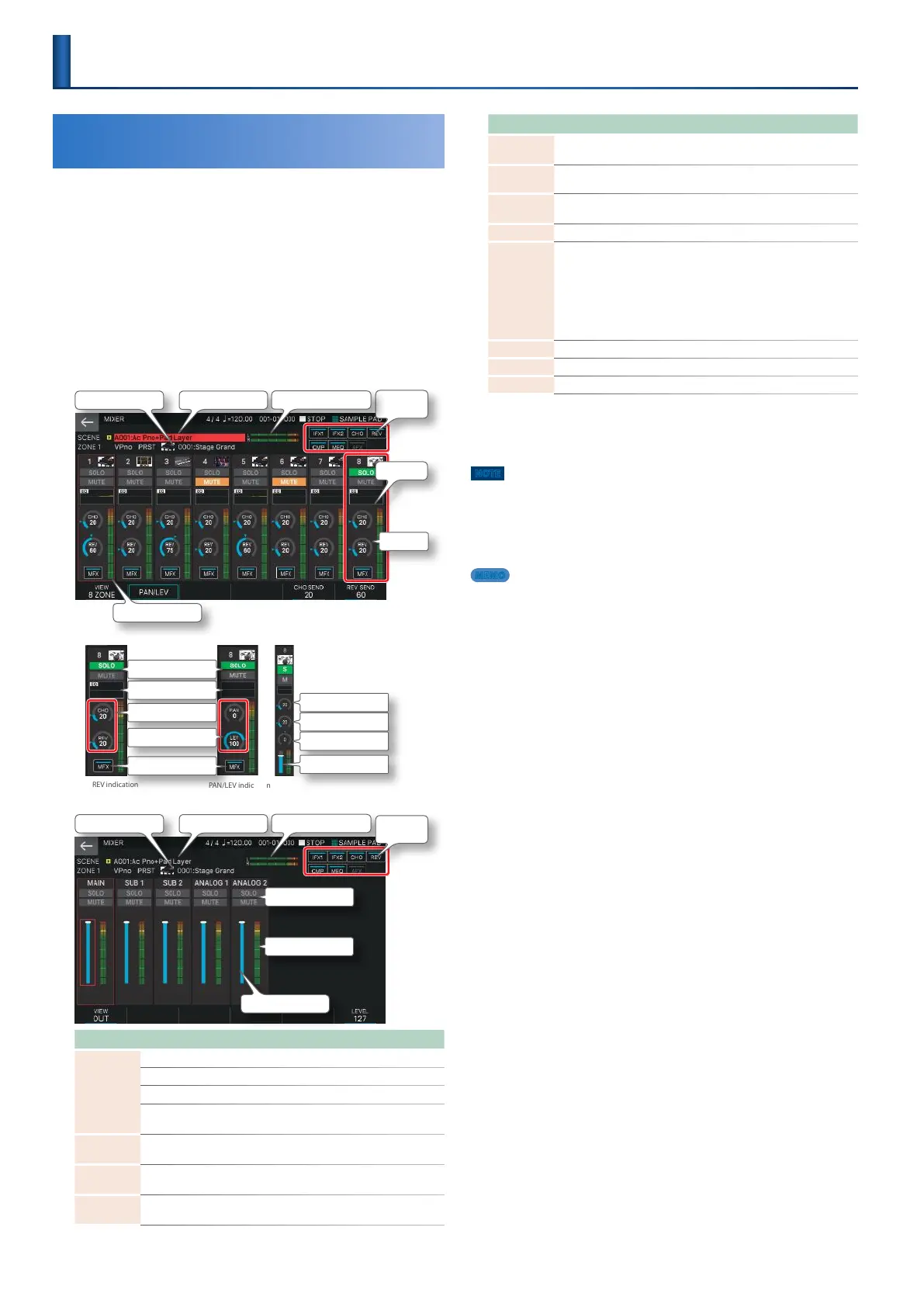

Using the Mixer Screen
Adjusting the Pan and Volume in the
MIXER Screen
The MIXER screen provides unified access to frequently-edited
parameters such as each zone’s pan, level, and effects. This
screen is ideal when you want to adjust the major parameters
while maintaining the balance between zones.
1.
Press the [MENU] button.
The MENU screen appears.
2.
Touch <MIXER>.
The MIXER screen appears.
3.
Edit the parameters as needed.
On/off of
each effect
Zone area
Level meter
Current Zone
Scene NameTone Name
Main level meter
CHO/REV indication
PAN/LEV indication
VIEW 8ZONE VIEW 16ZONE
CHO/REV
MFX ON/OFF
ZONE EQ screen
ZONE MUTE, SOLO
PAN/LEV
CHORUS
REVERB
PAN
LEVEL
Level mater
Scene NameTone Name
Main level meter
Solo and mute of each
output
VIEW OUT
Each output level
On/off of
each effect
Parameter Value Explanation
PAGE [E1]
knob
Switches the zones that are shown (VIEW).
8 ZONE Show 8 zones.
16 ZONE Show 16 zones.
OUT
Show the volume of MAIN, SUB, and ANALOG
output.
[E2]
PAN/LEV,
CHO/REV
Switches the indication in the zone area.
CHO SEND
[E5] knob *1
0–127
Specifies the chorus send amount of the current
zone.
REV SEND
[E6] knob *1
0–127
Specifies the reverb send amount of the current
zone.
Parameter Value Explanation
PAN [E5]
knob *2
L64–R63
Specifies the pan (stereo position) of the current
zone.
LEVEL [E6]
knob *2
0–127 Specifies the level (volume) of the current zone.
LEVEL [E6]
knob *3
0–127
Specifies the level of MAIN, SUB, and ANALOG
output.
<MFX> OFF, ON Turns MFX on/off for each zone.
<IFX1>,
<IFX2>,
<CHO>,
<REV>,
<CMP>,
<MEQ>,
<AFX>
OFF, ON Turn each effect on/off.
<SOLO> OFF, ON Solo setting for each zone.
<MUTE> OFF, ON Mute setting for each zone.
<TONE No.> - Selects the tone of each zone.
*1 When the [E2] indication is PAN/LEV
*2 When the [E2] indication is CHO/REV
*3 When the [E1] indication is VIEW OUT
NOTE
The “solo” and “mute” settings that can be edited in the MIXER screen refer to
“zone solo and mute.” Be aware that these are different functions than the
“track solo and mute” that are accessed in the PATTERN screen, and operate
independently. Zones that are muted in the MIXER screen do not sound when
you play the keyboard, but muting a zone in the PATTERN screen does not
affect how it can be played by the keyboard.
MEMO
By using the PAD MODE Zone Solo and Zone Mute functions, the “solo” and “mute”
settings of the MIXER screen can also be operated by pressing pads (p. 76).
