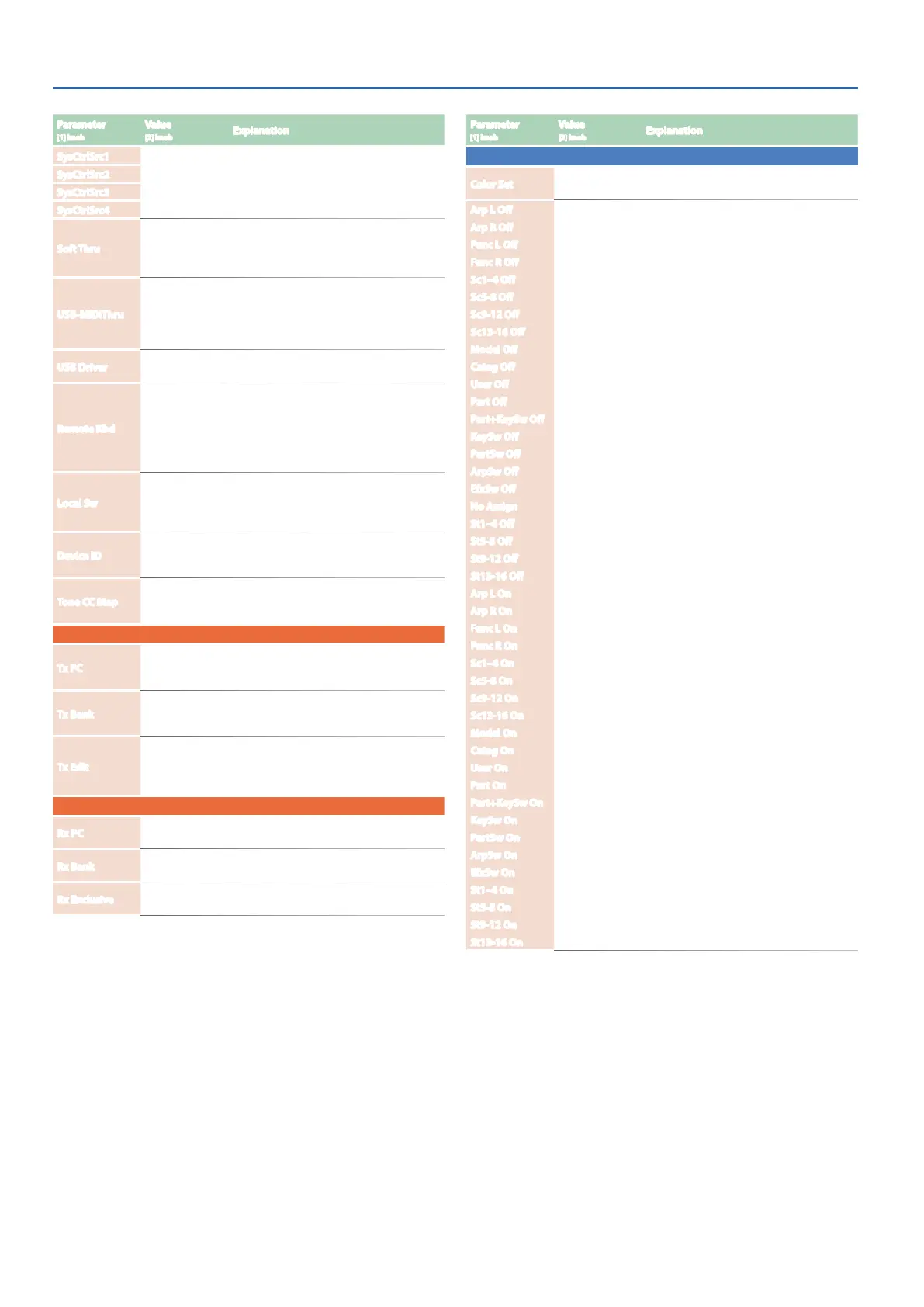

Roland JUPITER-X User Manual

JUPITER-X Owner’s Manual Ver. 3.0 and later
30
Parameter
[1] knob
Value
[2] knob
Explanation
SysCtrlSrc1
OFF, CC01-
CC31, CC33-
CC95, BEND, AFT
Specify the MIDI messages that will be used
as system controls.
SysCtrlSrc2
SysCtrlSrc3
SysCtrlSrc4
Soft Thru
OFF, ON
If this is ON, MIDI messages that are
input from the MIDI IN connector are re-
transmitted without change from the MIDI
OUT connector.
USB-MIDIThru
OFF, ON
Specifies whether MIDI messages received at
the USB COMPUTER port/MIDI IN connector
are retransmitted without change from the
MIDI OUT connector/USB COMPUTER port
(ON) or are not retransmitted (OFF).
USB Driver
GENERIC,
VENDOR
Specifies the USB driver setting.
Remote Kbd
OFF, MIDI IN, USB
COM, USB MEM
Sets which connector is used for input when
you use an external MIDI keyboard instead of
the keyboard of the JUPITER-X. In this case,
the MIDI transmit channel of the external
MIDI keyboard does not matter.
Normally you will leave this “OFF”.
Local Sw
OFF, ON
Turns on/off the connection between the
controller section (keyboard, PITCH, MODE,
panel buttons and sliders, pedals, etc.) and
the internal sound engine.
Device ID
17–32
When transmitting and receiving system
exclusive messages, the device ID numbers of
both devices must match.
Tone CC Map
OFF, ON
Sets whether control change messages (CC)
for the tone parameters are transmitted/
received (ON) or not (OFF).
MIDI Tx
Tx PC
OFF, ON
Specifies whether program change messages
will be transmitted (ON) or not be transmitted
(OFF).
Tx Bank
OFF, ON
Specifies whether bank select messages will
be transmitted (ON) or not be transmitted
(OFF).
Tx Edit
OFF, ON
Specify whether changes you make in the
settings of a program will be transmitted as
system exclusive messages (ON), or will not
be transmitted (OFF).
MIDI Rx
Rx PC
OFF, ON
Specifies whether program change messages
will be received (ON) or not be received (OFF).
Rx Bank
OFF, ON
Specifies whether bank select messages will
be received (ON) or not be received (OFF).
Rx Exclusive
OFF, ON
Specifies whether system exclusive messages
will be received (ON) or not be received (OFF).
Parameter
[1] knob
Value
[2] knob
Explanation
SYSTEM COLOR SET
Color Set
1–10
Saves the color settings in each Set number,
and lets you switch between sets.
Arp L Off
Arp R Off
Func L Off
Func R Off
Sc1–4 Off
Sc5-8 Off
Sc9-12 Off
Sc13-16 Off
Model Off
Categ Off
User Off
Part Off
Part+KeySw Off
KeySw Off
PartSw Off
ArpSw Off
EfxSw Off
No Assign
St1–4 Off
St5-8 Off
St9-12 Off
St13-16 Off
Arp L On
Arp R On
Func L On
Func R On
Sc1–4 On
Sc5-8 On
Sc9-12 On
Sc13-16 On
Model On
Categ On
User On
Part On
Part+KeySw On
KeySw On
PartSw On
ArpSw On
EfxSw On
St1–4 On
St5-8 On
St9-12 On
St13-16 On
Off, O, Y, Y (b), W,
W (b), G, G (b), B,
B (b), R, R (b), V, V
(b), W2, R2
Specifies the illumination color of buttons
to which a function is assigned when the
corresponding function is on or off.
Off: Unlit
O: orange,
Y: yellow,
W: white,
G: green,
B: blue,
R: red,
V: violet,
W2: high-brightness white,
R2: high-brightness red
(b) indicates blinking.
