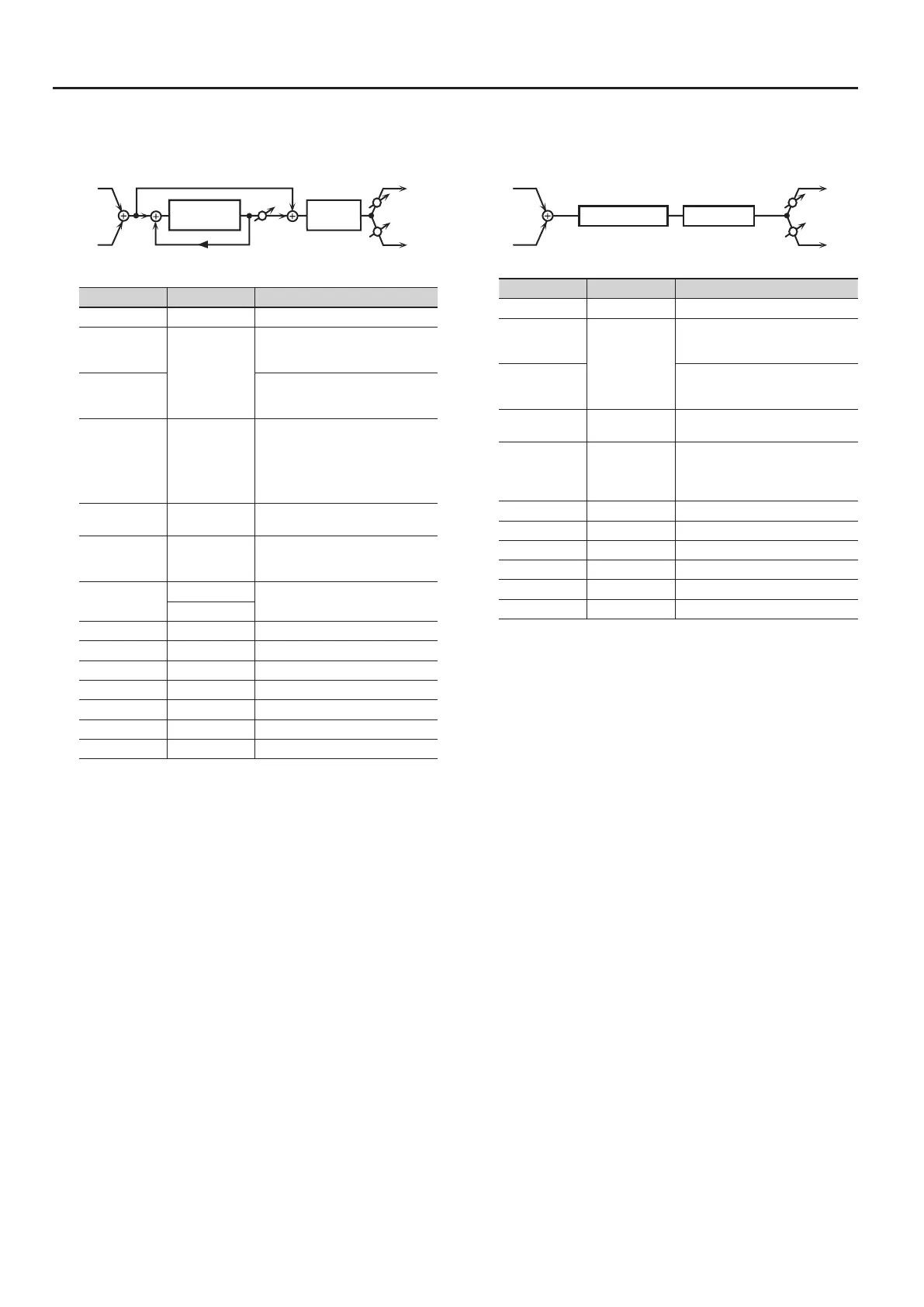

Modulation FX Parameters
12: MULTI STAGE PHASER
Extremely high settings of the phase dierence produce a deep
phaser eect.
Resonance
Mix
L in
R in
L out
R out
Pan R
Pan L
2-Band
EQ
Multi Stage
Phaser
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
MANUAL,
RATE,
RESONANCE,
MIX,
PAN
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Mode
4-STAGE,
8-STAGE,
12-STAGE,
16-STAGE,
20-STAGE,
24-STAGE
Number of phaser stages
Manual # 0–127
Adjusts the basic frequency from
which the sound will be modulated.
Rate (sync sw) # OFF, ON
If this is ON, the modulation is
synchronized to the tempo of the
rhythm (owner’s manual p. 24).
Rate (Hz) #/
Rate (note) #
0.05–10.00 [Hz]
Frequency of modulation
note (p. 31)
Depth 0–127 Depth of modulation
Resonance # 0–127 Amount of feedback
Mix # 0–127 Level of the phase-shifted sound
Pan # L64–63R Stereo location of the output sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
13: INFINITE PHASER
A phaser that continues raising/lowering the frequency at which the
sound is modulated.
Innite Phaser 2-Band EQ
L in
R in
L out
R out
Pan R
Pan L
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
SPEED,
RESONANCE,
MIX,
PAN
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Mode 1, 2, 3, 4
Higher values will produce a deeper
phaser eect.
Speed # -100–+100
Speed at which to raise or lower
the frequency at which the sound is
modulated
(+: upward / -: downward)
Resonance # 0–127 Amount of feedback
Mix # 0–127 Volume of the phase-shifted sound
Pan # L64–63R Panning of the output sound
Low Gain -15–+15 [dB] Gain of the low frequency range
High Gain -15–+15 [dB] Gain of the high frequency range
Level 0–127 Output volume
