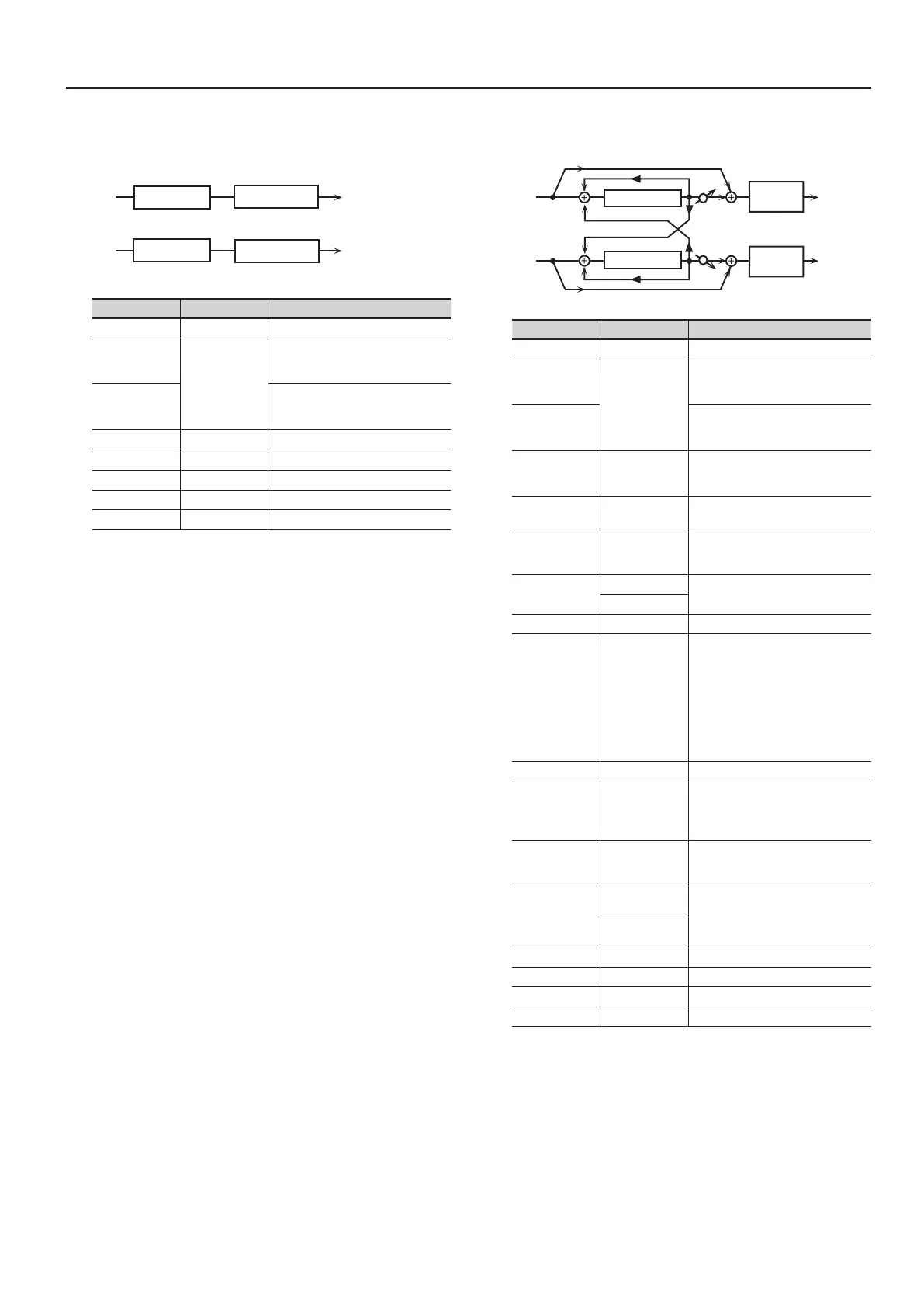

Modulation FX Parameters
10: PHASER 3
This simulates a dierent analog phaser than Phaser 2.
It is particularly suitable for electric piano.
L in
R in
L out
R out
Phaser
2-Band EQ
2-Band EQ
Phaser
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
SPEED,
DEPTH
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Speed # 0–100 Frequency of modulation
Depth 0–127 Depth of modulation
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
11: STEP PHASER
This is a stereo phaser. The phaser eect will be varied gradually.
R in
R out
L in
L out
Step Phaser
Mix
2-Band
EQ
Step Phaser
2-Band
EQ
Mix
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
MANUAL,
RATE,
RESONANCE,
STEP RATE,
MIX
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Mode
4-STAGE,
8-STAGE,
12-STAGE
Number of stages in the phaser
Manual # 0–127
Adjusts the basic frequency from
which the sound will be modulated.
Rate (sync sw) OFF, ON
If this is ON, the modulation is
synchronized to the tempo of the
rhythm (owner’s manual p. 24).
Rate (Hz) #/
Rate (note) #
0.05–10.00
Frequency of modulation
note (p. 31)
Depth 0–127 Depth of modulation
Polarity
INVERSE,
SYNCHRO
Selects whether the left and right
phase of the modulation will be the
same or the opposite.
INVERSE: The left and right phase
will be opposite. When using a mono
source, this spreads the sound.
SYNCHRO: The left and right phase
will be the same. Select this when
inputting a stereo source.
Resonance # 0–127 Amount of feedback
Cross Feedback -98–+98 [%]
Adjusts the proportion of the phaser
sound that is fed back into the eect.
Negative “-” settings will invert the
phase.
Step Rate
(sync sw)
OFF, ON
If this is ON, the modulation is
synchronized to the tempo of the
rhythm (owner’s manual p. 24).
Step Rate (Hz) #/
Step Rate (note)#
0.10–20 [Hz]
Rate of the step-wise change in the
phaser eect
note (p. 31)
Mix # 0–127 Level of the phase-shifted sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
