Modulation FX Parameters

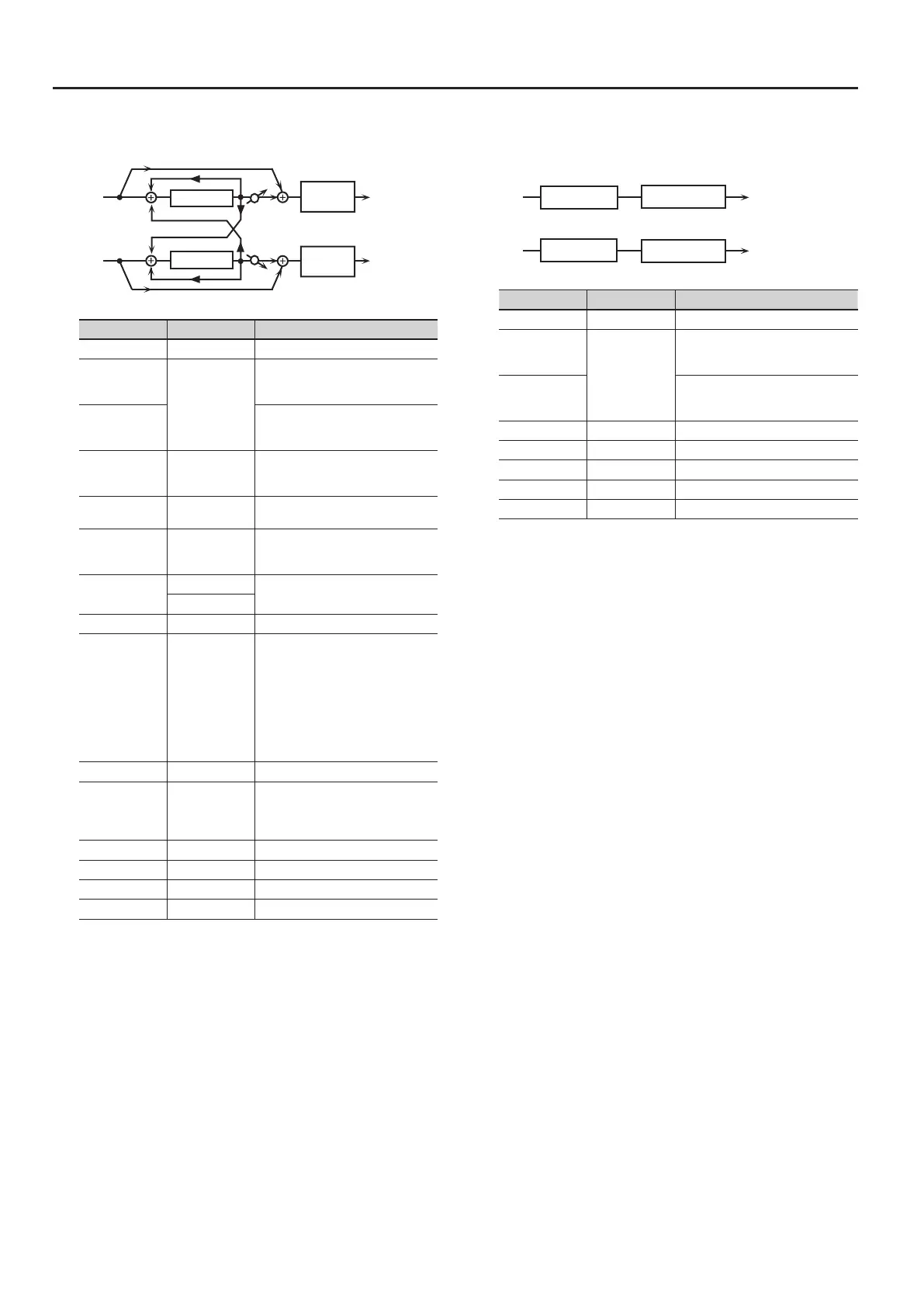

8: PHASER 1
A phase-shifted sound is added to the original sound and modulated.
R in
R out
L in
L out
Phaser
Mix
2-Band
EQ
Phaser
2-Band
EQ
Mix
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
MANUAL,
RATE,
RESONANCE,
MIX
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Mode
4-STAGE,
8-STAGE,
12-STAGE
Number of stages in the phaser
Manual # 0–127
Adjusts the basic frequency from
which the sound will be modulated.
Rate (sync sw) # OFF, ON
If this is ON, the modulation is
synchronized to the tempo of the
rhythm (owner’s manual p. 24).
Rate (Hz) #/
Rate (note) #
0.05–10.00 [Hz]
Frequency of modulation
note (p. 31)
Depth 0–127 Depth of modulation
Polarity
INVERSE,
SYNCHRO
Selects whether the left and right
phase of the modulation will be the
same or the opposite.
INVERSE: The left and right phase
will be opposite. When using a mono
source, this spreads the sound.
SYNCHRO: The left and right phase
will be the same. Select this when
inputting a stereo source.
Resonance # 0–127 Amount of feedback
Cross Feedback -98–+98 [%]
Adjusts the proportion of the phaser
sound that is fed back into the eect.
Negative “-” settings will invert the
phase.
Mix # 0–127 Level of the phase-shifted sound
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level
9: PHASER 2
This simulates an analog phaser of the past.
It is particularly suitable for electric piano.
L in
R in
L out
R out
Phaser
2-Band EQ
2-Band EQ
Phaser
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
RATE,
COLOR
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Rate # 0–100 Frequency of modulation
Color 1, 2 Modulation character
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Level 0–127 Output Level

Roland RD-800 Specifications

General

Keyboard	88 keys (PHA-4 Concert Keyboard: with Escapement and Ebony/Ivory Feel)
Polyphony	128 voices
Display	Graphic LCD 320 x 240 dots
Power Supply	AC 117 V, AC 230 V, AC 240 V (50/60 Hz)
External Storage	USB Flash Memory
Sound Generator	SuperNATURAL Piano
Tones	Over 1100 tones
Effects	Reverb
Weight	21.7 kg / 47 lbs 14 oz
Dimensions	1, 400 (W) x 367 (D) x 140 (H) mm
SMF File Player	Standard MIDI Files (Format 0/1) support
Audio File Player	WAV
Recorder	SMF (Format 0)
Connectors	INPUT jacks (L/MONO, R)
