19
For information on operation modes refer to “Setting the Operation Mode” (p. 22).

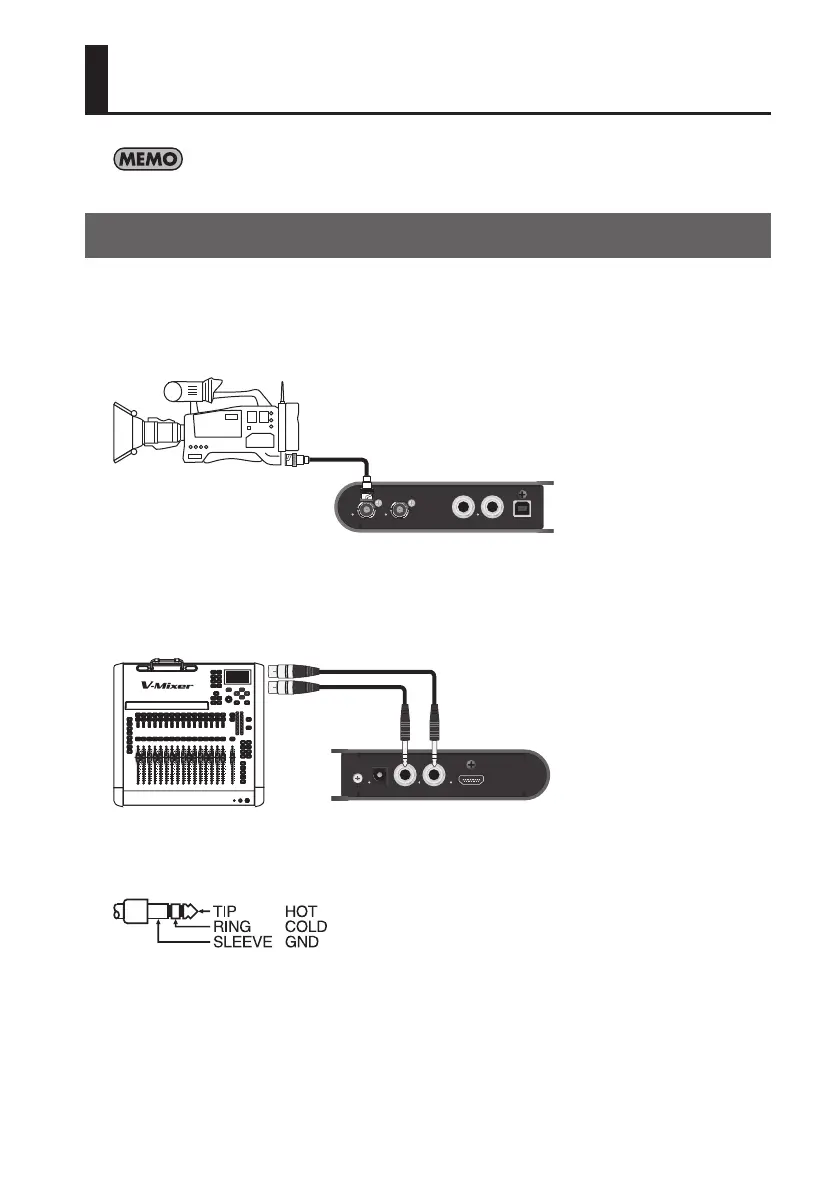

Connecting Source Equipment
Connecting SDI Equipment
Connect a video camera or other device capable of SDI output to the SDI IN
connector.
g.SDI-IN-connection.eps
Connecting Audio Source Equipment
Connecting an Analog Audio Source
Connect an audio mixer or other analog output to the AUDIO IN connectors.
g.AUDIO-IN-connection.eps
* This unit is equipped with balanced (TRS) type jacks. Wiring diagrams for these jacks
are shown below. Make connections after rst checking the wiring diagrams of other
equipment you intend to connect.
g.TRS_jack.eps
Connecting External Equipment
To Next Page
