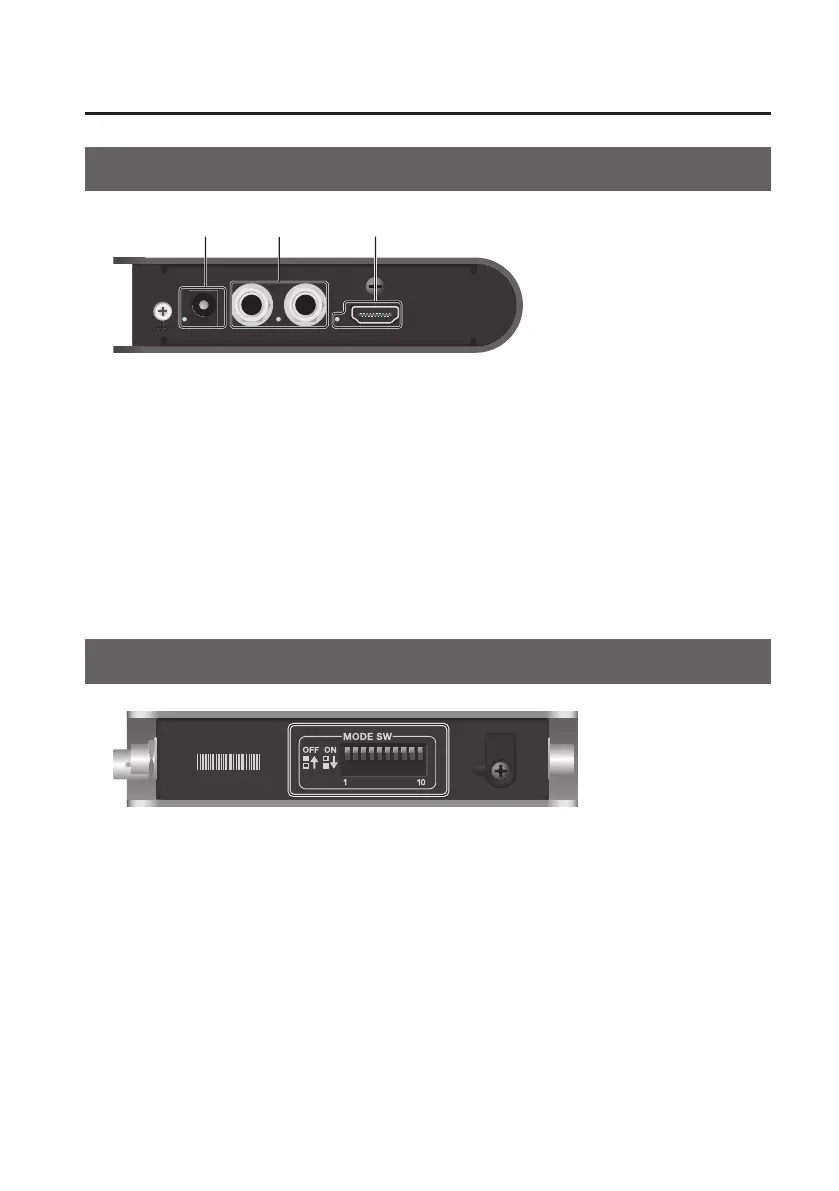

Names of Things and What They Do
Rear Panel
g.rear-panel.eps
12 3
1. DC IN Connector and Indicator
Connect the included AC adapter. The indicator lights up when the VC-1-SH is
receiving power.
2. AUDIO OUT Connectors and Indicator
Connect bi-amp speakers or other audio output equipment.
3. HDMI OUT Connector and Indicator
Connect a TV monitor or other HDMI output equipment.
Side Panel
g.side-panel.eps
Mode Switches (MODE SW)
These set the VC-1-HS’s operation mode. Refer to “Setting the Operation Mode” (p. 22).
* Use a ne-pointed pen or similar object to change the setting of a switch.
