Bread slicer C42 – C42S – C52 – C52S – G42
(Original instructions) – Edit. 02/2013 – Rev.A
It is forbidden to put your hands into the compartment that houses the drawer, except when the
machine is disconnected from the electric power and only the volume occupied by the drawer
itself to perform normal cleaning operations. Once inserted, the crumb collection drawer must be
blocked in position with the threaded knob or with the bracket ref. 2. The safety signs applied on the
front of the drawer and/or above it must be kept in good condition, clean and visible, and in the event
of deterioration the user must apply new signs identical to the original ones.

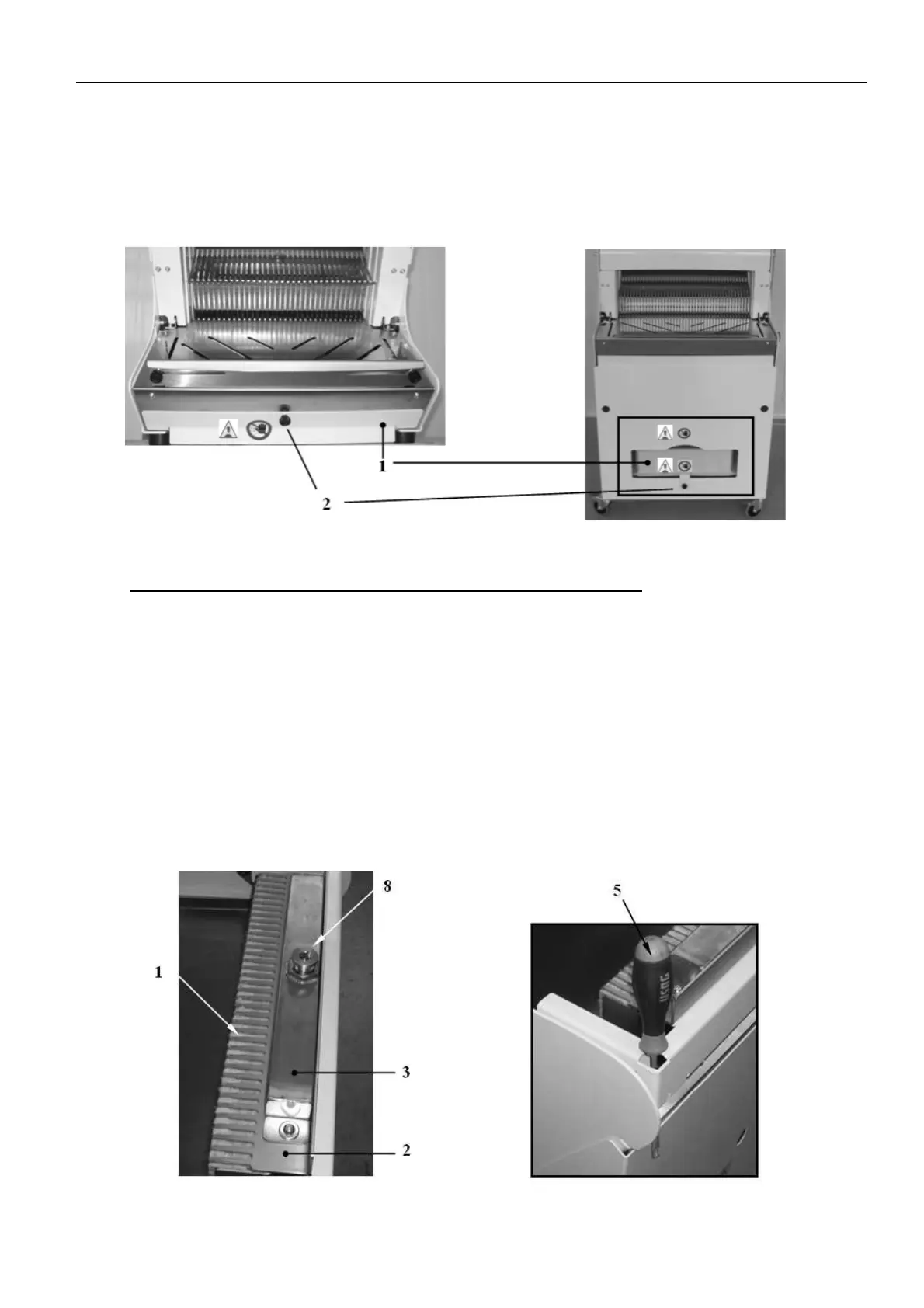

Figure 12
3.4.5 MACHINE IN VERSION WITH BLADE LUBRICATION
With reference to 13, the blade lubrication system consists of a felt pad ref. 1 incorporated in the
bread pusher ref. 2, kept wet with food-grade oil. When the blades enter the comb of the bread
pusher, penetrating into the felt cushion, they get wet. The oil is contained in a tank ref. 3 located
above the bread pusher and falls by gravity onto the felt pad. To add oil to the tank ref. 3 proceed as
follows:
- pull the lever ref. 2 Figure 11 so as to make the bread pusher move completely back
- keeping the lever pulled, insert a sufficiently long screwdriver ref. 5 as in Figure 13
- slowly release the lever, the screwdriver will remain stuck, holding the bread pusher in position.
MIND YOUR FINGERS! Risk of pinching or light crushing
- remove the cap ref. 8 from the tank and top up
- pull the lever just enough to be able to extract the screwdriver and release it, accompanying its
movement
Figure 13
