Bread slicer C42 – C42S – C52 – C52S – G42
(Original instructions) – Edit. A
9
2.3
CONTROL AND COMMAND DEVICES

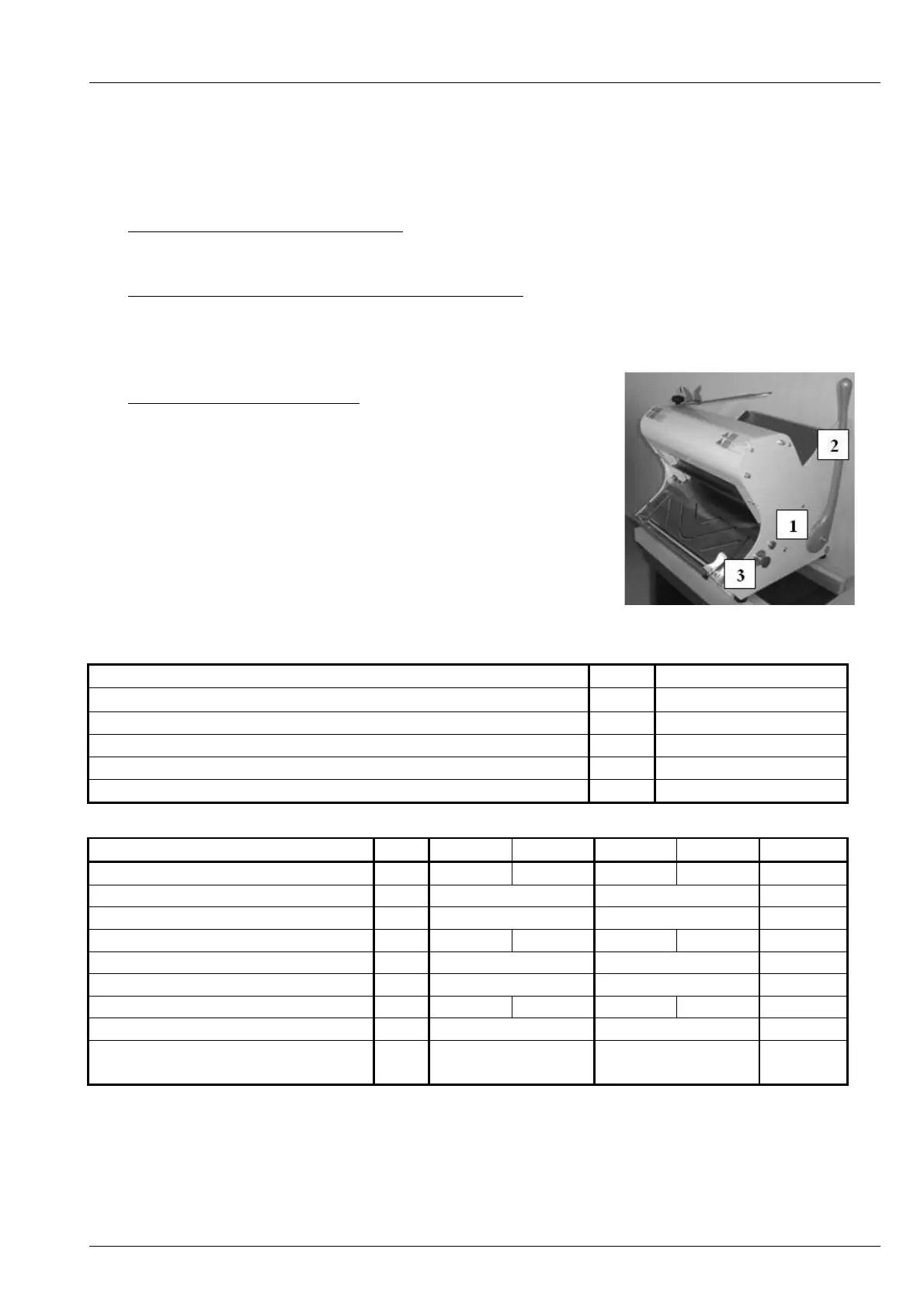

With reference to Figure 5, the machine is equipped with the following command and control
devices:
ref. 1 green luminous button; when the plug is connected to the power socket it lights up, indicating
that the machine is live
Machine in basic or standard version:
when the machine is electrically powered or after having reset the emergency button, pressing
this button enables the start command by means of the manual control lever.
Machine in version WITH BLADE LUBRICATION:
when it is pressed the blades start moving; if it is released without having moved the lever from
rest position, the blades stop; instead, if it is released after having moved the lever from rest
position, the blades keep moving. This facilitates the detachment of the blades from the
lubrication pad, which otherwise would be difficult.
In the version WITH COVER, when the button is released the
blades stop; they will start moving again to make the cut when
the cover is closed
ref. 2 start control lever (machine without lubrication system) or for
keeping the blades moving (machines with lubrication system);
it also has the function of moving back the pusher (and in the
version
WITH COVER
of opening the top guard) to free the space
necessary for loading the bread to be cut onto the surface ref. 1
Figure 1
ref. 3
EMERGENCY STOP
button (red mushroom on yellow
background)
2.4
MAIN TECHNICAL SPECIFICATIONS
Nominal voltage / Frequency – (Tolerance +/- 10%) V/Hz 400 / 50
No. of electrical phases -
3
+ PE
Ambient temperature, min/max °C -5 / +40
Maximum ambient temperature - average over 24 h °C 35
Maximum ambient relative humidity (with T < 40 °C) % 50
Maximum height above sea level m 2000
Table 1 – Specifications common to all machines
Type and model
C42 C52 C42 S C52 S G42
Machine width mm 651 751 651 751 651
Machine depth mm 604 604 604
Machine height mm 752 1251 752
Bread max. nominal length mm 420 520 420 520 420
Bread max. nominal height mm 60 / 160 60 / 160 60 / 160
Blade pitch mm see note see note see note
Weight kg 100 103 98 140 98
Installed power kW 0.75 0.75 0.55
Intervention threshold of protection
device against overloading
A 10 10 10
Table 2 – Specifications of the various types and models
Note. The blade pitch in mm (thicknesses of slices cut) can be 7 - 9 - 10 - 12 - 14 - 15 - 16 – 18. The
pitch is specified by the purchaser on the purchase order submitted for the machine, and cannot
be modified. For safety reasons the pitch cannot in any case be more than 25 mm even if
expressly requested by the customer.
Figure 5
