Use a screw with a length of 8mm (minimum)
to 10mm (maximum) for ceiling mounting.
Screw locking torque: (M4) 4±0.5 N.m
60

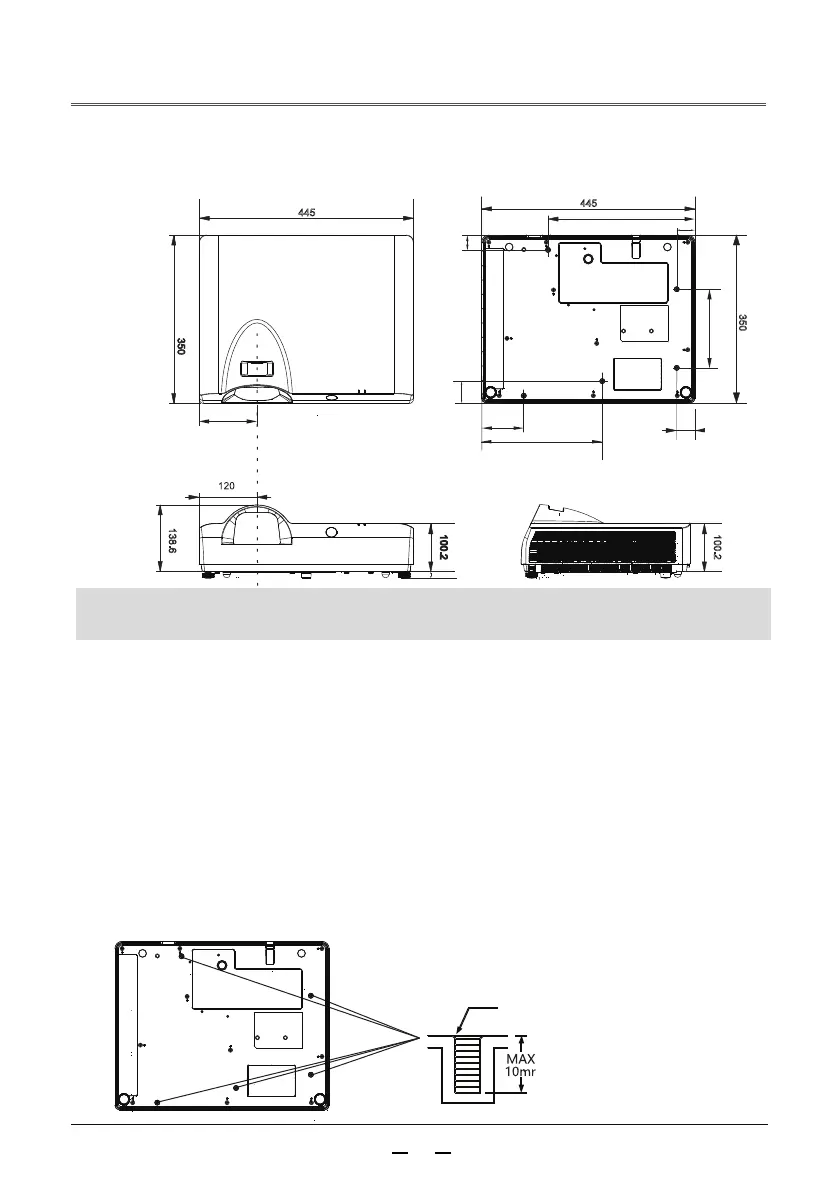

External size
Ceiling mount
hole
Unit: mm
Safety measures for lifting brackets
Installation of the lifting bracket should b
The manufacturer shall not be responsible for the hazards and damage caused by
the use of the lifting bracket that is not purchased from the franchisee even during
the warranty period.
Remove the unused lifting bracket immediately.
Be sure to use a torque screwdriver and d
For details, refer to the operating instructi
The accessories and parts sold separately
Make sure that the screws on the ceiling installation assembly do not come into
contact with the metal parts (plate metals
445
350
120
350
138.6
100.2
100.2
445
350
12.6
164
45
31
38
306
38
88
252
M4
