Rosco Maximizer 3B Asphalt Distributor 6-49
Operation
Manual Operation
The Maximizer 3B comes equipped with the Plus One
Controller that will automatically set and maintain the
operator’s required application rate. Rosco strongly
recommends that the operator depend on the Controller
rather than setting the application rate manually. The
Controller’s calculations are more reliable and accurate.
In the event that manual operation is required, follow the
instructions provided in this section.
Asphalt application rates are dependent upon nozzle
size, pump speed, ground speed and spraybar
width. Carefully review and follow the procedures for
calculating the required settings, simulating a run and
doing a trial run to be sure the desired application rate is
obtained.
Calculations
To obtain the desired performance, use the Slide Rule
Application Guide (Figure 6-40), supplied with the
Maximizer, to determine the settings of the machine.
Determine the type of nozzles used on the spraybar. The
nozzle type will determine the range of pump ow that
will give an acceptable nozzle spray pattern.
Determine the application rate in Gal/Sq. Yd. or Liter/Sq.
Meter for the work to be done. This will be specied by
the job requirements and selected nozzle size.
Determine the ground speed, pump ow and the
spraybar width being used for each specic job.
The slide rule covers spraybar widths from 4 feet to 24
feet in 1 foot increments.
2
30 35 40 45 50 60 70 80 90 100 120 150 200 250 300 350 400
1500120010009008007006005004504003503002502001501201009080
000
30
25
300 350 400 450 500 600 700 800 900 1000 1200 1500 2000 2500 3000 3500 4000
30 35 40 45 50 60 70 80 90 100 120 150 200 250 300 350 400 450 500
.88 1.0 1.25 1.50 2.0 2.5 3.0 3.5 4.0
25 20 15 12 10 98 76 54 3.0 2.5 2.0
800
3000 2500 2000 1500 1200 1000 800 700 600 500 450 400 350 300 250 200
700 600 500 450 400 350 300 250 200 150 120 100 90 80 70 60 50
1.5 1.2 1.0 .9 .8 .7 .6 .50 .45 .40 .35 .30 .25 .20 .15 .12 .10 .09 .08
3456
BAR LENGTH (FT)
PUMP RATE (GPM)
TRUCK SPEED (FPM)
GALLONS REQUIRED
LENGTH OF SHOT (FT)
ROAD WIDTH (FT)
LOOSE DEPTH (IN)
ROAD LENGTH (FT)
CUBIC YA RDS
APPLICATION RATE (GALLONS PER SQ YD)
78910111213141618202224

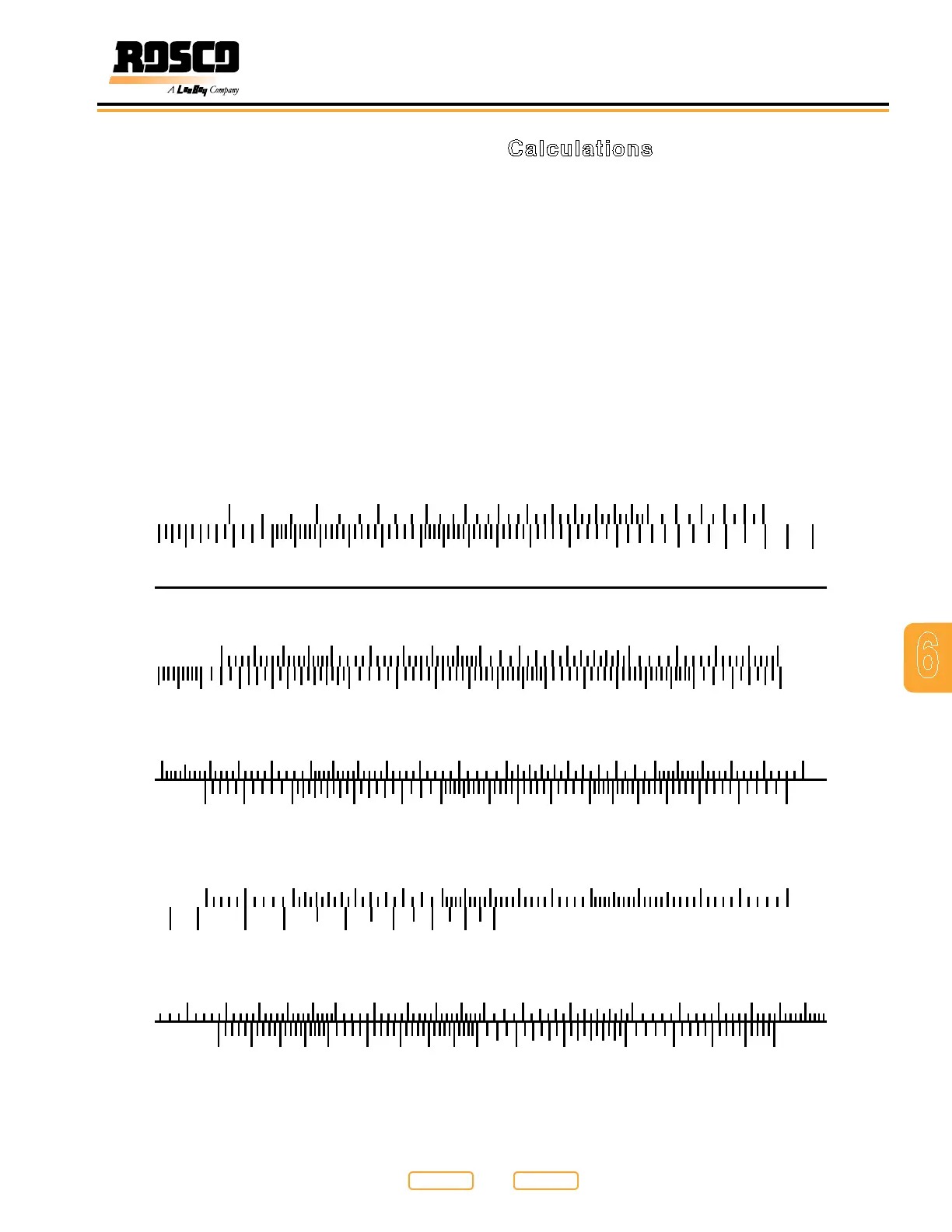

Slide Rule Application Guide
Figure 6-40
