Rosco Maximizer 3B - Main In-Cab Control Panel

5-6 Rosco Maximizer 3B Asphalt Distributor
Component Location
Main In-Cab Control Box
12
12
16
1413
54
7
9106
81
1
15
3
12

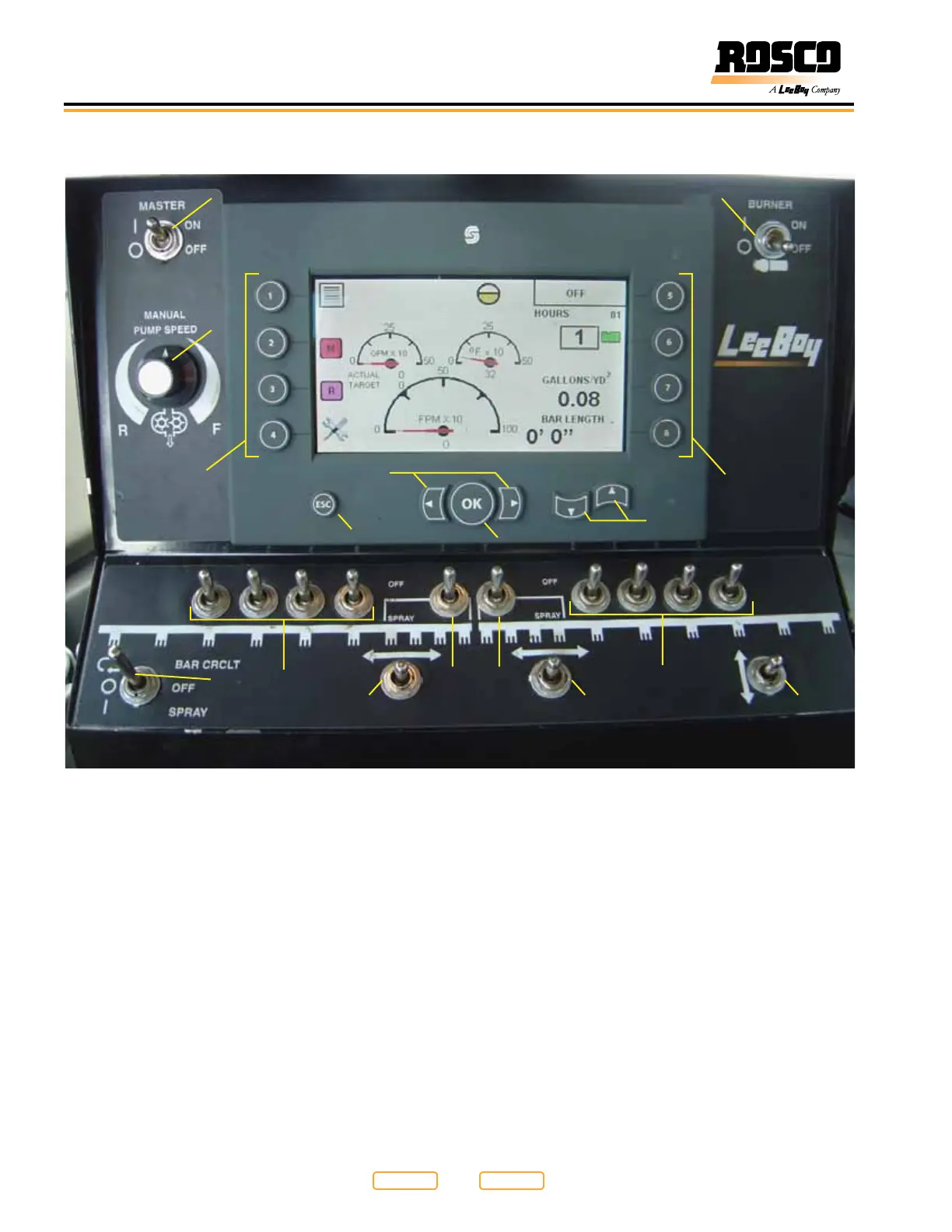

Main In-Cab Control Panel
Figure 5-2
1 - Master Control Switch
2 - Burner Control Switch
3 - Manual Pump Speed Control
4 - Spraybar Master
5 - 1 ft. Spray Nozzle Activation - Left Bar
6 - 1 ft. Spray Nozzle Activation - Right Bar
7 - Left Spraybar Extend / Retract
8 - Right Spraybar Extend / Retract
9 - Left 4 ft. Spray Nozzle Activation Switch
10 - Right 4 ft. Spray Nozzle Activation Switch
11 - Spraybar Raise / Lower Switch
12 - Soft Keys
13 - ESC Button
14 - OK Button
15 - Navigation Buttons (Left / Right)
16 - Navigation Buttons (Up / Down)
