Rosco Maximizer 3B - Run Screen Operation

5-12 Rosco Maximizer 3B Asphalt Distributor
Component Location
Run Screen
1
91011
14
2
3
4
5
6
7
8
13
12

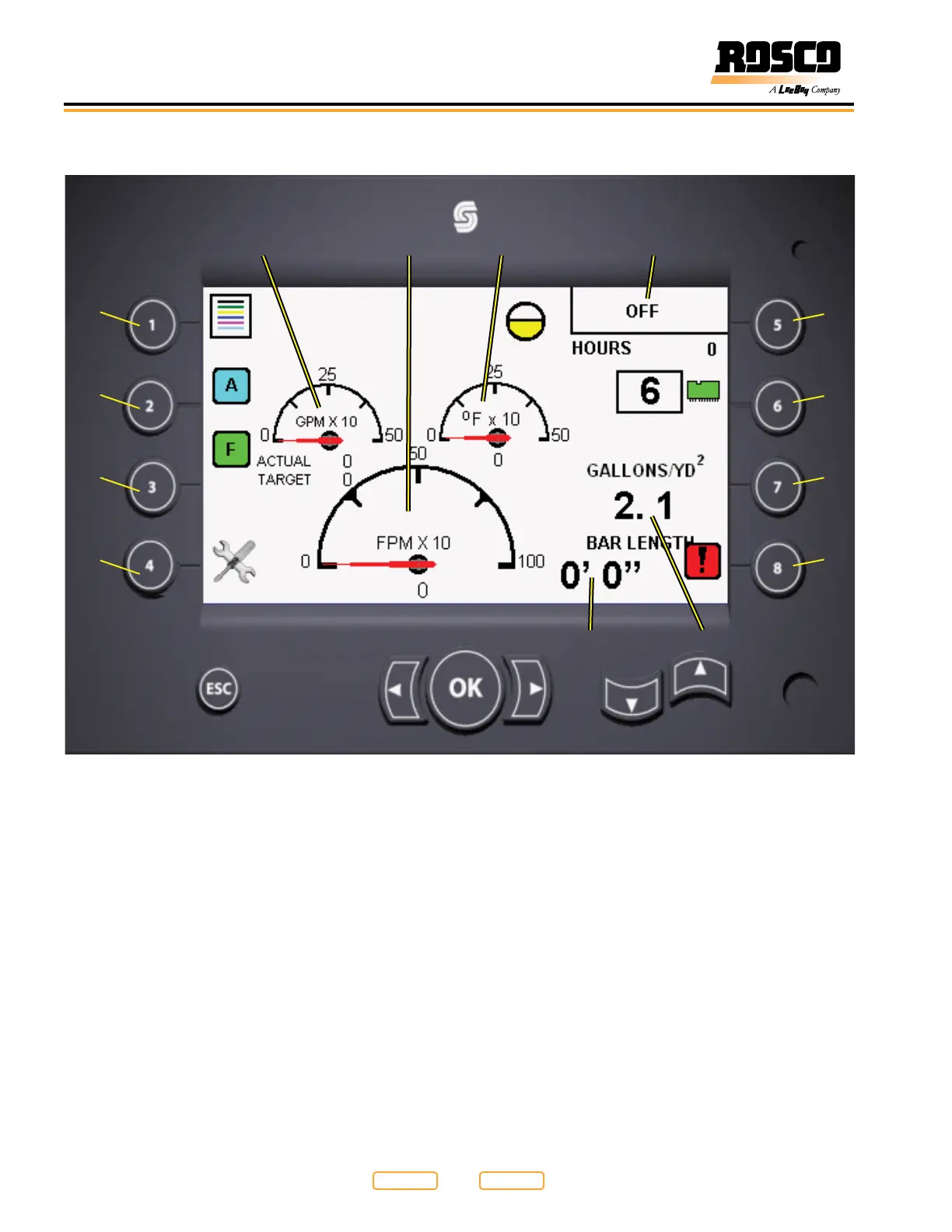

Run Screen
Figure 5-4
1 - Mode Selection Screen
2 - AUTO / MANUAL Selection Mode
3 - REAR / FRONT Control Priority Selection
4 - Setup Parameters
5 - Inactive Button
6 - Memory Presets (1 of 12)
7 - Application Rate (gal / sq. yd.)
8 - Error Fault Screen
9 - Flow Rate Dial (gpm)
10 - Distributor Speed Dial (fpm)
11 - Asphalt Tank Temperature (°F)
12 - Current Mode Indicator
13 - Application Rate (gal / sq. yd.)
14 - Bar Length (ft.-in.)
