7
Rosco Maximizer 3B Asphalt Distributor 7-11
Maintenance

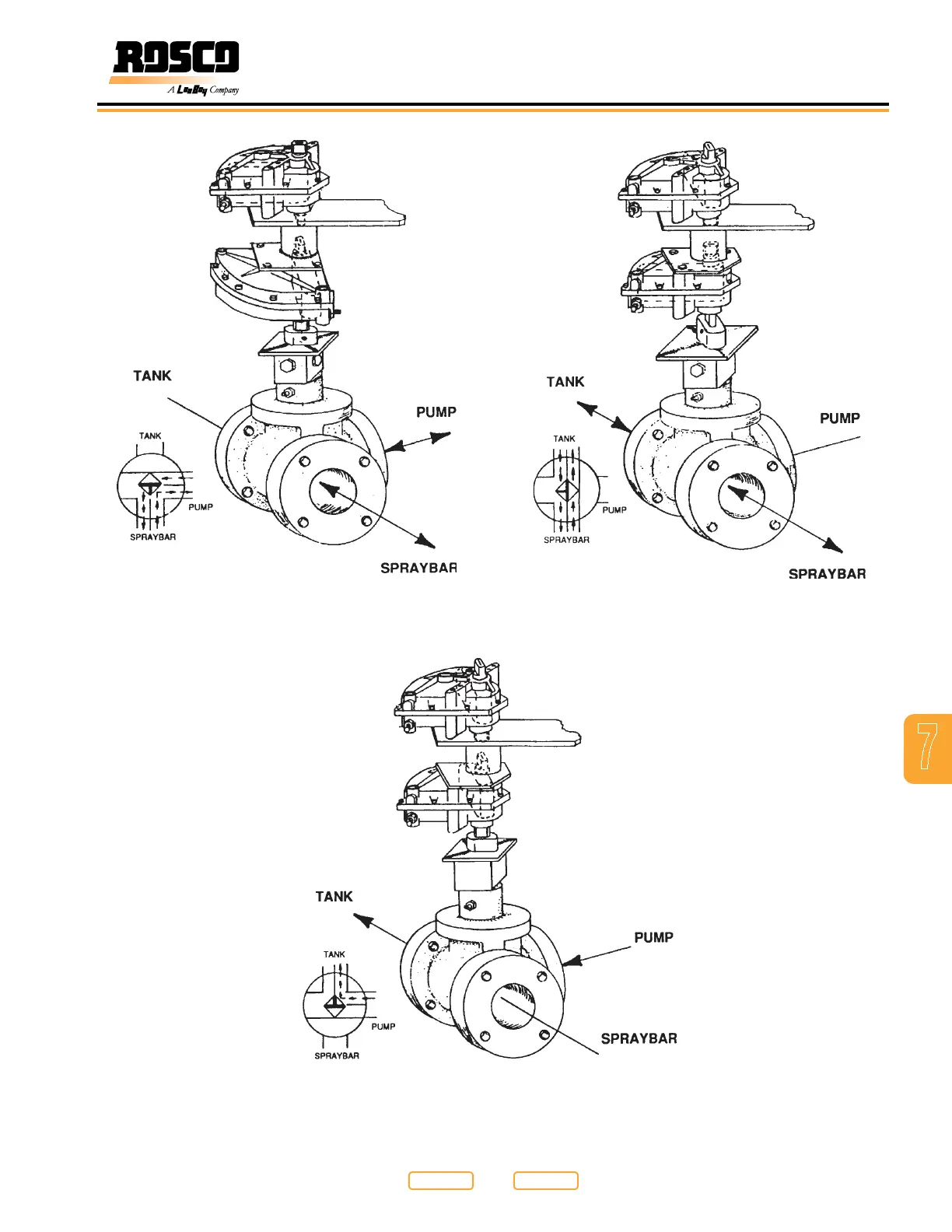

3-Way Valve Position 2
Figure 7-7
Top Solenoid Valve OFF
Bottom Solenoid Valve ENERGIZED
3-Way Valve Position 1
Figure 7-6
Top Solenoid Valve OFF
Bottom Solenoid Valve OFF
3-Way Valve Position 3
Figure 7-8
Top Solenoid Valve ENEGIZED Bottom Solenoid Valve ENERGIZED
