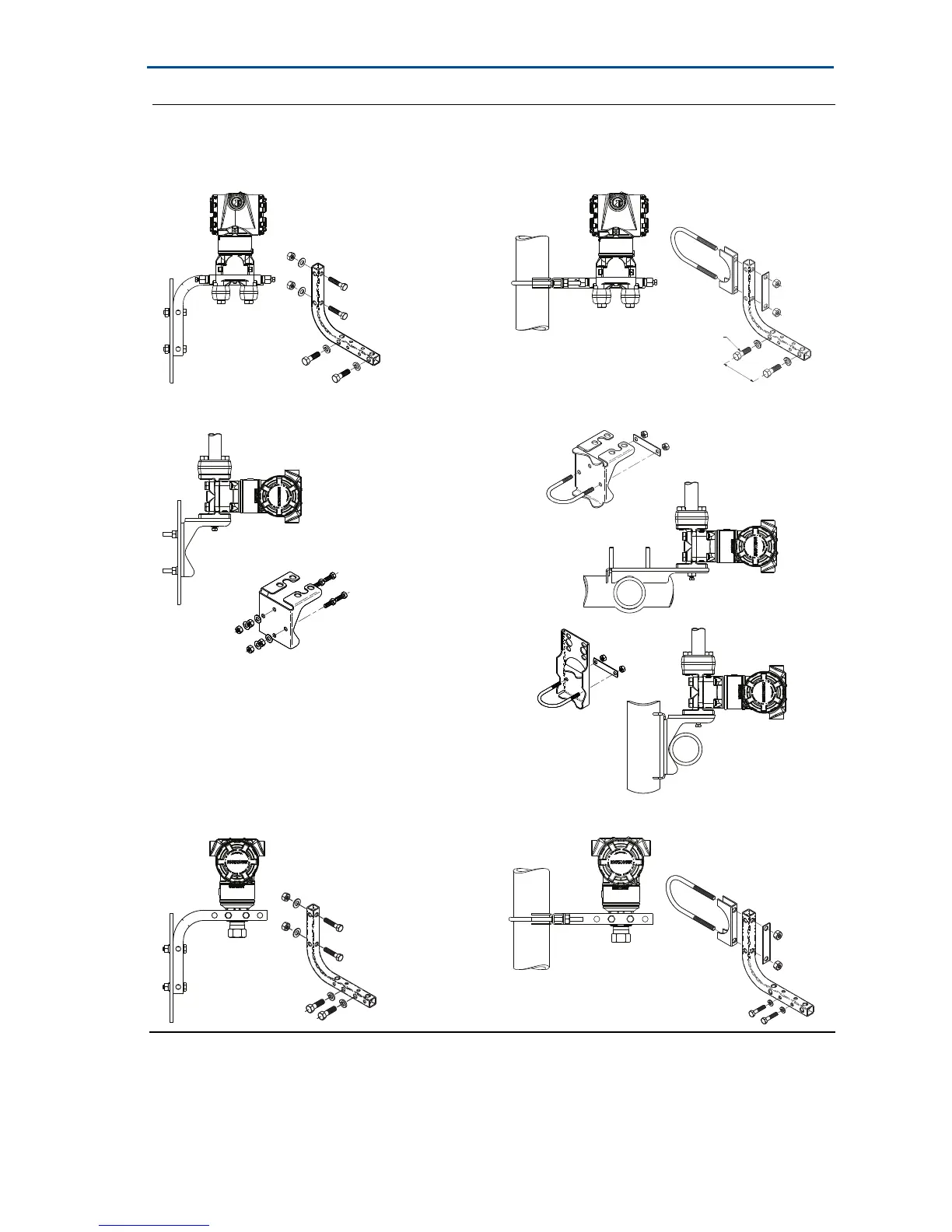

Figure 1. Panel and Pipe Mounting
Panel mount
(1)
1.
5
/16 ⫻ 1
1
/2 panel bolts are customer supplied.
Pipe mount
Coplanar flange
Traditional flange
Rosemount 3051T
