2.0 Transmitter installation
2.1 Mount the transmitter

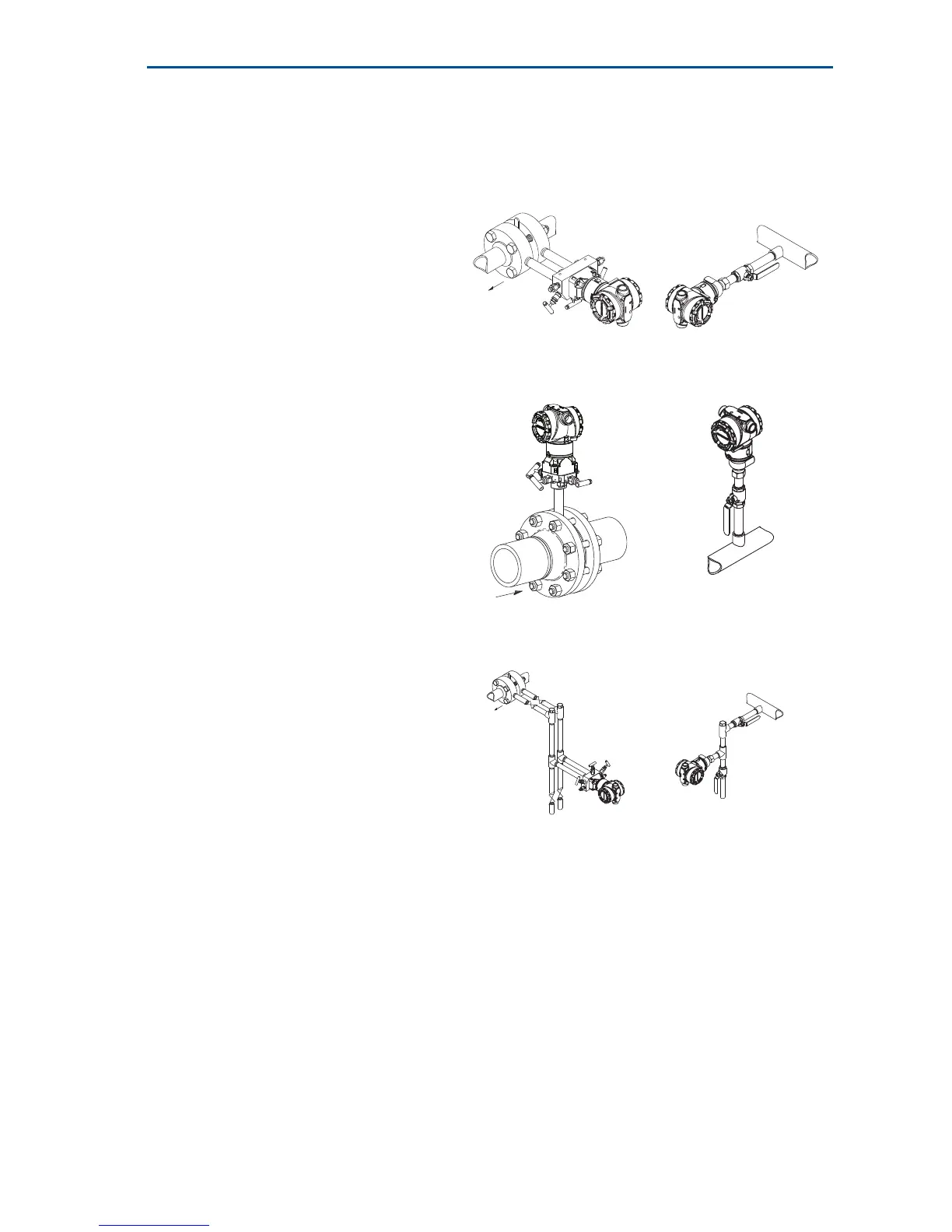

Liquid applications
Coplanar In-line
1. Place taps to the side of the
line.
2. Mount beside or below the
taps.
3. Mount the transmitter so
that the drain/vent valves
are oriented upward.
Gas applications
1. Place taps in the top or side
of the line.
2. Mount beside or above the
taps.
Steam applications
1. Place taps to the side of the
line.
2. Mount beside or below the
taps.
3. Fill impulse lines with
water.
Flow
Flow
Flow
