Rosemount 848T - Reference Information

June 2016
10
Quick Start Guide
4.0 Reference information

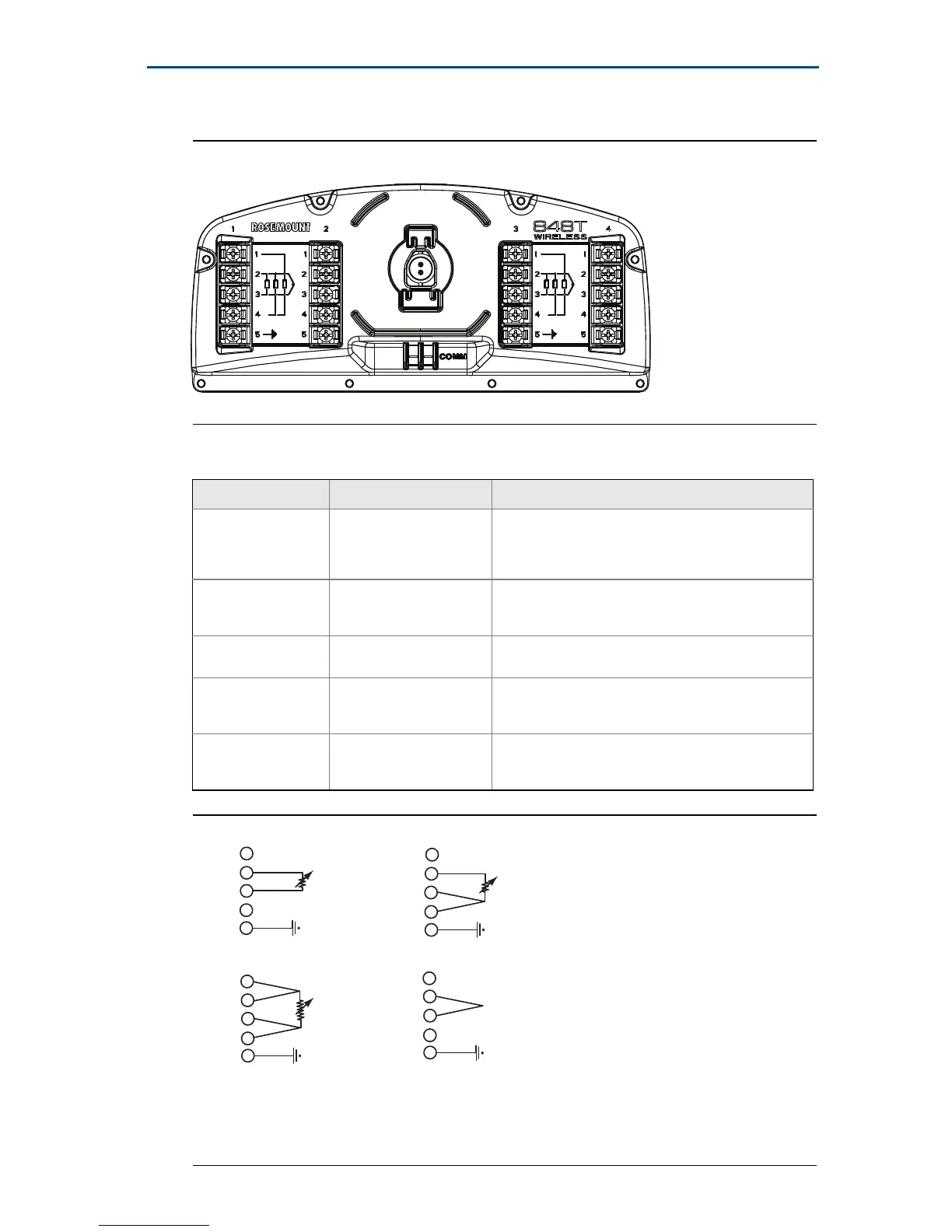

Figure 6. Rosemount 848T Terminal Diagram
Figure 7. Sensor Wiring Diagrams
A. 2-wire RTD, Ohm
B. 4-wire RTD, Ohm
C. 3-wire RTD, Ohm
D. Thermocouple, millivolt
Table 1. Rosemount 848T Fast Key Sequence for Field Communicator
Function Fast Key sequence Menu items
Device Information 1, 1, 13
Manufacturer, Model, Final Assembly Number,
Universal, Field Device, Software, Hardware,
Descriptor, Message, Date, Model Number SI Unit
Control, Country, Device ID
Guided Setup 2, 1
Join Device to Network, Configure Update Rate,
Configure Sensor, Calibrate Sensors, Configure
Alerts
Manual Setup 2, 2
Wireless, Sensor 1, Sensor 2, Sensor 3, Sensor 4,
Device Temperature, Device Information, Other
Wireless 2, 2, 1
Network ID, Join Device to Network, Configure
Update Rate, Configure Broadcast Power Level,
Power Mode, Power Source
Sensor Calibration 3, 4, 1-4
Sensor 1-4, Current Upper Trim, Current Lower
Trim, Lower Sensor Trim, Upper Sensor Trim, Recall
Factory Trim, RTD 2 Wire Offset
+
-
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
A
C
B
D
