Rosemount 848T - Page 4

June 2016
4
Quick Start Guide

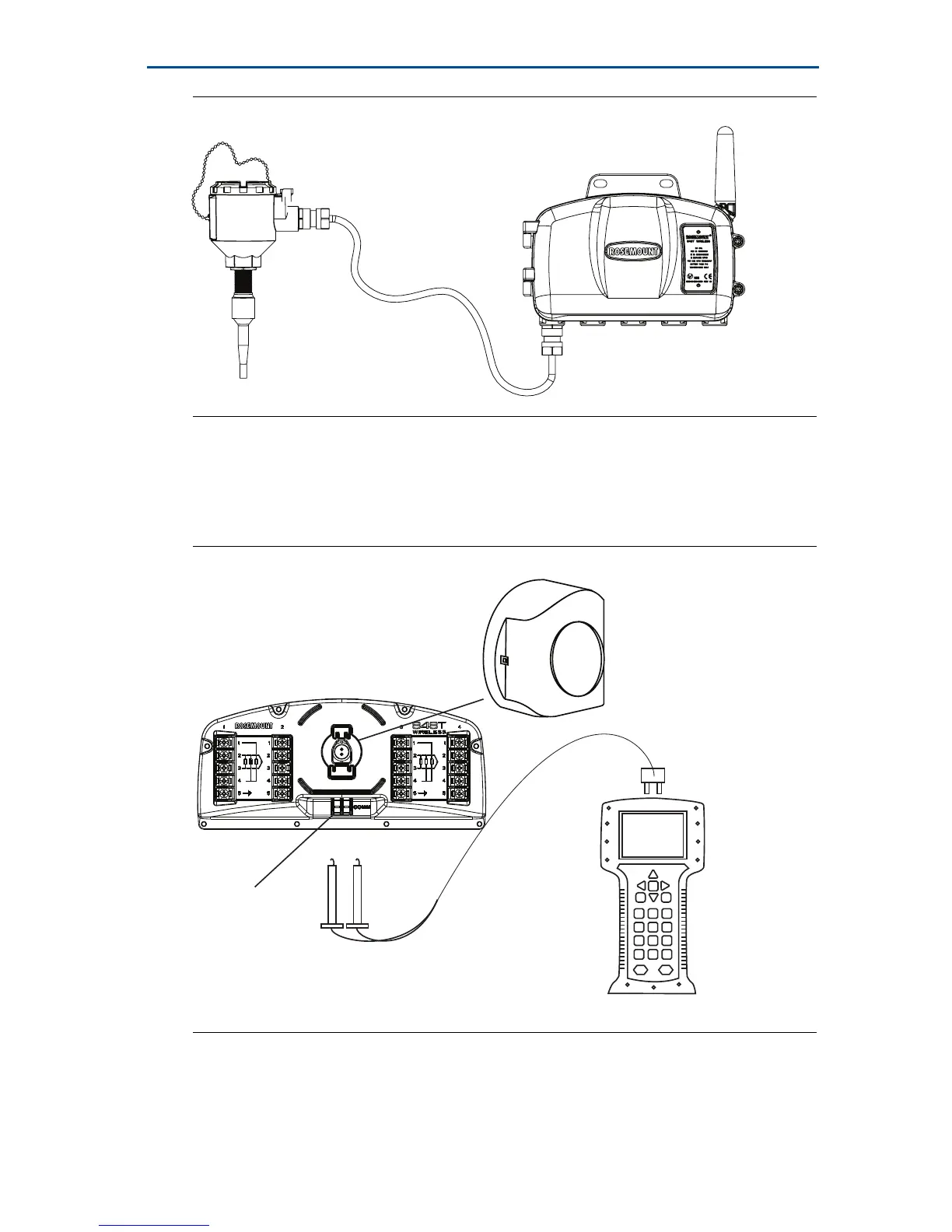

Figure 2. Conduit Plug
1.4 Field Communicator connections
The power module needs to be connected for the Field Communicator to
interface with the Rosemount 848T Wireless.
Figure 3. Connection Diagram
A. Maintenance Port
A
