Quick Start Guide

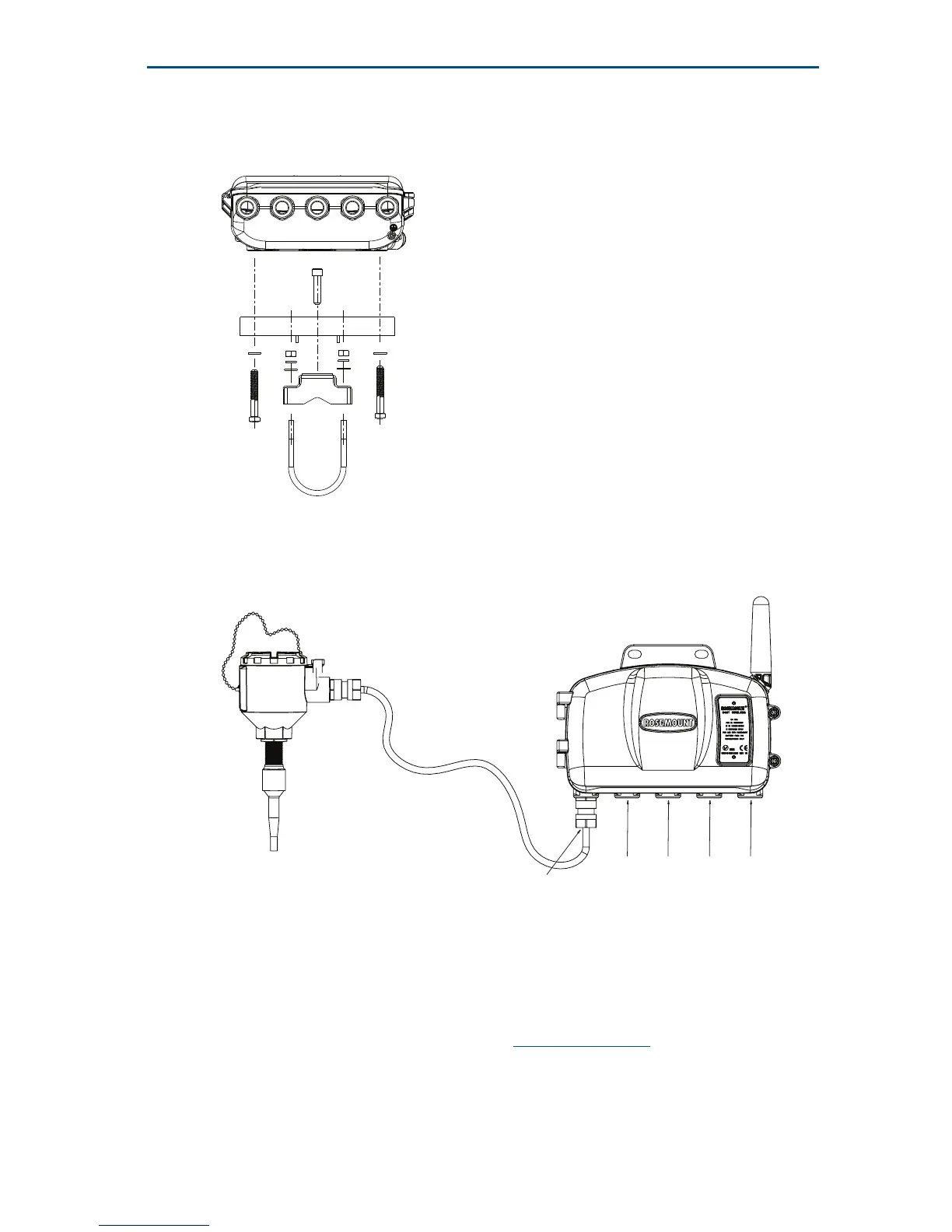

2. To reduce sensor wiring length, mount the Rosemount 848T Wireless
transmitter central to all of the measurements. When installing the
Rosemount 848T Wireless, the conduit entries need to be facing downward. If
using the mounting bracket (Option Code B6), mount to a 2-in. pipe.
3. Run wiring (and conduit, if necessary) from the sensor to the Rosemount
848T. For an easier installation, use the outside conduit entries as shown
below. Any unused conduit entries should be sealed with approved sealant
using the included threaded conduit plugs.
A. Conduit Entry
B. Conduit Plug
4. Pull the wiring through the threaded conduit entry of the 848T.
5. Attach the sensor wiring to the terminals as indicated on the wiring diagram.
Note that Terminal screw 5 is for attaching the shield wire of the sensor to the
device. See Rosemount 848T Wireless Reference Manual for more
information.
