Quick Installation Guide
00825-0100-4663, Rev BC
December 2012
Rosemount 8732
23
Transmitter Wiring Connection
Follow the steps listed below to wire the model 8732E F
OUNDATION Fieldbus transmitter:
1. Ensure Power Conditioner and cable meet the requirements shown above in 'Field
Wiring'
2. Ensure the transmitter is not powered
3. Route Fieldbus wire through appropriate conduit entry
4. Connect one Fieldbus wire to terminal 1 and the other Fieldbus wire to terminal 2. The
8732E Fieldbus transmitter is polarity insensitive. See Figure 20.
When wiring to screw terminals, crimped lugs are recommended. Tighten the terminals to
ensure adequate contact. Both transmitter covers must be fully engaged to meet explosion
proof requirements. Do not remove the transmitter covers in an explosive atmosphere when
the transmitter is powered.

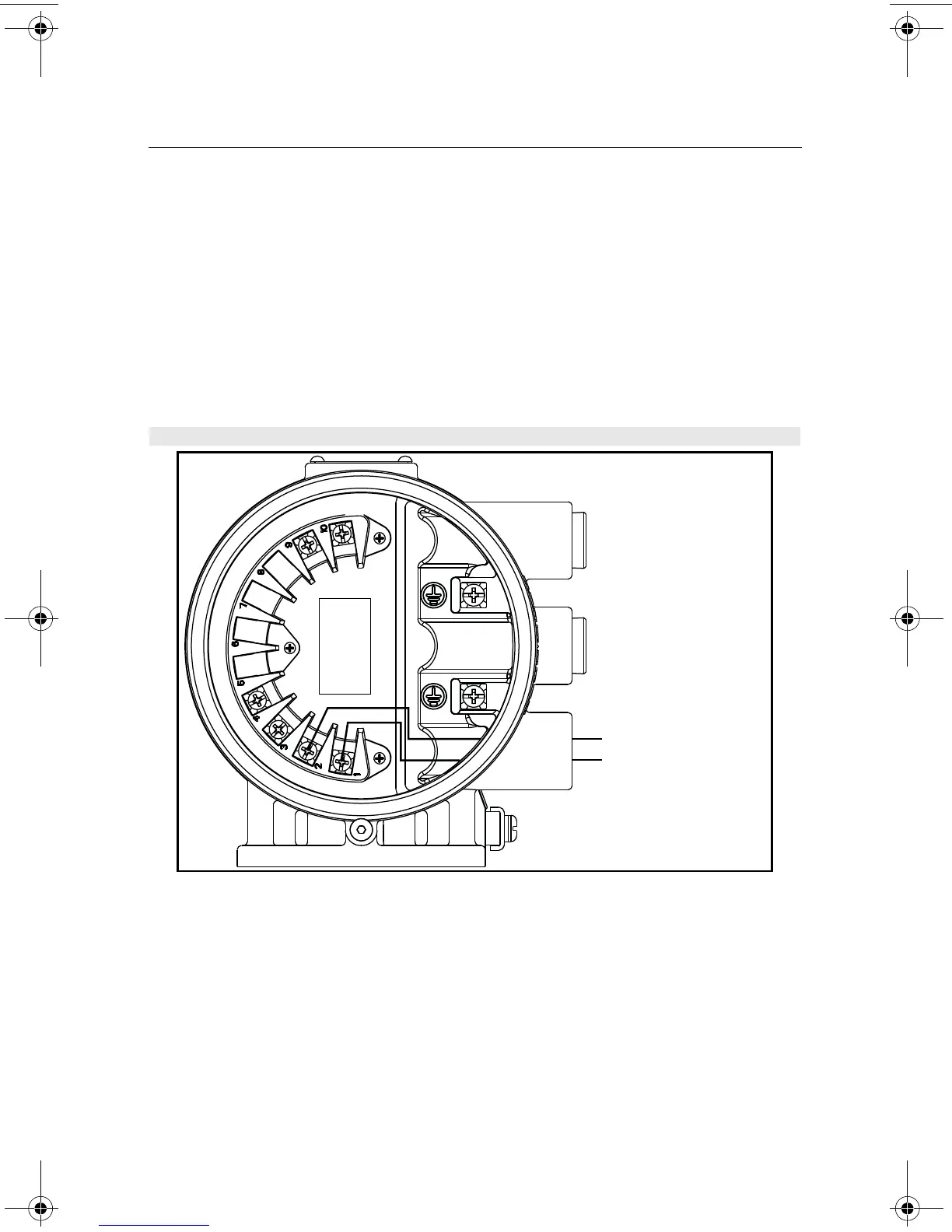

Figure 20. 8732E FOUNDATION Fieldbus Wiring Diagram
