Power Conditioning
Each fieldbus power supply requires a power conditioner to decouple the power supply
output from the fieldbus wiring segment.

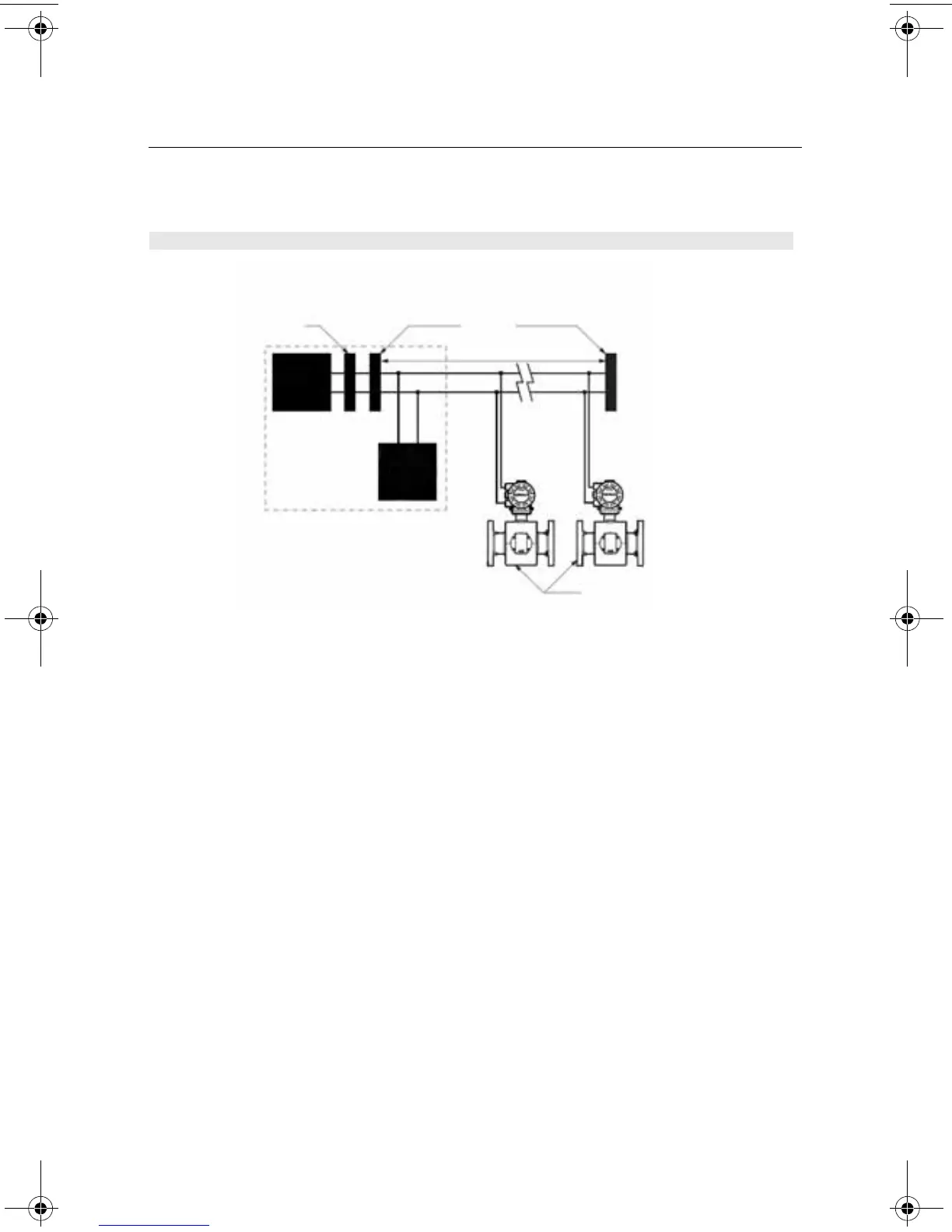

Figure 19. Power Connections
Terminators
Fieldbus
Segment
(Trunk)
(Spur)
(Spur)
Power
Conditioner
Control Room
Devices 1 through 11*
FOUNDATION
Fieldbus
Host
Power
Supply
*Intrinsically safe installations may
allow fewer devices per I.S. barrier.
