AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual
- 35 -
The router cannot detect PPTP/L2TP/Big Pond connections with your ISP. If your ISP uses one
of these protocols, then you must configure your connection manually.
4.4.2 LAN
Choose menu “Network → LAN”, you can configure the IP parameters of the LAN on the screen
as below.

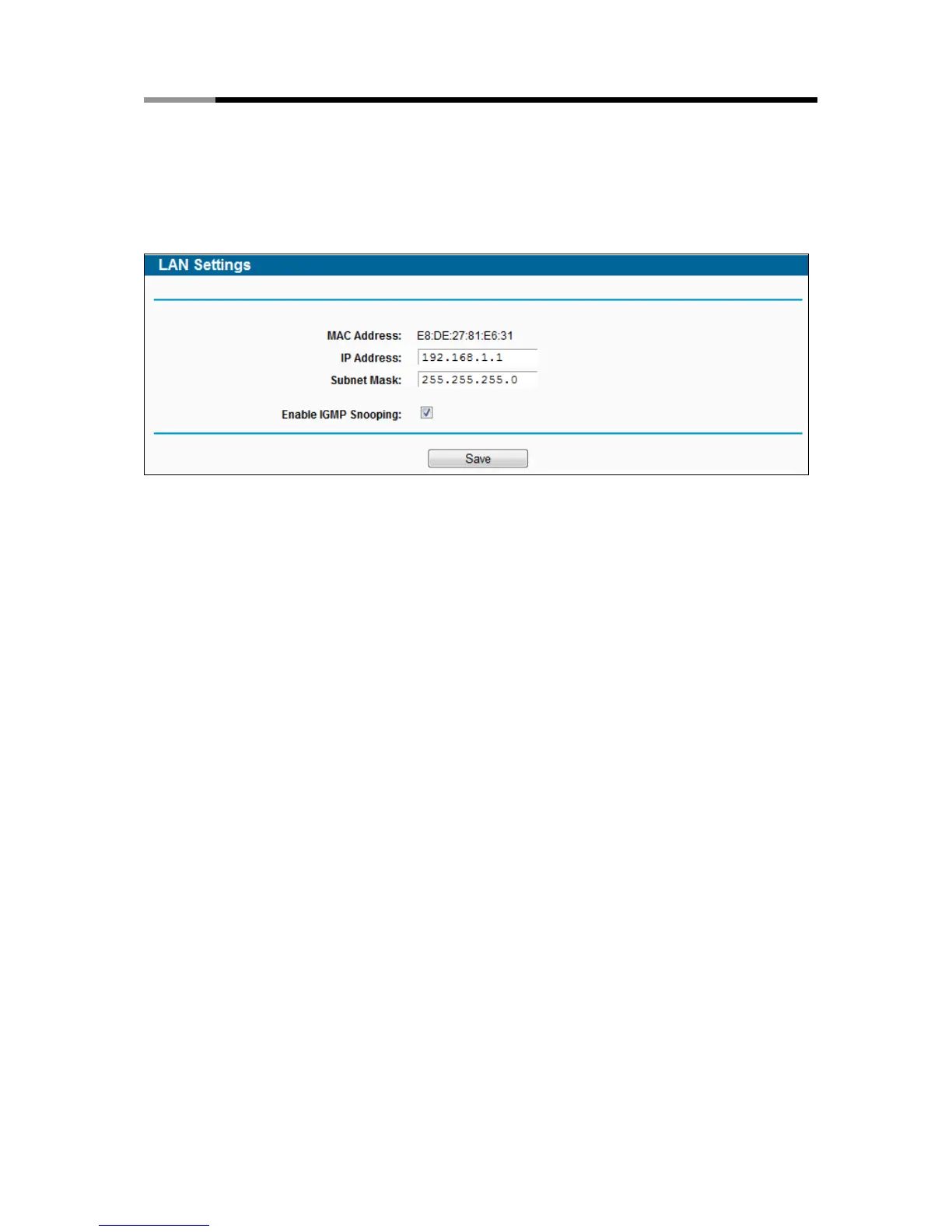

Figure 4-9 LAN Settings
MAC Address - The physical address of the router, as seen from the LAN. The value can't
be changed.
IP Address - Enter the IP address of your router or reset it in dotted-decimal notation
(factory default: 192.168.1.1).
Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
Note:
1) If you change the IP Address of LAN, you must use the new IP Address to log in the router.
2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP
server will change accordingly at the same time，while the Virtual Server and DMZ Host will
not take effect until they are re-configured.
4.4.3 MAC Clone
Choose menu “Network → MAC Clone”, you can configure the MAC address of the WAN on
the screen below, Figure 4-10:
