ULTRIX-FR12 Installation Guide (v4.0) Cabling Designations • 47
AUX Ports
The AUX A and AUX B ports can only be used for Ultriscape Head outputs.(Figure 24)
 The AUX C and AUX D ports are not implemented in the Ultrix v5.1.5 software.
PSU Port
The power supply connector requires a 15VDC connection to an external power supply. (Figure 25)
Refer to the Ross Configuration Tool on our website for the power requirements of your
configuration.
USB Port
The USB Type B port is used for recovery only. (Figure 26)

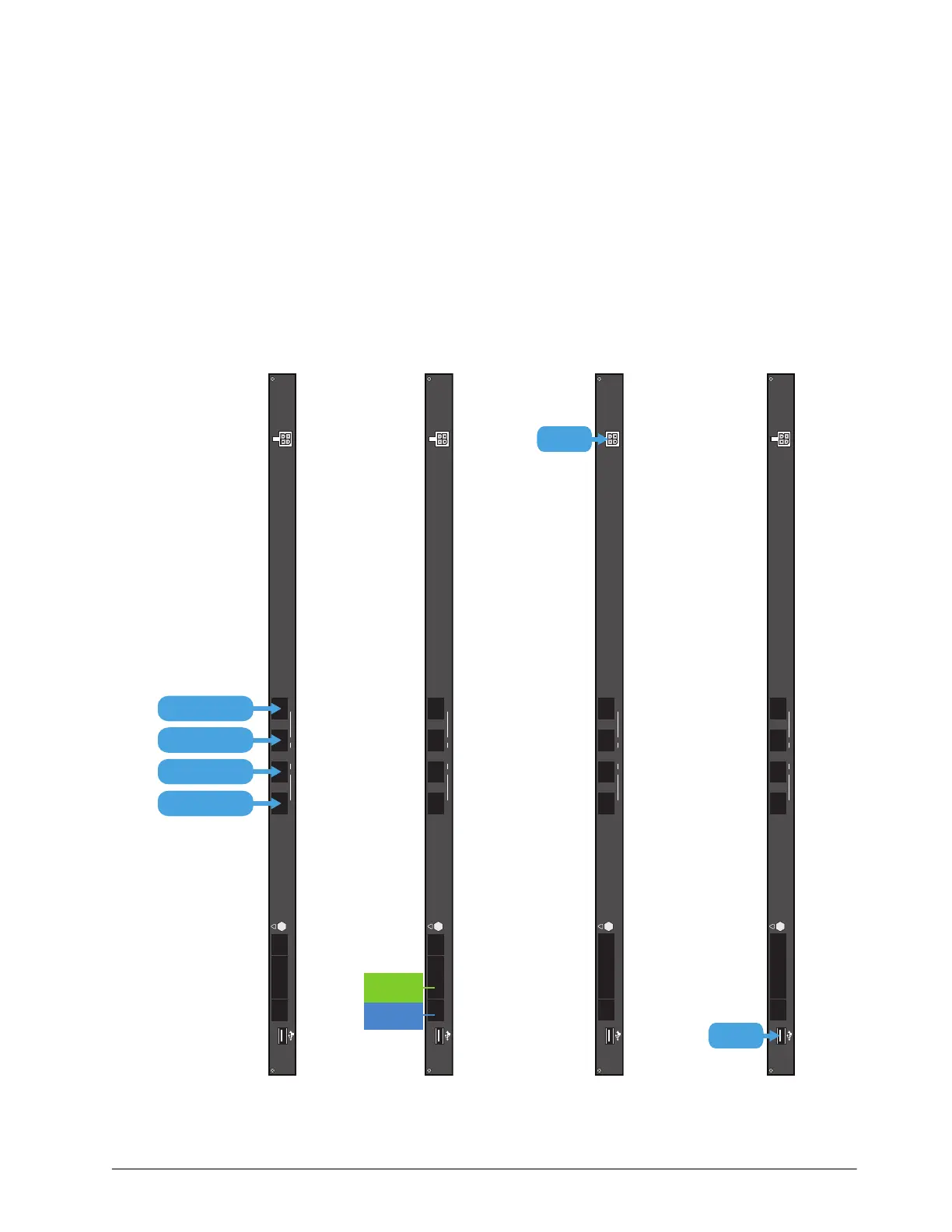

Figure 23 QSFP28 Ports Figure 24 AUX Ports Figure 25 PSU Port Figure 26 USB Port
Ultrix IPX-IO
CDAB
!
1
324100G
PORT 2
PORT 4
PORT 1
PORT 3
Ultrix IPX-IO
CDAB
!
1
324100G
UltriScape
Head 1
UltriScape
Head 2
Ultrix IPX-IO
CDAB
!
1
324100G
PSU
Ultrix IPX-IO
CDAB
!
1
324100G
USB
