AY-B9350 User Manual 50
To appl y the setting value, press [OK] button or press [BACK] button to cancel and to
move to the upper menu.
3.7.5. External Terminal Se tup

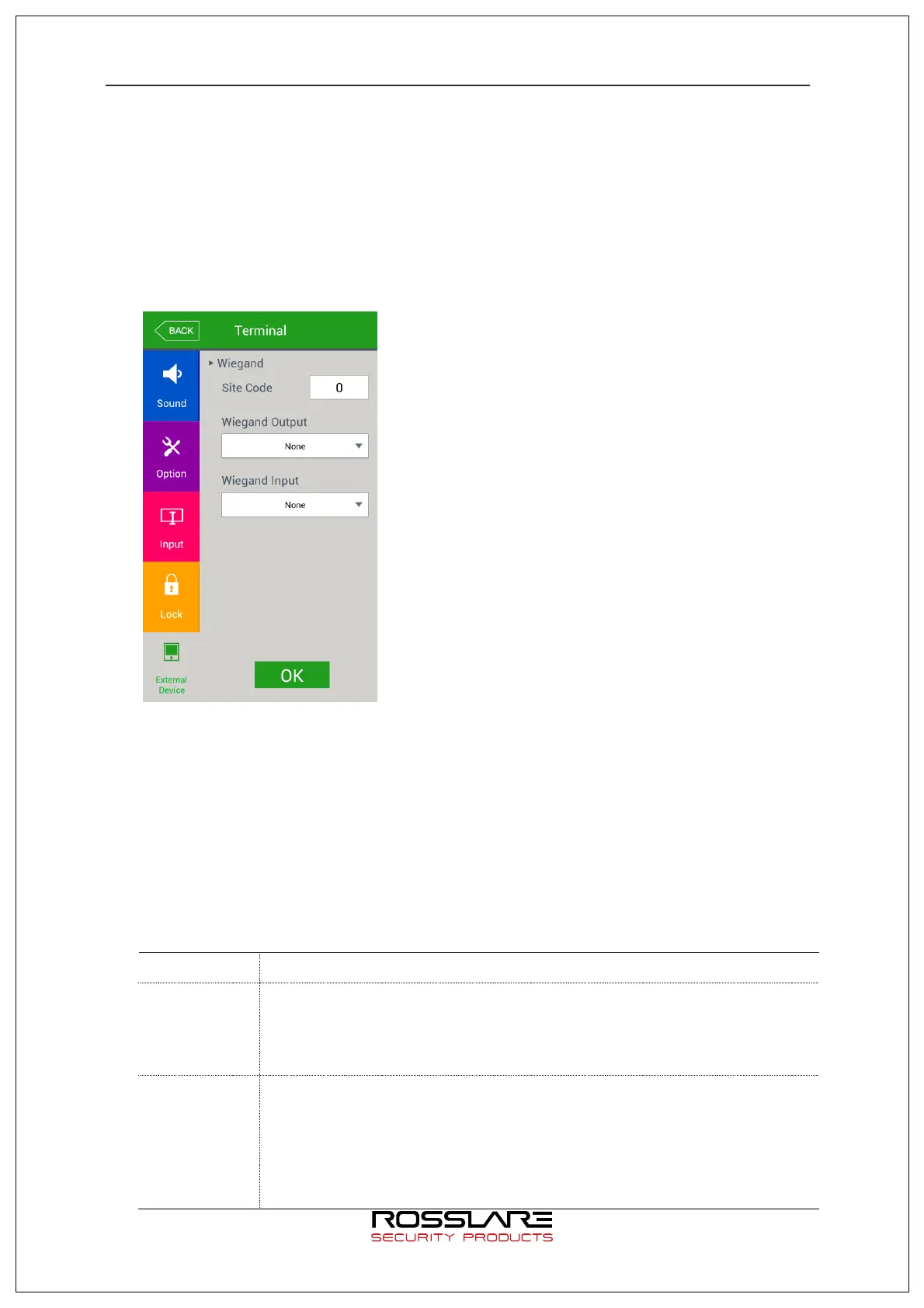

If you select the [Terminal]->[External device] in the main menu, the following
window appears.
▶ Basic setting : Same with the window at the left
side.
▶Site code
It sets the sitecode value sent in Wiegand output below.
▶Wiegand Output
It is used only when the special controller is equipped running by the Wiegand input.
When the authorization is finished, the data of the following format is sent to the
Wiegand port of the terminal.
None
General case. It does not use Wiegand out port.
26bit
Because it sends “Sitecode[1byte] + User ID[2 byte]”, set the user ID
less or equal than 4 digits.
Send example) In case of SiteCode:045(2Dh), UID:6543(198Fh)
à 1 00101101 0001 1001 10001111 0
34bit
Because it sends “Sitecode[1 byte] + User ID[3 byte]”, set the user ID
less or equal than 7 digits.
But, if the user ID is 8 digits, ignore sitecode and send only the “User
ID[4byte]”.
Send example) SiteCode:001(1h), UID:123456(1E240h)
à 0 00000001 00000001 11100010 01000000 0
