Installation
AY-Q6x50 Family Installation and Programming Manual 13

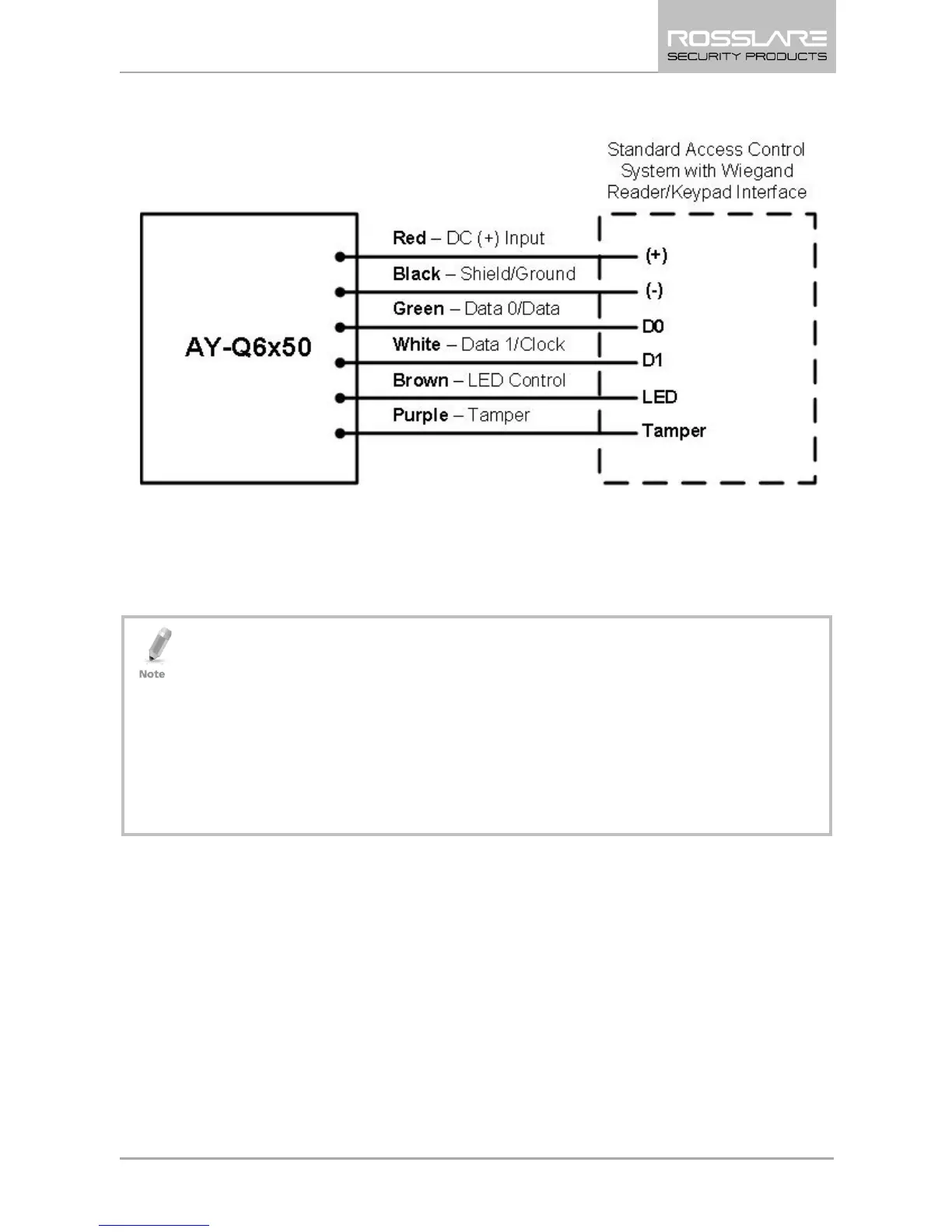

Figure 2: Connecting the Reader to an Access Control System
4. If the tamper output is being utilized, connect the purple wire to
the correct input on the controller.
5. Trim and cover all unused conductors.
• The individual wires from the reader are color coded according the
Wiegand standard.
• When using a separate power supply for the reader, this s
that of the controller must have a common ground.
• The reader’s cable shield wire should be preferably attached to an
earth ground, or a signal ground connection at the panel, or a
power supply end of the cable. This configuration is best for
shielding the reader cable from external interference.
